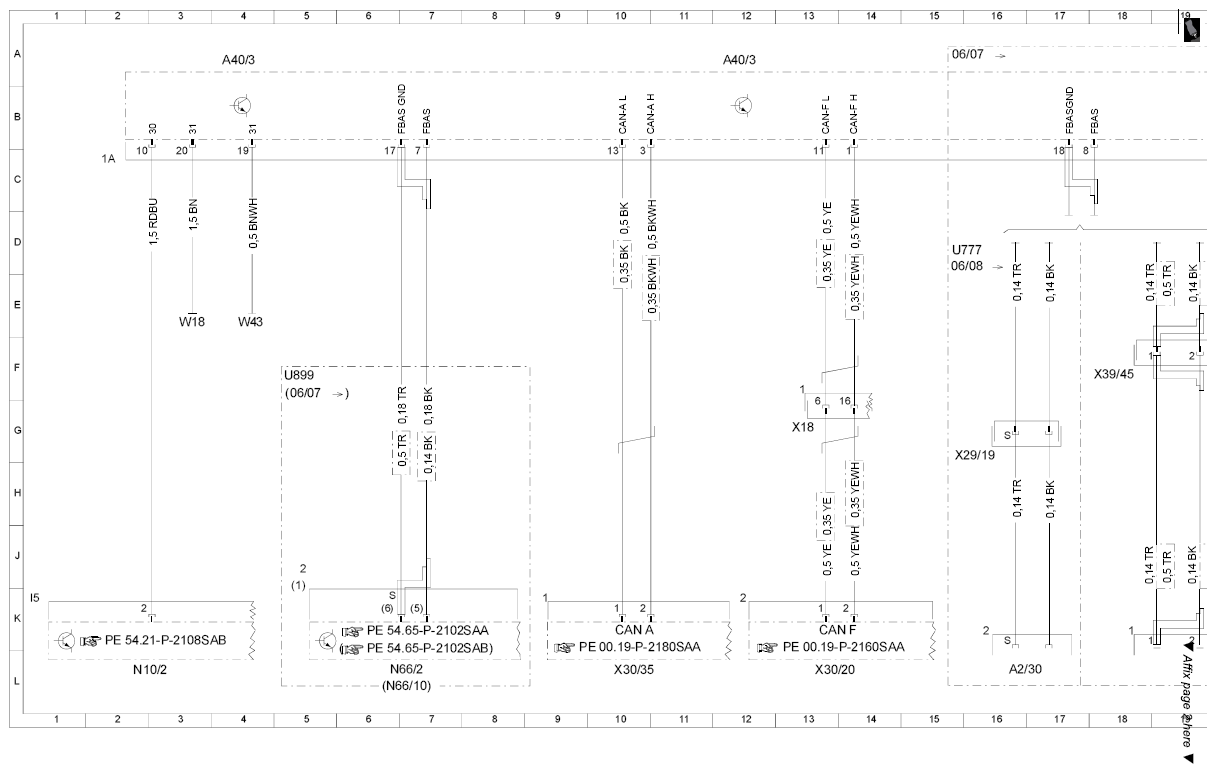

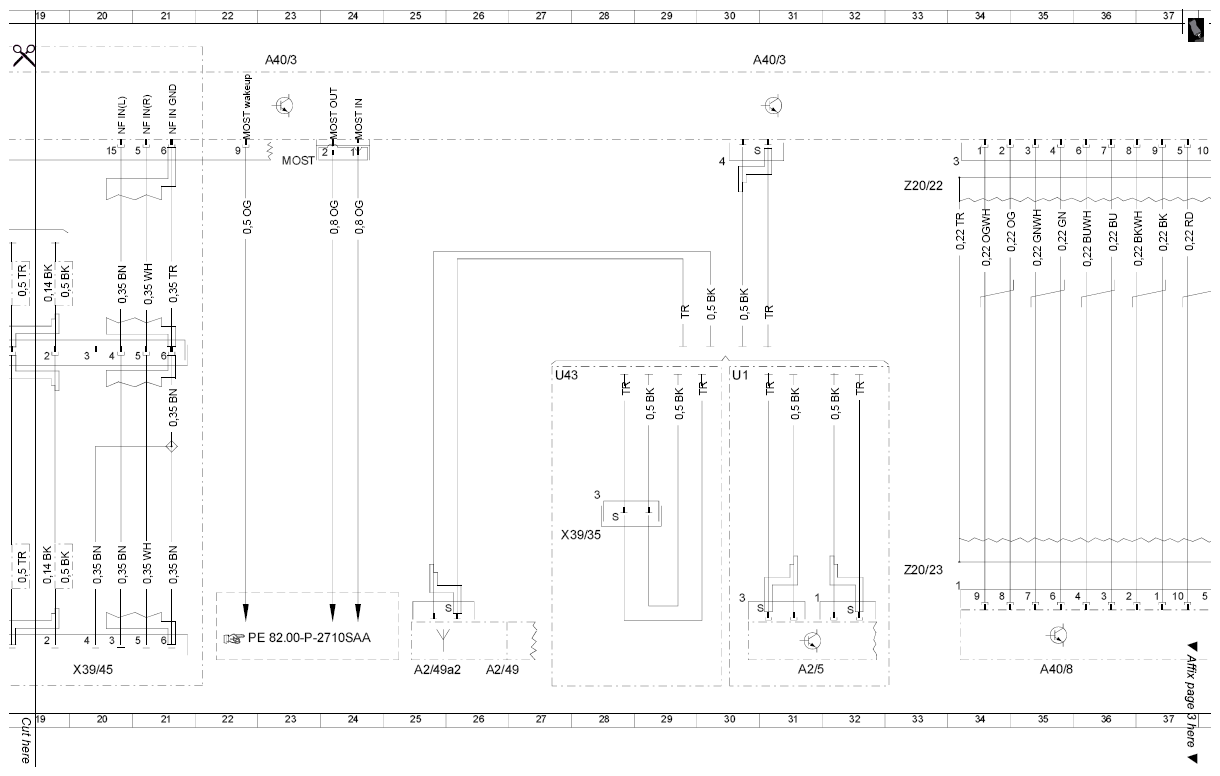

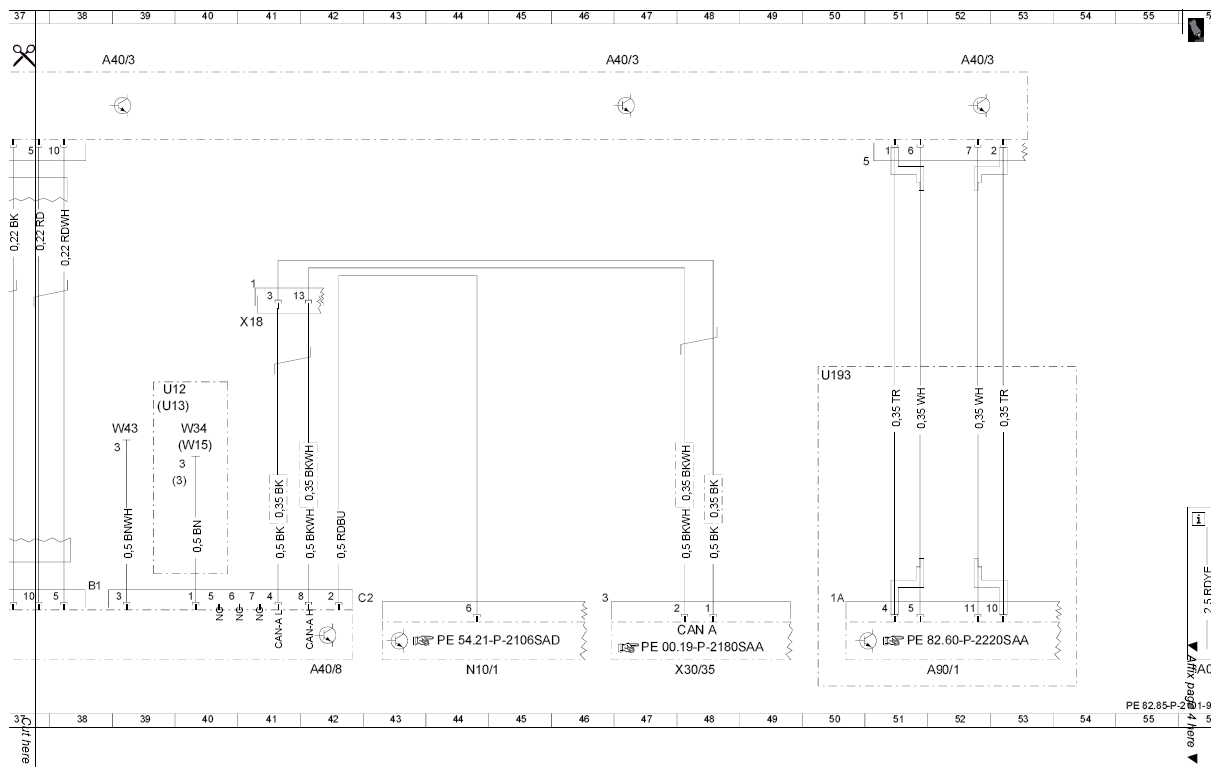

| A0 |
Explanation of color codes |
56 L |
| A2/49 |
Cellular telephone and GPS roof antenna |
23 L |
| A2/49a2 |
GPS antenna |
22 L |
| A2/5 |
Antenna splitter |
28 L |
| A40/3 |
COMAND control unit |
4A |
| A40/3 |
COMAND control unit |
12A |
| A40/3 |
COMAND control unit |
20 A |
| A40/3 |
COMAND control unit |
28 A |
| A40/3 |
COMAND control unit |
36 A |
| A40/3 |
COMAND control unit |
44 A |
| A40/3 |
COMAND control unit |
49 A |
| A40/8 |
COMAND display |
32 L |
| A40/8 |
COMAND display |
39 L |
| A90/1 |
TV combination tuner (analog/digital) |
49 L |
| N10/1 |
Front SAM control module with fuse and relay module |
41 L |
| N10/2 |
Rear SAM control module with fuse and relay module |
2L |
| N66/10 |
Backup camera voltage supply module |
6L |
| N66/2 |
Reverse camera control module |
6L |
| U1 |
Valid for {{USA}} |
27 F |
| U12 |
Valid for left-hand steering |
37 G |
| U13 |
Valid for right-hand steering |
37 G |
| U193 |
Valid for TV and Video |
47 F |
| U43 |
Valid for ECE |
25 F |
| U899 |
Valid for backup camera |
5F |
| W15 |
Ground (electronics power ground) |
37 G |
| W18 |
Ground (left front seat crossmember) |
3E |
| W34 |
Ground (left footwell) |
37 G |
| W43 |
Ground (reference, image transmission systems) |
4E |
| W43 |
Ground (reference, image transmission systems) |
36 G |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
13E |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
38 G |
| X30/20 |
Central CAN voltage distributor connector |
13L |
| X30/35 |
Telematics CAN voltage distributor connector |
10L |
| X30/35 |
Telematics CAN voltage distributor connector |
45 L |
| X39/35 |
GPS antenna connector |
25 J |
| X39/45 |
Walkman separation point |
15E |
| X39/45 |
Walkman separation point |
17L |
| Z20/22 |
Cable end not insulated, placed inside insulated tubing |
30 C |
| Z20/23 |
Cable end not insulated, placed inside insulated tubing |
30 J |
