Cockpit Management and Data System (COMAND) control unit wiring Schematic - PE82.85-P-2101-97SAC

Code:	Designation:	Position:
A0	Color code key	40L
A2/12	Rear window antenna amplifier module	5L
A2/12	Rear window antenna amplifier module	38L
A2/37	VICS control unit	31L
A2/49a2	GPS antenna	35L
A2/79	TV antenna selector	11L
A2/79	TV antenna selector	16L
A2/91	Bluetooth antenna	34L
A2/94	Electronic toll collection (ETC) antenna	27L
A40/3	COMAND control unit	20A
A40/3	COMAND control unit	28A
A40/3	COMAND control unit	35A
A50/3	Electronic toll collection (ETC) control unit	24L
F1/7	Left instrument panel fuse box	29L
F1/7f106	Fuse 106	28K
U12	Valid for left-hand drive vehicles	33G
U12	Valid for left-hand drive vehicles	23E
U13	Valid for right-hand drive vehicles	33G
W34	Ground (left footwell)	23E
X1/16	Roof antenna connector	15E
X1/16	Roof antenna connector	35F
X1/16	Roof antenna connector	37F
Z6/30	Circuit 31 connector sleeve	22H
Z7/40	Tml. 30 connector sleeve	16G

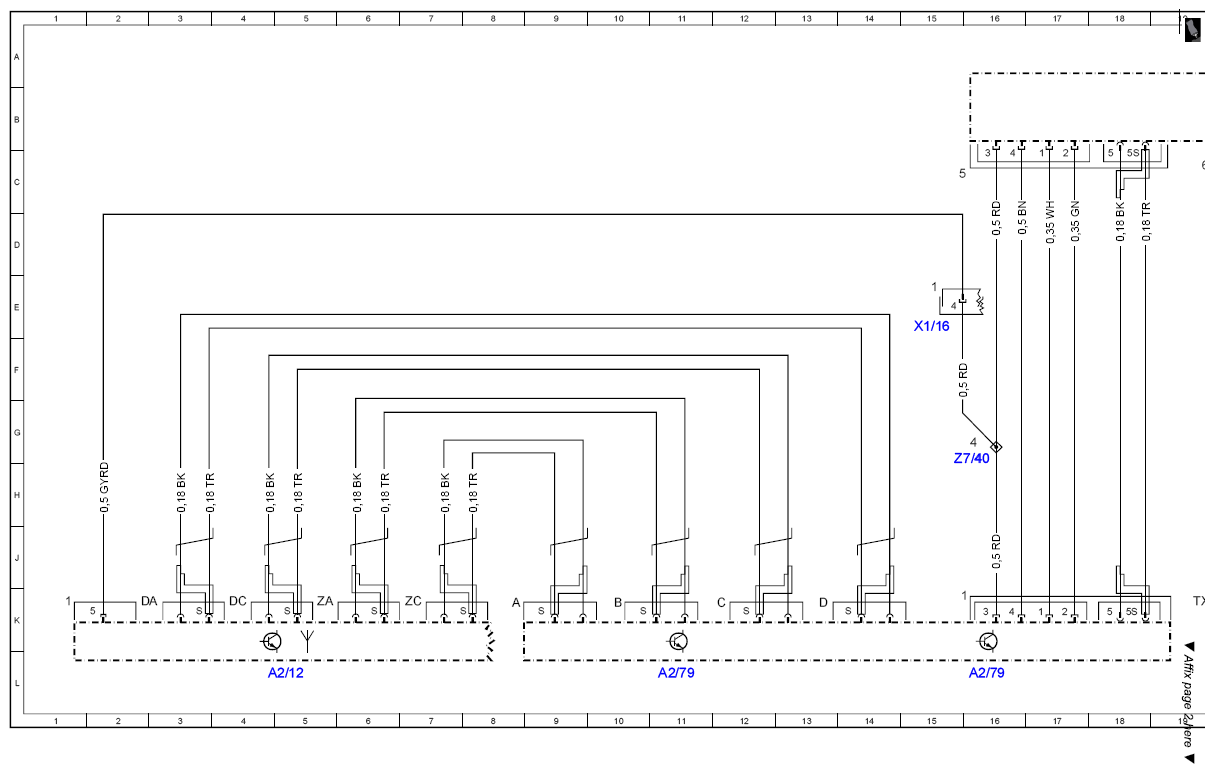

Fig 1: Cockpit Management And Data System (COMAND) Control Unit Wiring Schematic (1 Of 3)

Courtesy of MERCEDES-BENZ USA

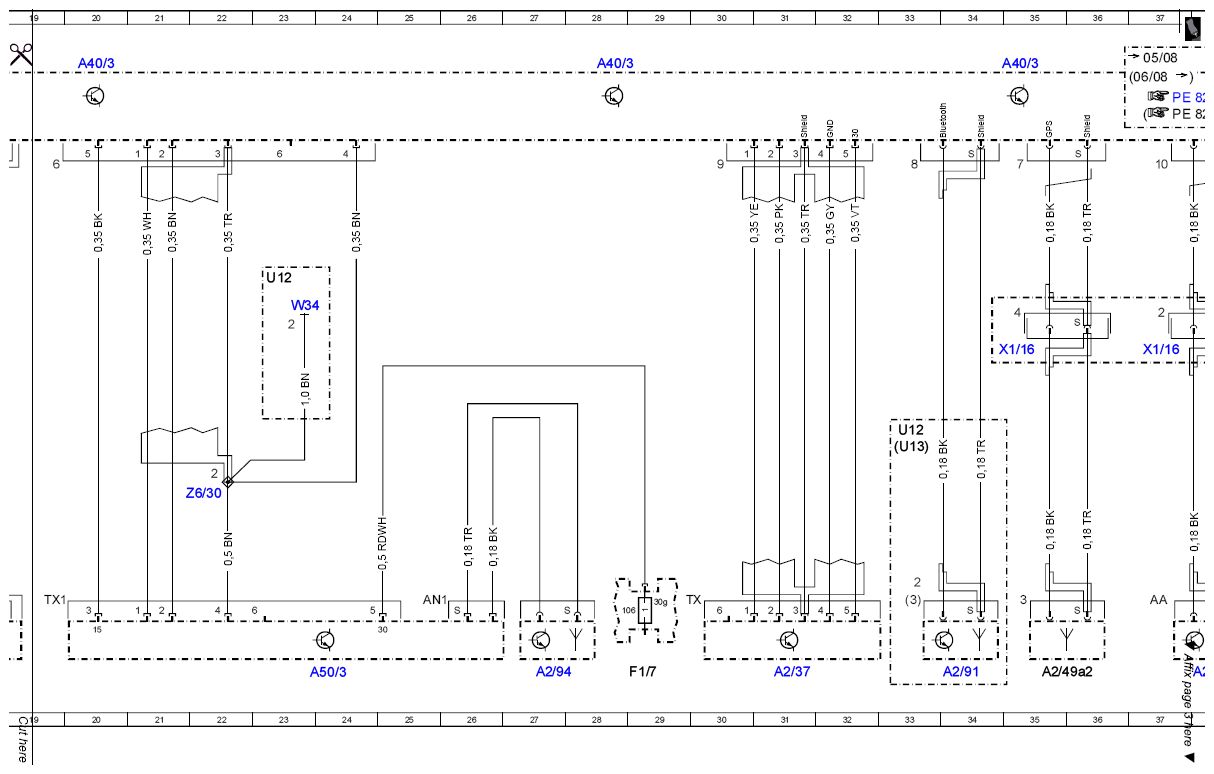

Fig 2: Cockpit Management And Data System (COMAND) Control Unit Wiring Schematic (2 Of 3)

Courtesy of MERCEDES-BENZ USA

Fig 3: Cockpit Management And Data System (COMAND) Control Unit Wiring Schematic (3 Of 3)

Courtesy of MERCEDES-BENZ USA
