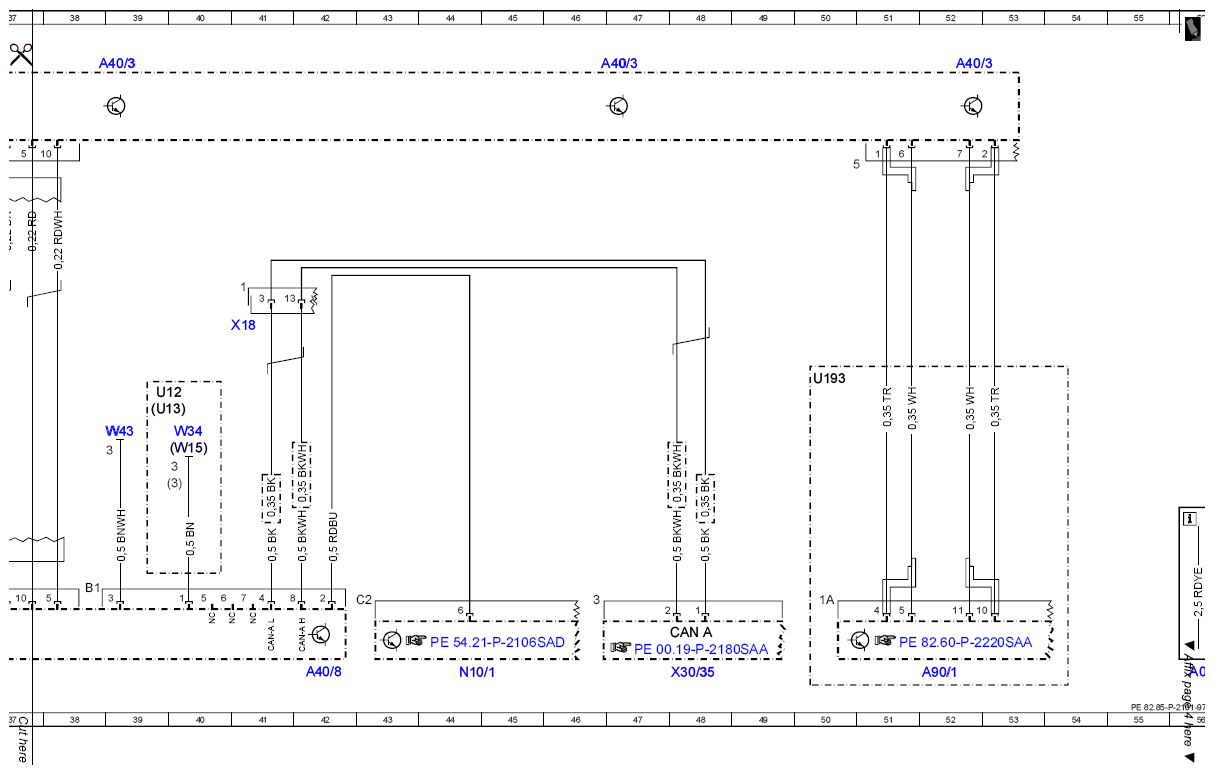

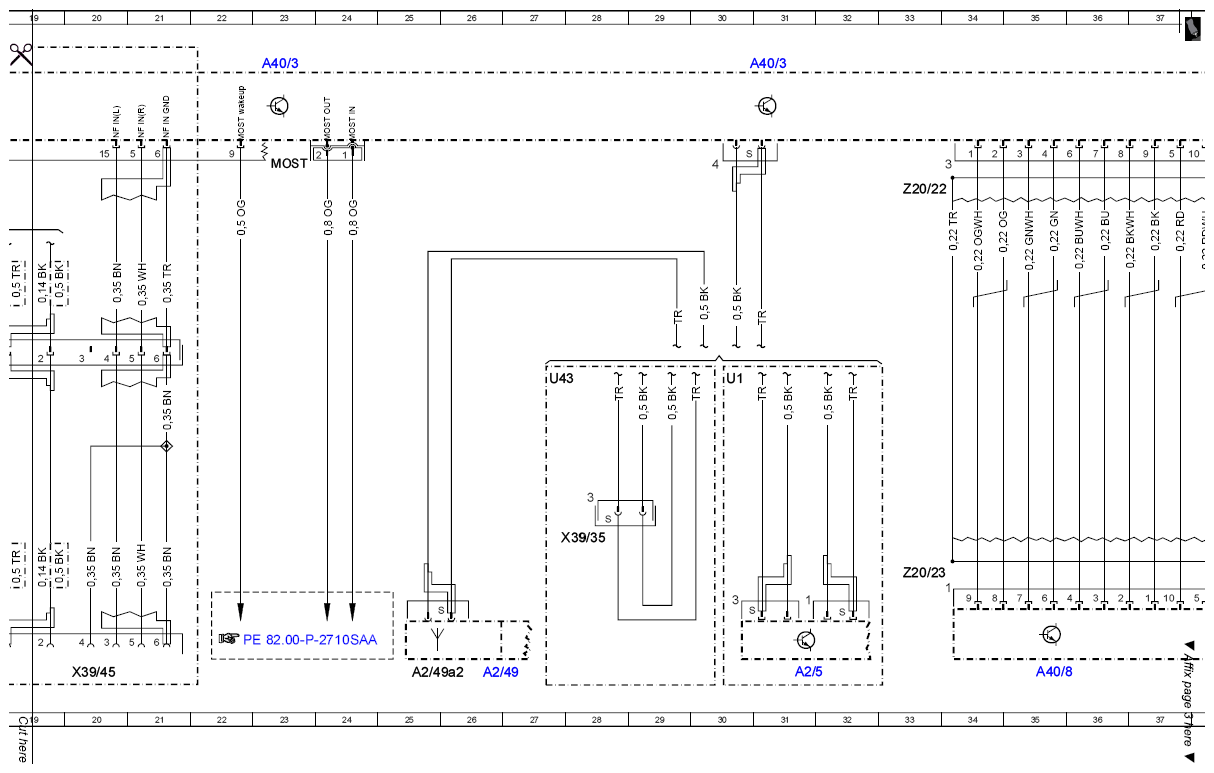

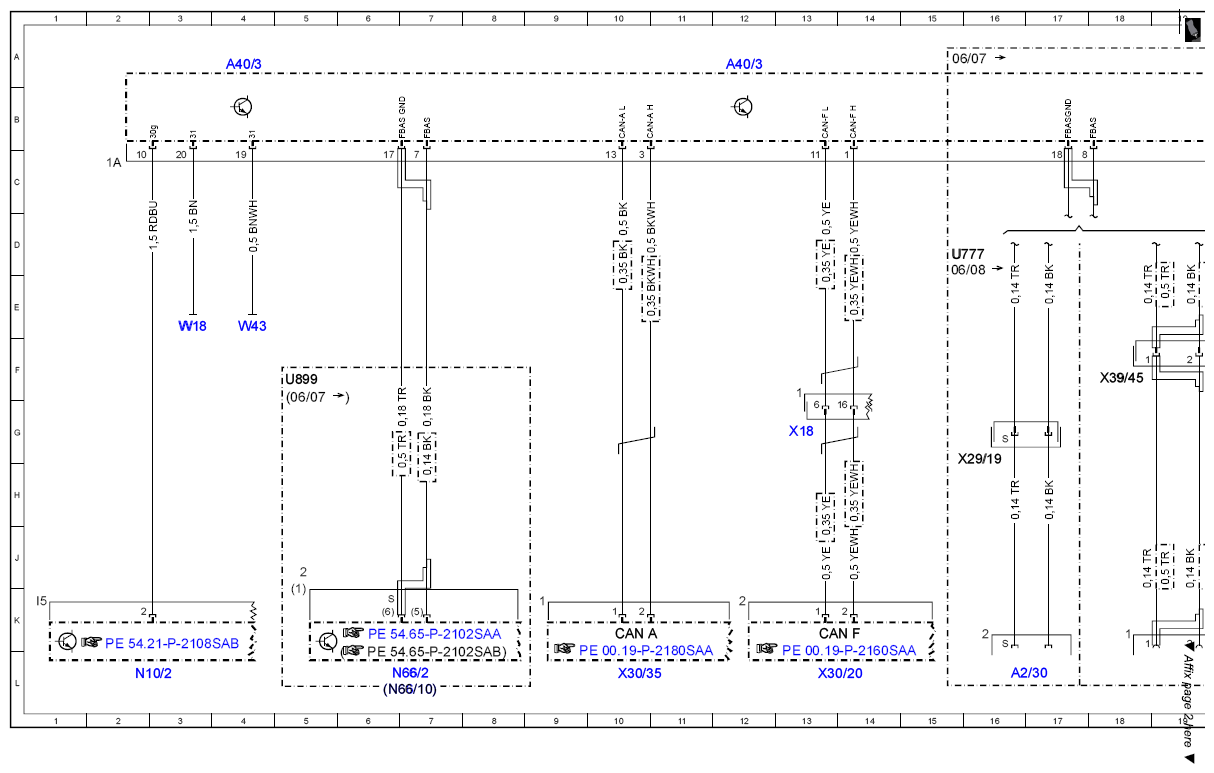

| A0 |
Color code key |
56L |
| A2/30 |
Navigation processor |
16L |
| A2/49 |
Telephone and GPS roof antenna |
26L |
| A2/49a2 |
GPS antenna |
25L |
| A2/5 |
Antenna splitter |
31L |
| A40/3 |
COMAND control unit |
4A |
| A40/3 |
COMAND control unit |
12A |
| A40/3 |
COMAND control unit |
23A |
| A40/3 |
COMAND control unit |
31A |
| A40/3 |
COMAND control unit |
39A |
| A40/3 |
COMAND control unit |
47A |
| A40/3 |
COMAND control unit |
52A |
| A40/8 |
COMAND display |
35L |
| A40/8 |
COMAND display |
42L |
| A90/1 |
TV combination tuner (analog/digital) |
52L |
| CAN A |
Telematics CAN |
10K |
| CAN A |
Telematics CAN |
48K |
| CAN F |
Central CAN |
13K |
| MOST |
Media Oriented System Transport |
23C |
| N10/1 |
Front SAM control unit with fuse and relay module |
44L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
2L |
| N66/10 |
Backup camera voltage supply module |
6L |
| N66/2 |
Backup camera control unit |
7L |
| U1 |
Valid for {{USA}} |
30F |
| U12 |
Valid for left-hand drive vehicles |
39F |
| U13 |
Valid for right-hand drive vehicles |
39G |
| U193 |
Valid for TV and Video |
50F |
| U43 |
Valid for ECE |
27F |
| U777 |
Valid for navigation |
15D |
| U899 |
Valid for backup camera |
5F |
| W15 |
Power ground (electronics) |
40G |
| W18 |
Ground (left front seat crossmember) |
3E |
| W34 |
Ground (left footwell) |
40G |
| W43 |
Ground (reference, image transmission systems) |
4E |
| W43 |
Ground (reference, image transmission systems) |
39G |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
13G |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
41E |
| X29/19 |
F-BAS signal connector (COMAND to navigation/China) |
16H |
| X30/20 |
Central CAN voltage distributor connector |
13L |
| X30/35 |
Telematics CAN voltage distributor connector |
10L |
| X30/35 |
Telematics CAN voltage distributor connector |
48L |
| X39/35 |
GPS antenna connector |
28J |
| X39/45 |
Walkman separation point |
18F |
| X39/45 |
Walkman separation point |
20L |
| Z20/22 |
Cable end insulation not stripped, placed inside insulated tubing |
33C |
| Z20/23 |
Cable end insulation not stripped, placed inside insulated tubing |
33J |
