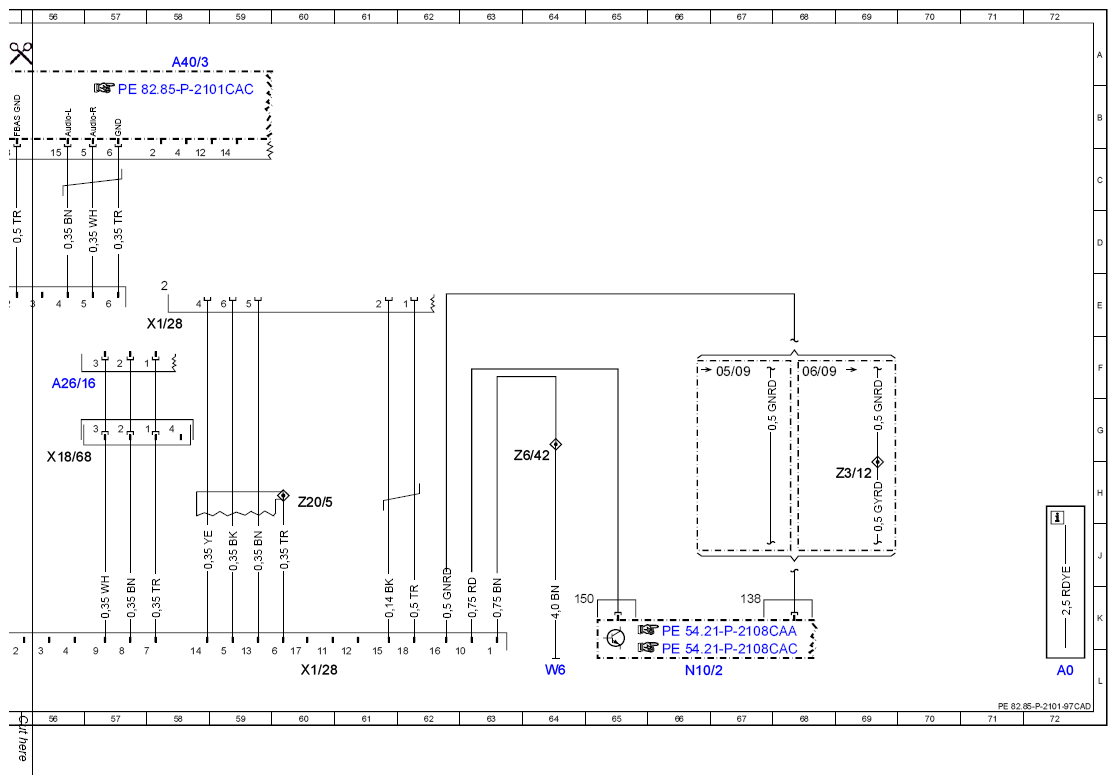

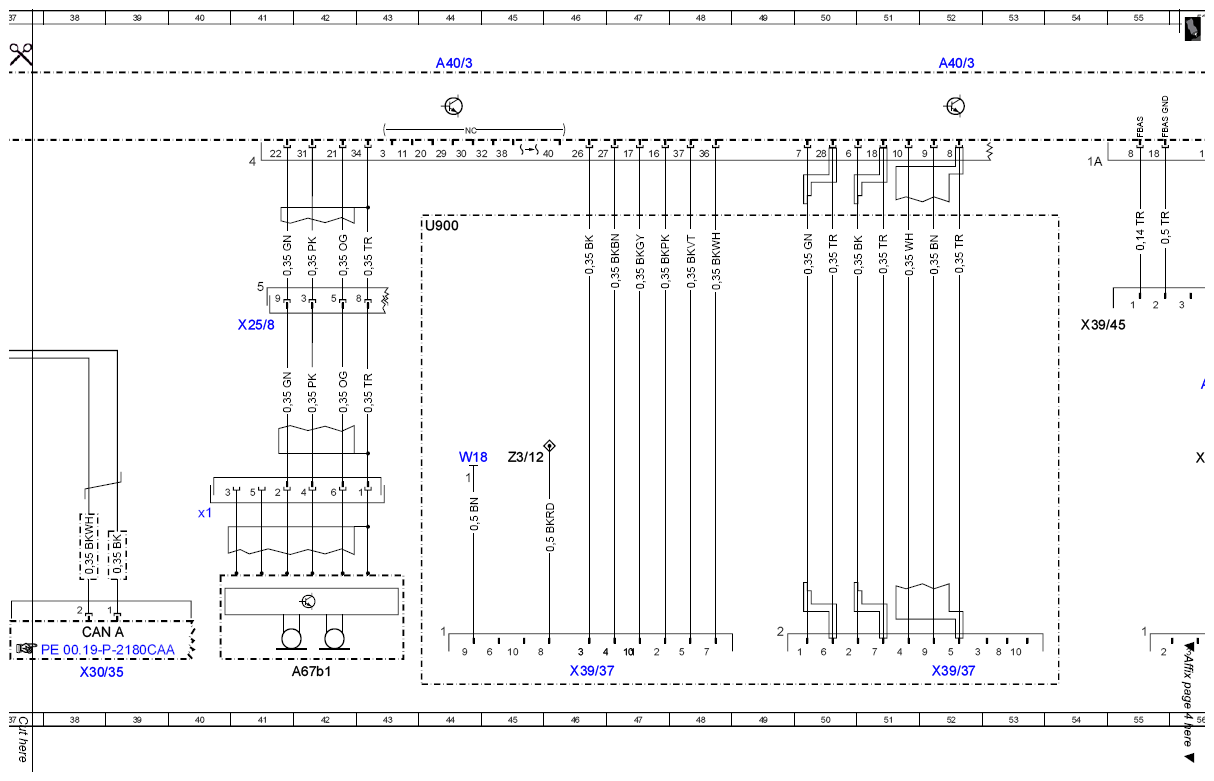

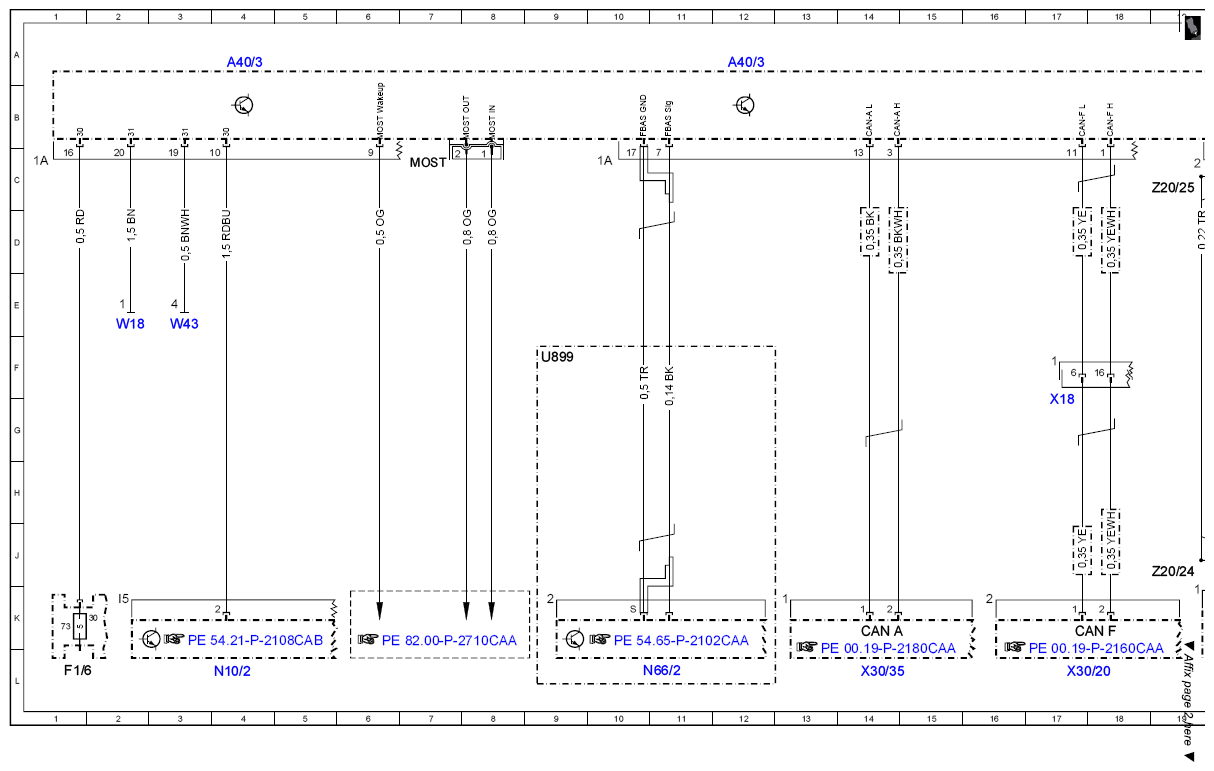

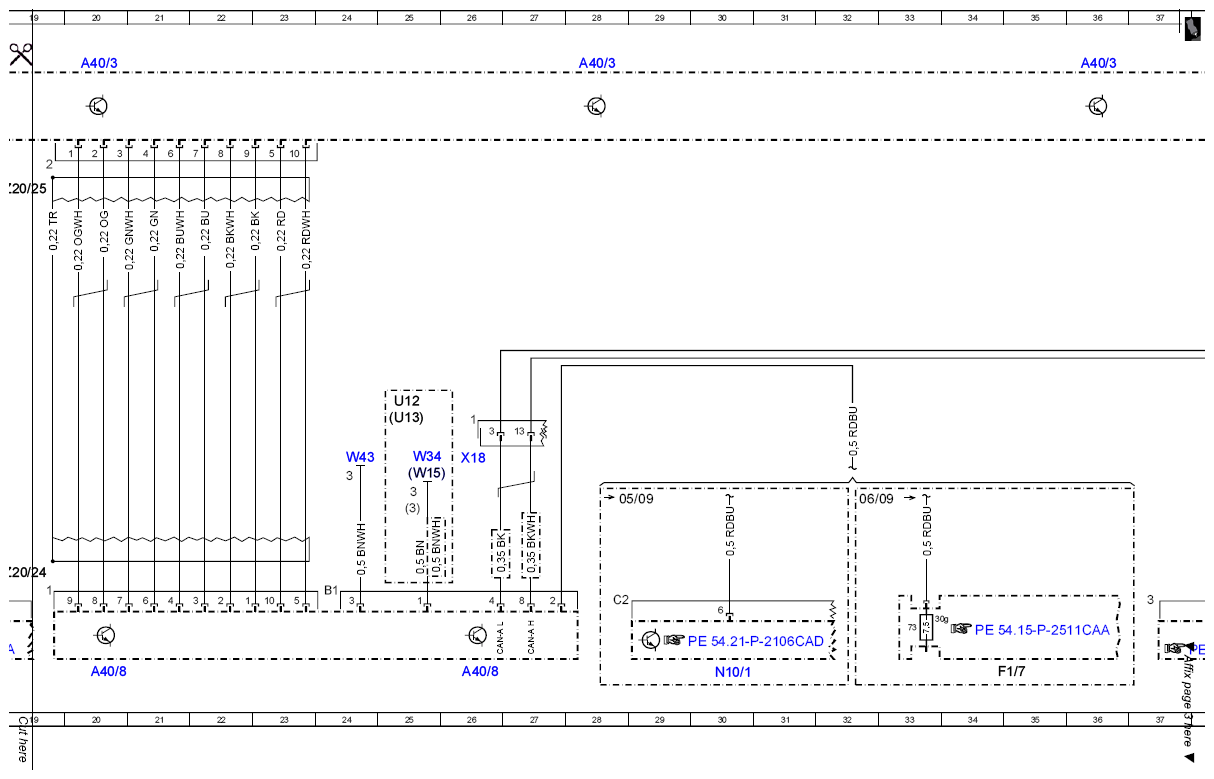

| A0 |
Color code key |
72L |
| A26/16 |
IR receiver unit, Head Unit |
56F |
| A40/3 |
COMAND control unit |
4A |
| A40/3 |
COMAND control unit |
12A |
| A40/3 |
COMAND control unit |
20A |
| A40/3 |
COMAND control unit |
28A |
| A40/3 |
COMAND control unit |
36A |
| A40/3 |
COMAND control unit |
44A |
| A40/3 |
COMAND control unit |
52A |
| A40/3 |
COMAND control unit |
58A |
| A40/8 |
COMAND display |
20L |
| A40/8 |
COMAND display |
26L |
| A67b1 |
Hands-free system microphone group |
42L |
| A67b1x1 |
Hands-free system microphone group connector |
40H |
| CAN A |
Telematics CAN |
14K |
| CAN A |
Telematics CAN |
38K |
| CAN F |
Central CAN |
17K |
| F1/6 |
Right instrument panel fuse box |
1L |
| F1/6f73 |
Fuse 73 |
1K |
| F1/7 |
Left instrument panel fuse box |
35L |
| F1/7f99 |
Fuse 99 |
33K |
| MOST |
Media Oriented System Transport |
7C |
| N10/1 |
Front SAM control unit with fuse and relay module |
30L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
4L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
66L |
| N66/2 |
Backup camera control unit |
11L |
| U12 |
Valid for left-hand drive vehicles |
25G |
| U13 |
Valid for right-hand drive vehicles |
25G |
| U899 |
Valid for backup camera |
9F |
| U900 |
Further line routing not clarified at time of publication |
44D |
| W15 |
Power ground (electronics) |
25H |
| W18 |
Ground (left front seat crossmember) |
2E |
| W18 |
Ground (left front seat crossmember) |
44G |
| W34 |
Ground (left footwell) |
25G |
| W43 |
Ground (reference, image transmission systems) |
24G |
| W43 |
Ground (reference, image transmission systems) |
3E |
| W6 |
Ground (left wheelhouse in luggage compartment) |
64L |
| X1/28 |
TV/tuner connector |
60L |
| X1/28 |
TV/tuner connector |
58E |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
17G |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
26H |
| X18/68 |
External navigation infrared receiver connector |
56H |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
41E |
| X30/20 |
Central CAN voltage distributor connector |
17L |
| X30/35 |
Telematics CAN voltage distributor connector |
14L |
| X30/35 |
Telematics CAN voltage distributor connector |
38L |
| X39/37 |
CTEL separation point |
46L |
| X39/37 |
CTEL separation point |
52L |
| X39/45 |
Walkman separation point |
54E |
| Z20/24 |
Cable end insulation not stripped, placed inside insulated tubing |
19J |
| Z20/25 |
Cable end insulation not stripped, placed inside insulated tubing |
19C |
| Z20/5 |
Shielding placed inside insulating tubing |
60H |
| Z3/12 |
Circuit 15R connector sleeve |
45G |
| Z3/12 |
Circuit 15R connector sleeve |
69H |
| Z6/42 |
Ground W6 connector sleeve |
64G |
