| 1 |
Rain/light sensor, status |
19G |
| 10 |
Footwell lamp, actuation |
4K |
| 10 |
Footwell lamp, actuation |
20L |
| 11 |
OFF delay time, status |
27G |
| 11 |
OFF delay time, status |
20F |
| 12 |
Door rotary tumbler switch, status |
16D |
| 12 |
Door rotary tumbler switch, status |
7B |
| 12 |
Door rotary tumbler switch, status |
7F |
| 12 |
Door rotary tumbler switch, status |
16E |
| 13 |
Entrance/exit lamp, request |
6D |
| 13 |
Entrance/exit lamp, request |
6E |
| 13 |
Entrance/exit lamp, request |
8K |
| 14 |
Entrance/exit lamp, actuation |
3B |
| 14 |
Entrance/exit lamp, actuation |
3F |
| 15 |
Door entrance/exit and warning lamp, actuation |
3D |
| 15 |
Door entrance/exit and warning lamp, actuation |
3H |
| 16 |
Trunk lid rotary tumbler microswitch, status |
13J |
| 17 |
Trunk illumination, actuation |
14K |
| 18 |
Ambient and warning lamp, actuation |
14L |
| 2 |
Circuit 15, status |
18C |
| 3 |
Central locking (CL[ZV]), status |
18C |
| 4 |
ATA [EDW] alarm, status |
15G |
| 5 |
Crash, signal |
20F |
| 5 |
Crash, signal |
28D |
| 6 |
Hazard warning flasher button, status |
18G |
| 6 |
Hazard warning flasher button, status |
19J |
| 7 |
Rear compartment lamp, actuation |
22E |
| 8 |
Reading lamp, actuation |
21D |
| 9 |
Footwell illumination, request |
18J |
| A40/9 |
Front central operating unit |
27J |
| A40/9s3 |
Hazard warning system button |
23K |

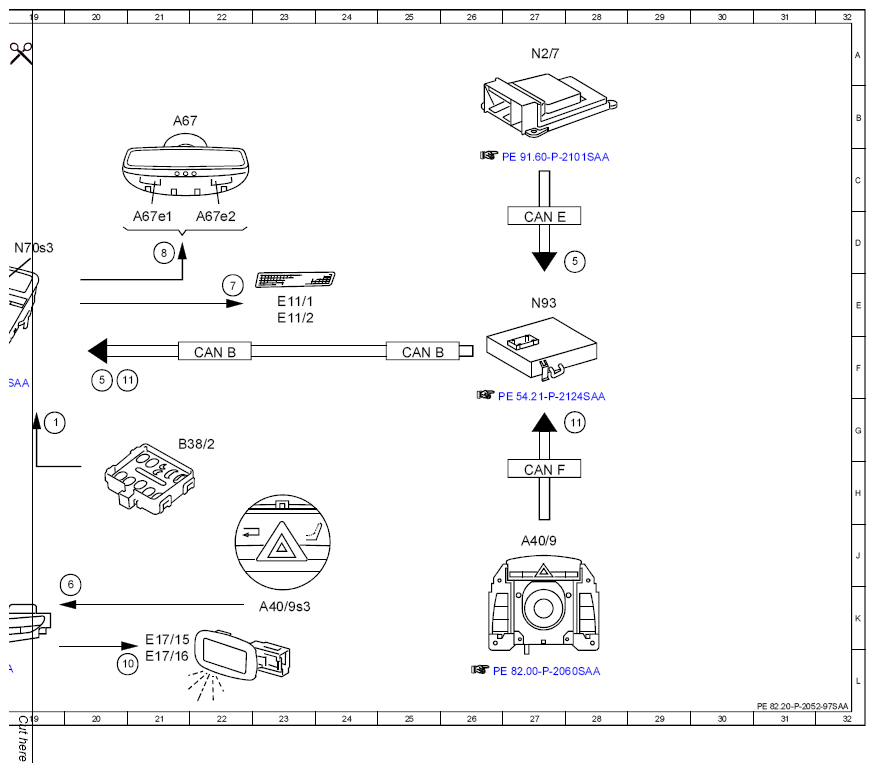

| A67 |
Inside rearview mirror unit |
21B |
| A67e1 |
Left reading lamp |
21C |
| A67e2 |
Right reading lamp |
22C |
| A8/1 |
Transmitter key |
13B |

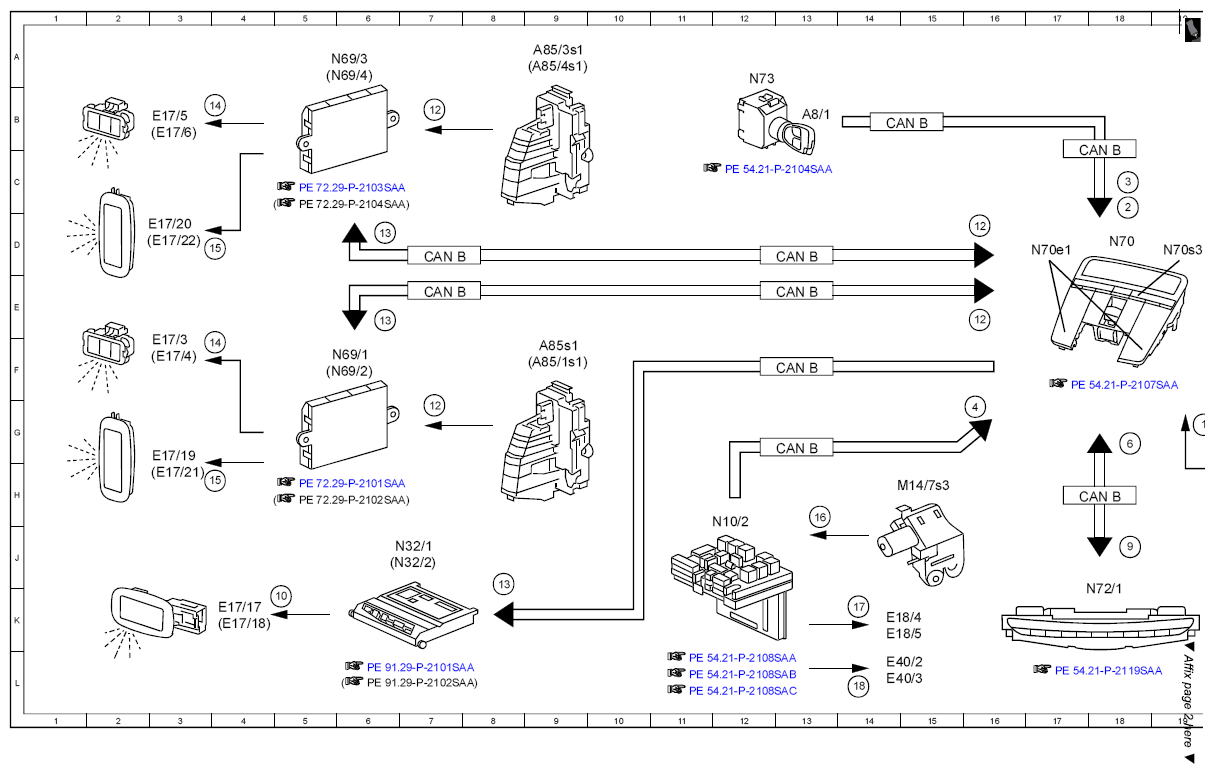

| A85/1s1 |
Right front rotary tumbler switch |
9F |
| A85/3s1 |
Left rear rotary tumbler switch |
9A |
| A85/4s1 |
Right rear rotary tumbler switch |
9A |
| A85s1 |
Left front rotary tumbler switch |
9F |
| B38/2 |
Rain/light sensor |
21G |
| CAN B |
Interior CAN |
13G |
| CAN B |
Interior CAN |
18H |
| CAN B |
Interior CAN |
13F |
| CAN B |
Interior CAN |
13E |
| CAN B |
Interior CAN |
13D |
| CAN B |
Interior CAN |
21F |
| CAN B |
Interior CAN |
7D |
| CAN B |
Interior CAN |
7E |
| CAN B |
Interior CAN |
17C |
| CAN B |
Interior CAN |
14B |
| CAN B |
Interior CAN |
25F |
| CAN E |
Chassis CAN |
27D |
| CAN F |
Central CAN |
27H |
| E11/1 |
Left rear dome lamp |
23E |
| E11/2 |
Right rear dome lamp |
23E |
| E17/15 |
Right front footwell lamp |
21K |
| E17/16 |
Left front footwell lamp |
21L |
| E17/17 |
Right rear footwell lamp |
4K |
| E17/18 |
Left rear footwell lamp |
4K |
| E17/19 |
Front left door warning lamp |
3G |
| E17/20 |
Rear left door warning lamp |
3D |
| E17/21 |
Front right door warning lamp |
3H |
| E17/22 |
Rear right door warning lamp |
3D |
| E17/3 |
Left front door entrance/exit lamp |
3E |
| E17/4 |
Right front door entrance/exit lamp |
3F |
| E17/5 |
Left rear door entrance/exit lamp |
3B |
| E17/6 |
Right rear door entrance/exit lamp |
3B |
| E18/4 |
Right luggage compartment lamp |
14K |
| E18/5 |
Left luggage compartment lamp |
14K |
| E40/2 |
Left trunk lid ambient and warning lamp |
14L |
| E40/3 |
Right trunk lid ambient and warning lamp |
14L |
| M14/7s3 |
Trunk lid rotary tumbler microswitch |
15H |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12J |
| N2/7 |
Restraint systems control unit |
27A |
| N32/1 |
Left front seat control unit |
7J |
| N32/2 |
Right front seat control unit |
7J |
| N69/1 |
Left front door control unit |
5F |
| N69/2 |
Right front door control unit |
5F |
| N69/3 |
Rear left door control unit |
5A |
| N69/4 |
Right rear door control unit |
5A |
| N70 |
Overhead control panel control unit |
18D |
| N70e1 |
Front dome lamp |
17D |
| N70s3 |
Door contact ON and OFF switch |
19D |
| N72/1 |
Upper control panel control unit |
18J |
| N73 |
EIS [EZS] control unit |
12A |
| N93 |
Central gateway control unit |
27E |
