Speed Limit Assist, location of components - GF54.30-P-0012-01LE

Shown on model 221

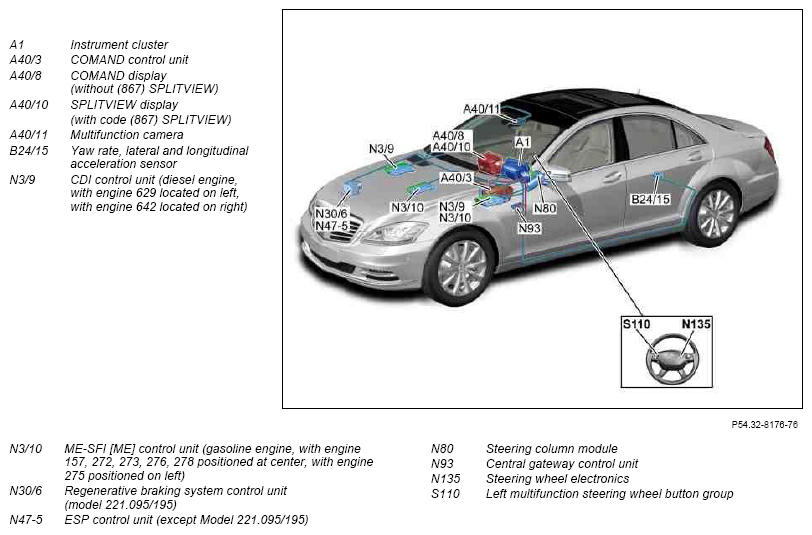

Fig 1: Locating Speed Limit Assist Components

G07593821

Courtesy of MERCEDES-BENZ USA
