Night vision assist, networking of components - GF54.30-P-0005-02SX

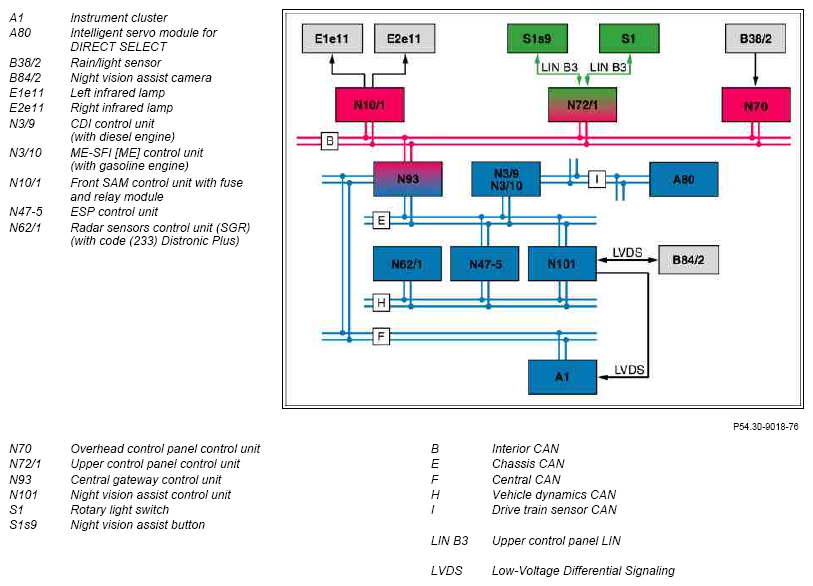

Fig 1: Night Vision Assist Components Networking Diagram

G07593811

Courtesy of MERCEDES-BENZ USA
