Attention assist, location of components - GF54.30-P-0009-02LE

Illustrated on model 221.0

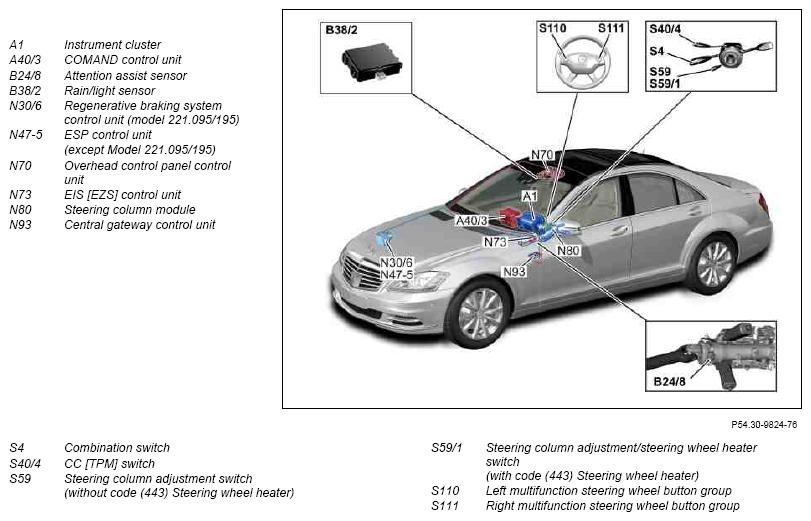

Fig 1: Locating Attention Assist Components

G07593817

Courtesy of MERCEDES-BENZ USA
