Prepare rear crossmember for installation. - AR64.20-P-1100-02SX

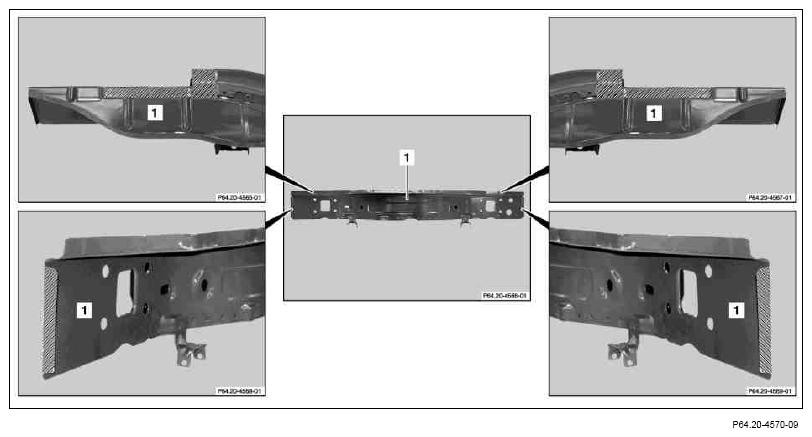

Fig 1: Identifying Rear Crossmember Mating Surfaces (1 Of 3)

Courtesy of MERCEDES-BENZ USA

1. Grind mating surfaces on rear crossmember (1) down to bare metal in cross-hatched areas with stainless steel round wire brush.

Observe preliminary treatment of surfaces to be bonded.

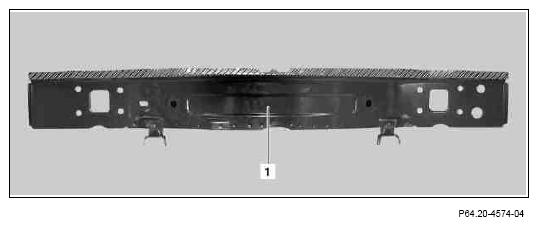

Fig 2: Identifying Rear Crossmember Mating Surfaces (2 Of 3)
Courtesy of MERCEDES-BENZ USA
2. Grind mating surfaces on rear crossmember (1) down to bare metal in cross-hatched areas with stainless steel round wire brush.

Observe preliminary treatment of surfaces to be bonded.

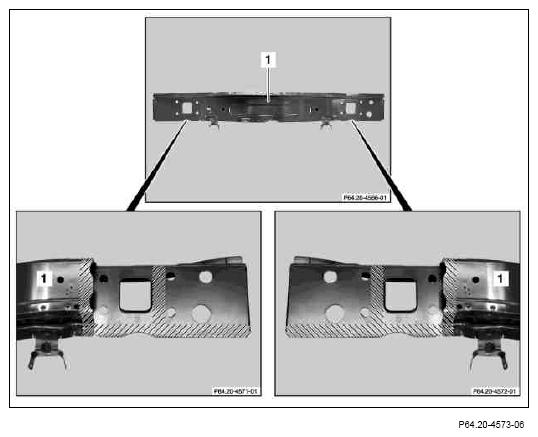

Fig 3: Identifying Rear Crossmember Mating Surfaces (3 Of 3)
Courtesy of MERCEDES-BENZ USA
3. Grind mating surfaces on rear crossmember (1) down to bare metal in cross-hatched areas with stainless steel round wire brush.

Observe preliminary treatment of surfaces to be bonded.
