Mount stamping guide - AR60.00-P-0800-01SX

Fig 1: Identifying Stamping Guide (171 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Parts for stamping guide

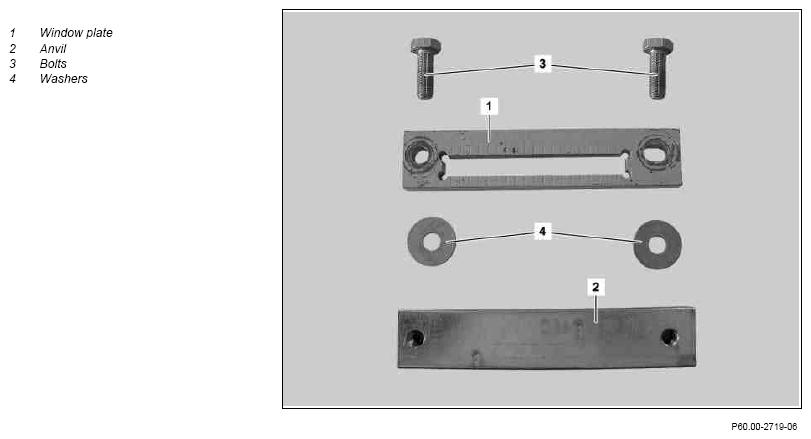

Fig 2: Identifying Window Plate, Anvil, Washers And Bolts

Courtesy of MERCEDES-BENZ USA

1. Drill out rear partition wall (5) in increments to diameter of 10 mm at punch marks provided at the factory (area A).
2. Debur holes on both sides.
3. Remove drilling shavings with wet/dry vacuum cleaner.

   Illustrated on model 221

   Fig 3: Identifying Rear Partition Wall & Punch Marks

   Courtesy of MERCEDES-BENZ USA

   Illustrated on model 221

   The required position for the punch field (B) or the reserve field (C) can be determined by turning the window plate (1)

   Fig 4: Fastening Window Plate To Rear Partition Wall

   Courtesy of MERCEDES-BENZ USA
4. Fasten window plate (1) to rear partition wall (5) with bolts (3), anvil (2) and washers (4) in the position for the punch field (B).

   Install washers (4) between window plate (1) and rear partition wall (5).
