Gap dimensions on hoods, doors and lids - AR60.00-P-0700-01SX
TEST VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 221 | |||
|---|---|---|---|---|---|

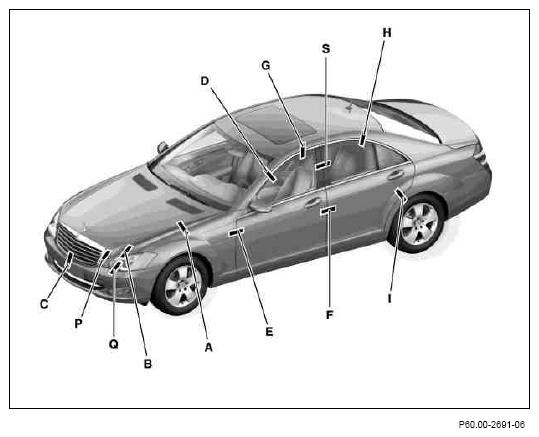

| BE60.00-P-1001-01R | Gap dimension | Engine hood to fender | Dimension "A" | mm | 3.5 (±0.5) |
| Engine hood to headlamp | Dimension "B" | mm | 3.5 (±0.5) | ||
| Radiator grille/bumper | Dimension "C" | mm | 5 (±1) | ||
| Engine hood to bumper | Dimension "P" | mm | 5 (±1.5) | ||
| Bumper to /headlamps | Dimension "Q" | mm | 3.5 (±0.5) | ||
| Bumper to fender | Dimension "R" | mm | 3.5 (±0.5) | ||
| See picture in | AR60.00-P-0700-01S X | ||||
| BE60.00-P-1002-01R | Gap dimension | Front door to A-pillar | Dimension "D" | mm | 4.5 (±0.5) |
| Front door to fender | Dimension "E" | mm | 4 (±0.5) | ||
| Front door to rear door | Dimension "F" | mm | 4.5 (±0.5) | ||
| Trim strip at front door to roof frame | Dimension "G" | mm | 4.5 (±0.5) | ||
| Trim strip at rear door to roof frame | Dimension "H" | mm | 4.5 (±0.5) | ||
| Rear door to side section, bottom | Dimension "I" | mm | 4.5 (±0.5) | ||
| Front door cover to rear door cover | Dimension "S" | mm | 4.5 (±0.5) | ||
| See picture in | AR60.00-P-0700-01S X | ||||

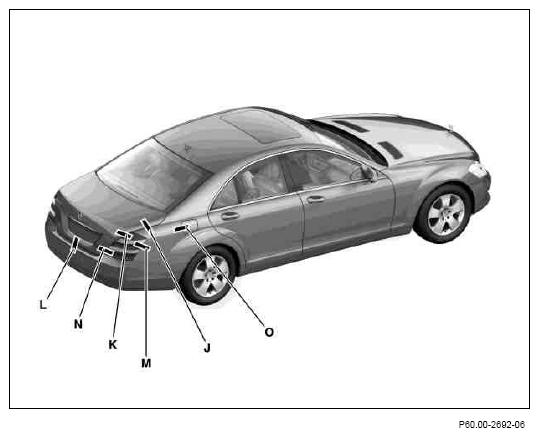

| BE60.00-P-1003-01R | Gap dimension | Trunk lid to rear fender, top | Dimension "J" | mm | 4 (±0.5) |
| Trunk lid to taillamp | Dimension "K" | mm | 4 (±0.5) | ||
| Trunk lid to bumper | Dimension "L" | mm | 5.5 (±1.5) | ||
| Rear fender to taillamp | Dimension "M" | mm | 2.5 (±0.5) | ||
| Trunk lid cover to taillamp | Dimension "N" | mm | 4 (±0.5) | ||
| See picture in | AR60.00-P-0700-01S X | ||||
| BE60.00-P-1004-01R | Gap dimension | Fuel filler flap | Dimension "O" | mm | 3.5 (±0.5) |
| See picture in | AR60.00-P-0700-01S X | ||||
Adjust hoods, doors and lids as shown in drawing. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 0.5 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
