Condition brake shoes of electric parking brake - AR42.20-P-0530-02SX

MODIFICATION NOTES

27.3.06

If a roller brake test stand is not available, condition the parking brake with STAR DIAGNOSIS, note added

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00

WORKSHOP EQUIPMENT

WE58.40-Z-1002-07A

Roller brake test stand

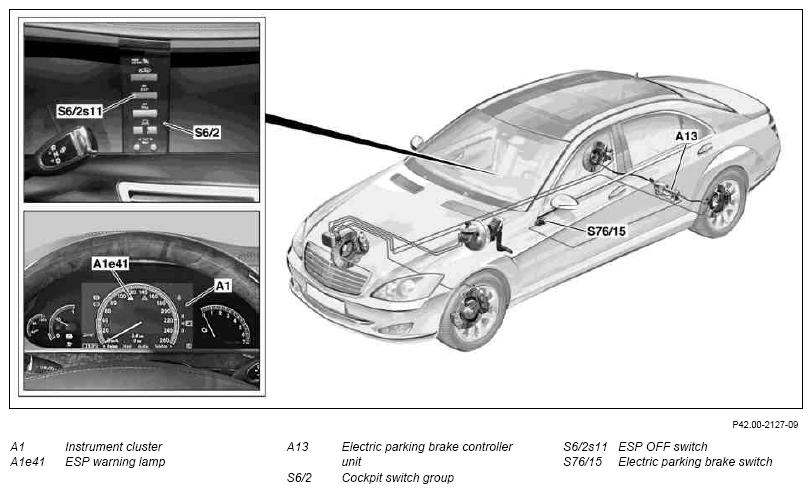

Fig 1: Identifying Electric Parking Brake Components

Courtesy of MERCEDES-BENZ USA

Switch off the Electronic Stability Program ESP; to do this, press the ESP Off switch (S6/2s11) in the cockpit switch group (S6/2).
In order to avoid an active brake intervention of the Electronic Stability Program ESP.

ESP warning lamp (A1e41) in instrument cluster (A1) must light up.
Drive the vehicle with the rear axle onto the roller brake test stand and shift the transmission into position "N" with the engine running
Have the wheels of the rear axle driven by the roller brake test stand for at least 10 seconds. In order to avoid damage the brake shoes are then applied with a delay.
Press electric parking brake switch (S76/15) once briefly.
The brake shoes are brought into contact with the parking brake drums within 8 seconds, the roller brake test stand switches off.
Loosen parking brake by pulling electric parking brake switch (S76/15)
Allow the parking brake to cool down for approx. 3 minutes.
1. 6.1 Vehicles with code Z07 Top protection: Repeat process 4 times.
  In order to avoid damage to the brake system, it is essential to comply with cooling down phases
2. 6.2 Vehicles without code Z07 Top protection: Repeat process 3 times.
In order to avoid damage to the brake system, it is essential to comply with cooling down phases

7 Drive the vehicle off the roller brake test stand.
If the roller brake test stand is not available, condition parking brake using STAR DIAGNOSIS. Run through the following steps: Select menu item "chassis"/"EFB-electric parking brake"/ "commissioning"/"bed in the brakes". Then process all the individual steps.
8 Switch on the Electronic Stability Program ESP; to do this, press the ESP Off switch (S6/2s11) in the cockpit switch group (S6/2).
ESP warning lamp (A1e41) in instrument cluster (A1) must go out.
