| 1 |
Circuit 15, status |
18D |
| 10 |
Door rotary tumbler switch, status |
17E |
| 10 |
Door rotary tumbler switch, status |
11D |
| 10 |
Door rotary tumbler switch, status |
12B |
| 11 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
20D |
| 12 |
Accelerator pedal, status |
30D |
| 12 |
Accelerator pedal, status |
21E |
| 13 |
Transmission control, status |
28D |
| 14 |
Engine torque, reduce request |
25D |
| 15 |
Engine torque, increase request |
25D |
| 16 |
BAS release switch, status |
20G |
| 17 |
Membrane travel sensor, signal |
21G |
| 18 |
Solenoid valve, actuation |
25H |
| 2 |
Vehicle speed, signal |
18E |
| 2 |
Vehicle speed, signal |
9G |
| 3 |
Wheel speed, signal |
21D |
| 4 |
Steering angle, signal |
19G |
| 4 |
Steering angle, signal |
18K |
| 5 |
Instrument cluster, message |
12E |
| 5 |
Instrument cluster, message |
7H |
| 6 |
ESP switch, status |
18E |
| 6 |
ESP switch, status |
9E |
| 6 |
ESP switch, status |
3D |
| 7 |
Parking brake, status |
17E |
| 7 |
Parking brake, status |
9D |
| 8 |
Circuit 54, status |
11H |
| 8 |
Circuit 54, status |
13E |
| 8 |
Circuit 54, status |
12J |
| 8 |
Circuit 54, status |
17G |
| 9 |
Flashing brake lights, request |
11H |
| 9 |
Flashing brake lights, request |
13E |

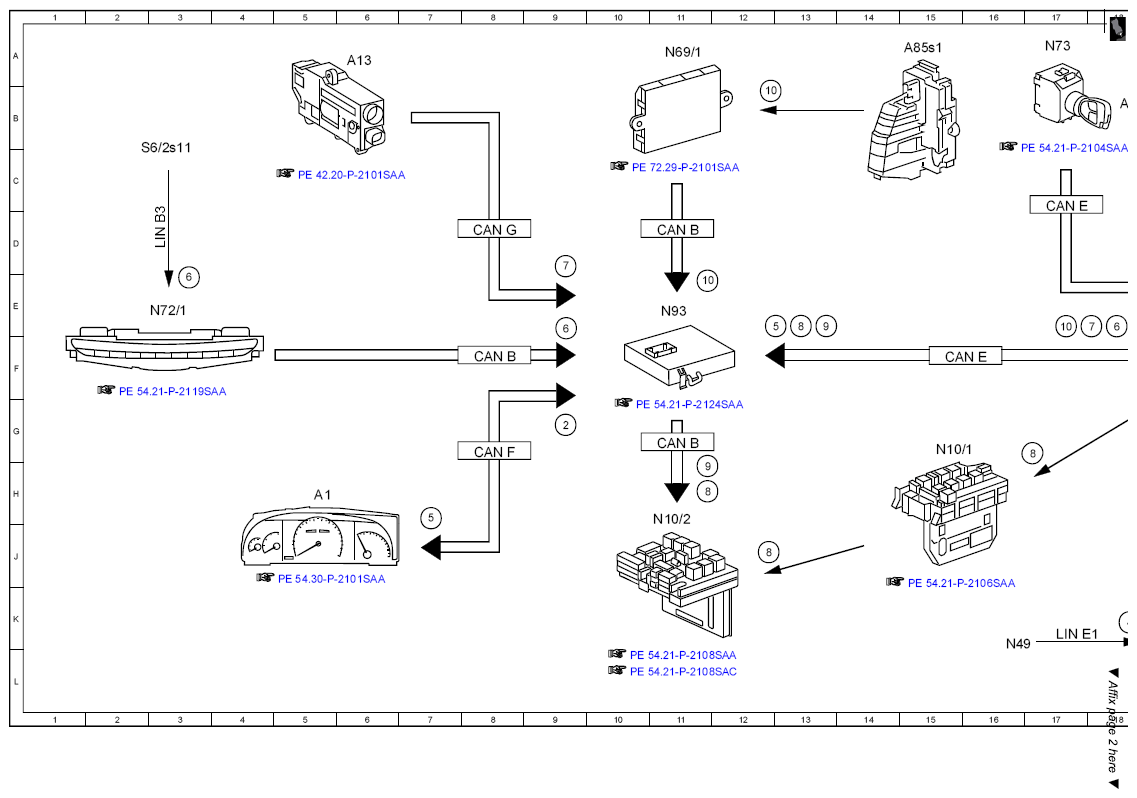

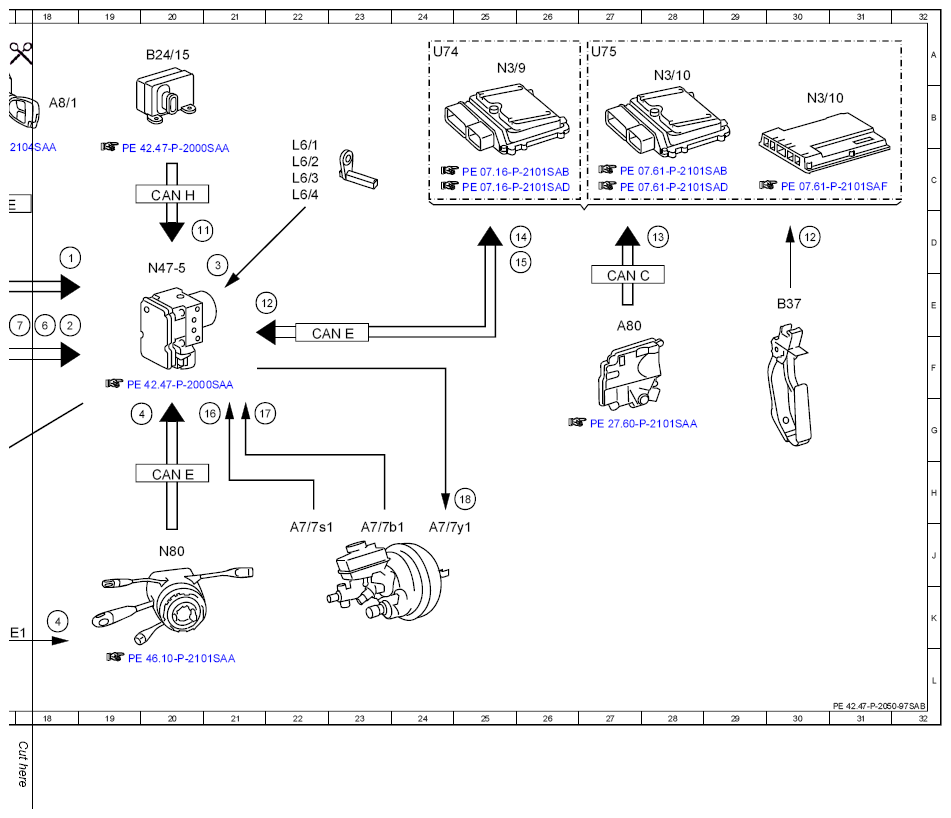

| A1 |
Instrument cluster |
5H |
| A13 |
Electric parking brake control unit |
6A |
| A7/7b1 |
BAS diaphragm travel sensor |
23J |
| A7/7s1 |
BAS release switch |
22J |
| A7/7y1 |
BAS solenoid valve |
24J |
| A8/1 |
Transmitter key |
18B |
| A80 |
Intelligent servo module for DIRECT SELECT |
27E |
| A85s1 |
Left front rotary tumbler switch |
15A |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
20A |
| B37 |
Accelerator pedal sensor |
30E |
| CAN B |
Interior CAN |
11D |
| CAN B |
Interior CAN |
11G |
| CAN B |
Interior CAN |
8F |
| CAN C |
Drive train CAN |
27E |
| CAN E |
Chassis CAN |
17D |
| CAN E |
Chassis CAN |
15F |
| CAN E |
Chassis CAN |
22E |
| CAN E |
Chassis CAN |
20H |
| CAN F |
Central CAN |
8G |
| CAN G |
Front end CAN |
8D |
| CAN H |
Vehicle dynamics CAN |
20C |
| L6/1 |
Left front RPM sensor |
22B |
| L6/2 |
Right front RPM sensor |
22C |
| L6/3 |
Left rear RPM sensor |
22C |
| L6/4 |
right rear RPM sensor |
22C |
| LIN B3 |
OBF LIN |
3D |
| LIN E1 |
Steering LIN |
17K |
| N10/1 |
Front SAM control unit with fuse and relay module |
15G |
| N10/2 |
Rear SAM control unit with fuse and relay module |
11H |
| N3/10 |
ME-SFI [ME] control unit |
28A |
| N3/10 |
ME-SFI [ME] control unit |
30B |
| N3/9 |
CDI control unit |
25A |
| N47-5 |
ESP control unit |
20D |
| N49 |
Steering angle sensor |
16K |
| N69/1 |
Left front door control unit |
11A |
| N72/1 |
Upper control panel control unit |
2E |
| N73 |
EIS [EZS] control unit |
17A |
| N80 |
Steering column module |
20J |
| N93 |
Central gateway control unit |
11E |
| S6/2s11 |
ESP OFF switch |
2B |
| U74 |
Valid for diesel engines |
24A |
| U75 |
Valid for gasoline engines |
27A |
