| AO |
Explanation of color codes |
23 L |
| M16/33 |
Left B-pillar air distribution actuator motor |
4L |
| N10/1 |
Front SAM control module with fuse and relay module |
9L |
| N10/1 |
Front SAM control module with fuse and relay module |
13L |
| N61 |

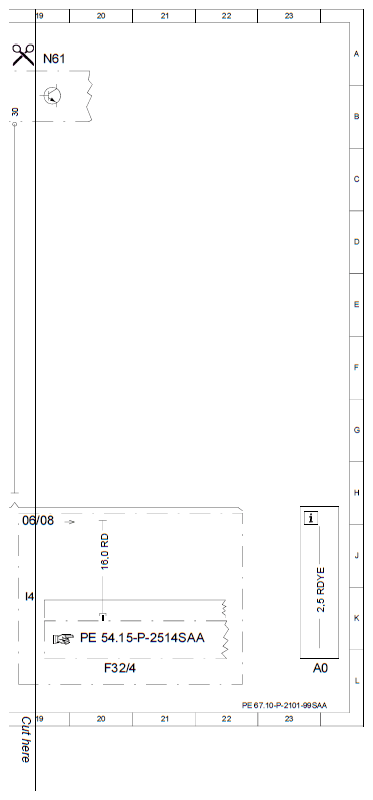

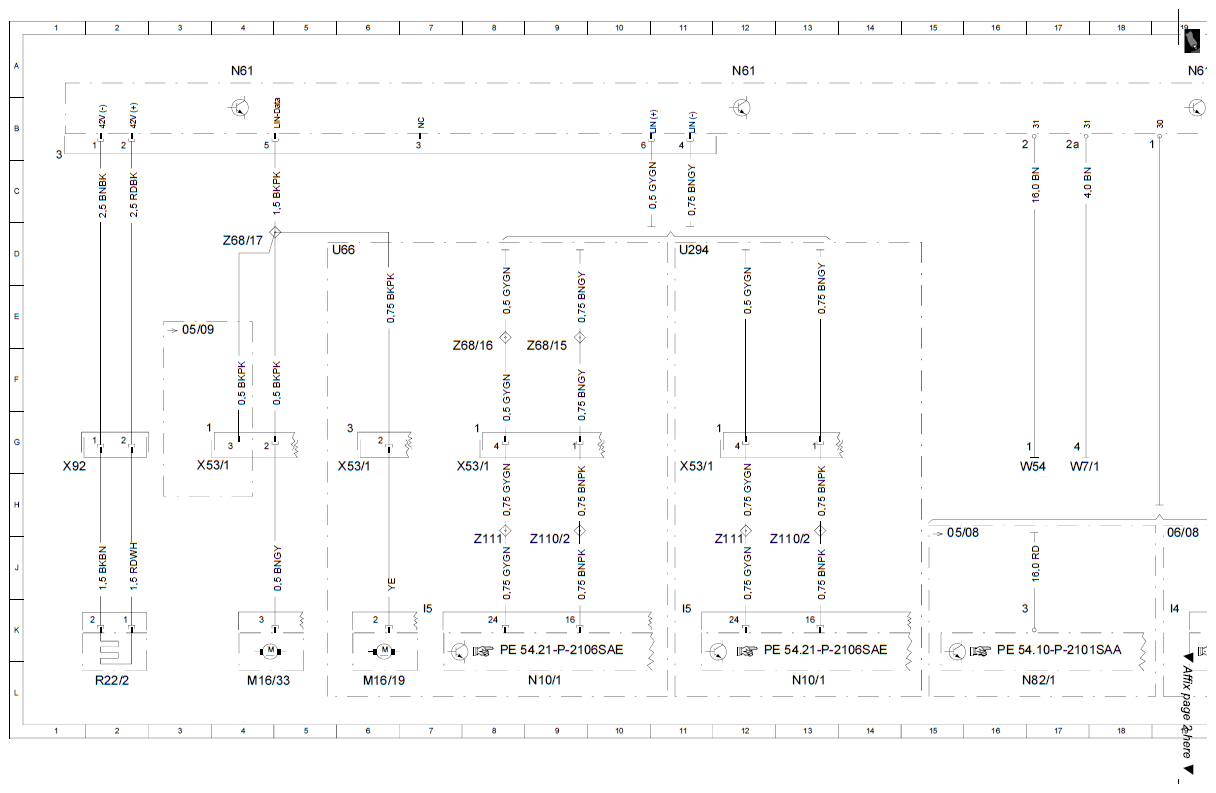

Heated windshield control module |
4A |
| N61 |
Heated windshield control module |
12A |
| N61 |
Heated windshield control module |
17A |
| N82/1 |
Vehicle power supply control module |
16L |
| R22/2 |
Heated windshield |
2L |
| U66 |
Valid for rear AC |
5D |
| U900 |
Further line routing not clarified at time of publication |
3E |
| U900 |
Further line routing not clarified at time of publication |
5E |
| W54 |
Ground, wheelhousing rear right |
14H |
| W7/1 |
Ground (right taillamp in trunk) |
15H |
| X53/1 |
Air conditioning connector |
3H |
| X53/1 |
Air conditioning connector |
6H |
| X53/1 |
Air conditioning connector |
7H |
| X53/1 |
Air conditioning connector |
11 H |
| X92 |
Rear window defroster connector |
1 H |
| Z110/2 |
AC bus solder terminal |
9J |
| Z110/2 |
AC bus solder terminal |
13J |
| Z111 |
Voltage supply connector sleeve |
8J |
| Z111 |
Voltage supply connector sleeve |
12J |
| Z68/15 |
Heated windshield LIN bus ground connector sleeve |
9F |
| Z68/16 |
Heated windshield LIN bus positive connector sleeve |
7F |
| Z68/17 |
Heated windshield LIN bus data connector sleeve |
4D |
