| A0 |
Explanation of color codes |
40 L |

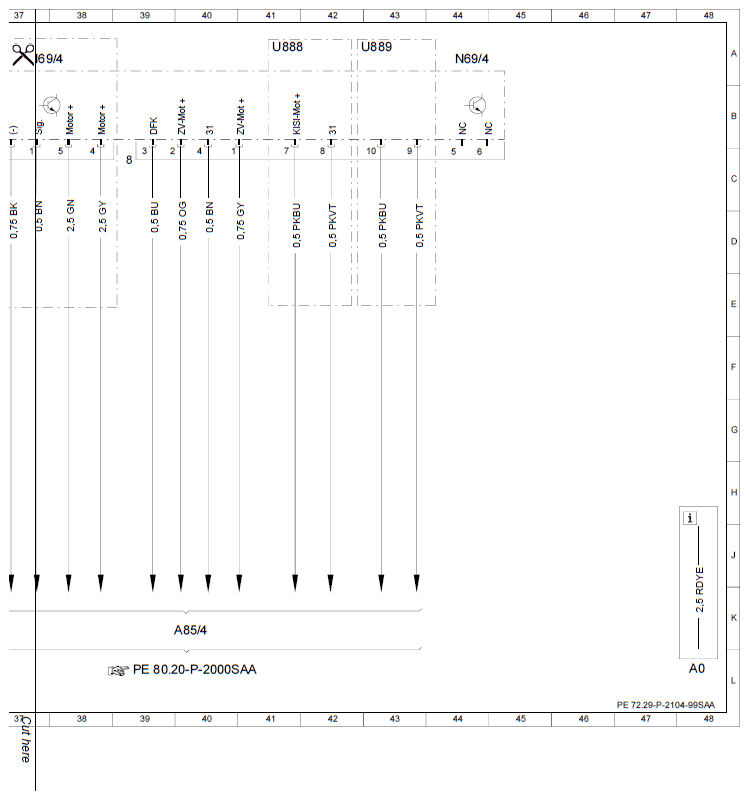

| A85/4 |
Right rear door lock unit |
33 K |
| E17/14 |
Right rear door inside handle illumination |
13 L |
| E17/22 |
Rear right door warning lamp |
10 L |
| E17/46 |
Right rear door trim strip illumination |
12 L |
| E17/6 |
Right rear door entrance and exit lamp |
9 L |
| E9/9 |
Right rear ashtray illumination |
14 L |
| F1/6 |
Right instrument panel fuse box |
2 L |
| F1/6f82 |
Fuse 82 |
2 K |
| M10/6 |
Right rear power window motor |
7 L |
| M24/6 |
Right rear side roller blind motor |
28 L |

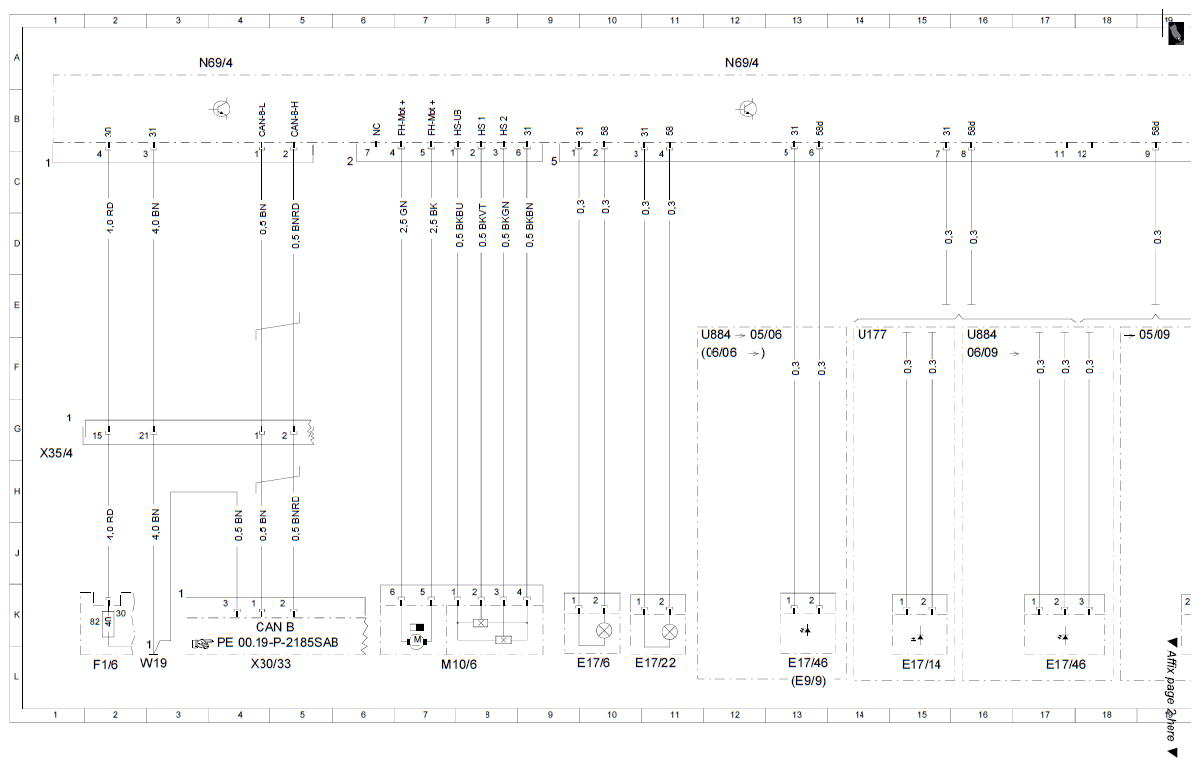

| N69/4 |
Rear right door control module |
3 A |
| N69/4 |
Rear right door control module |
12 A |
| N69/4 |
Rear right door control module |
20 A |
| N69/4 |
Rear right door control module |
28 A |
| N69/4 |
Rear right door control module |
34 A |

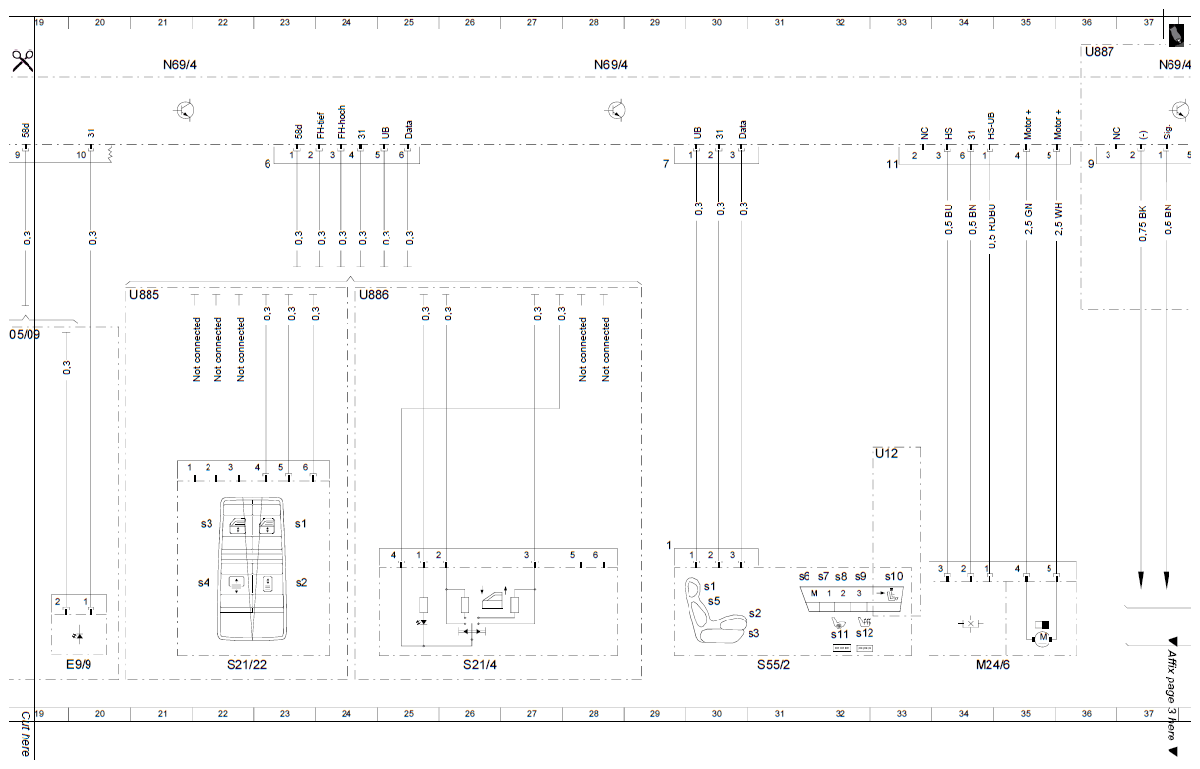

| S21/22 |
Right rear door power window/roller blind switch group |
17 L |
| S21/22s1 |
Right rear power window and side window roller blind switch |
18 J |
| S21/22s2 |
Roof blind switch |
18 K |
| S21/22s3 |
Left rear power window and side window roller blind switch |
16 J |
| S21/22s4 |
Rear window roller blind switch |
16 K |
| S21/4 |
Right rear power window switch |
21 L |
| S55/2 |
Right rear seat operation switch group |
25 L |
| S55/2s1 |
Head restraint adjustment switch |
24 K |
| S55/2s10 |
Front or rear seat adjustment selection switch |
26 K |
| S55/2s11 |
Seat ventilation switch |
26 K |
| S55/2s12 |
Heated seat switch |
26 K |
| S55/2s2 |
Seat cushion inclination switch |
24 K |
| S55/2s3 |
Fore/aft adjustment switch |
24 K |
| S55/2s5 |
Backrest switch |
24 K |
| S55/2s6 |
Memory store button switch |
25 K |
| S55/2s7 |
Memory 1 switch |
25 K |
| S55/2s8 |
Memory 2 switch |
25 K |
| S55/2s9 |
Memory 3 switch |
26 K |
| U12 |
Valid for left-hand steering |
27 H |
| U177 |
Not valid for ambiance illumination |
11 E |
| U885 |
Valid for rear side roller blind/roof roller blind/rear roller blind |
15 E |
| U886 |
Valid for rear individual power window switches |
19 E |
| U887 |
Valid for power closing |
30 A |
| U888 |
Valid for door child safety locks |
35 A |
| U889 |
Valid for additional door lock |
36 A |
| W19 |
Ground (right front seat crossmember) |
2 L |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
4 L |
| X35/4 |
Right rear door separation point |
1 H |
