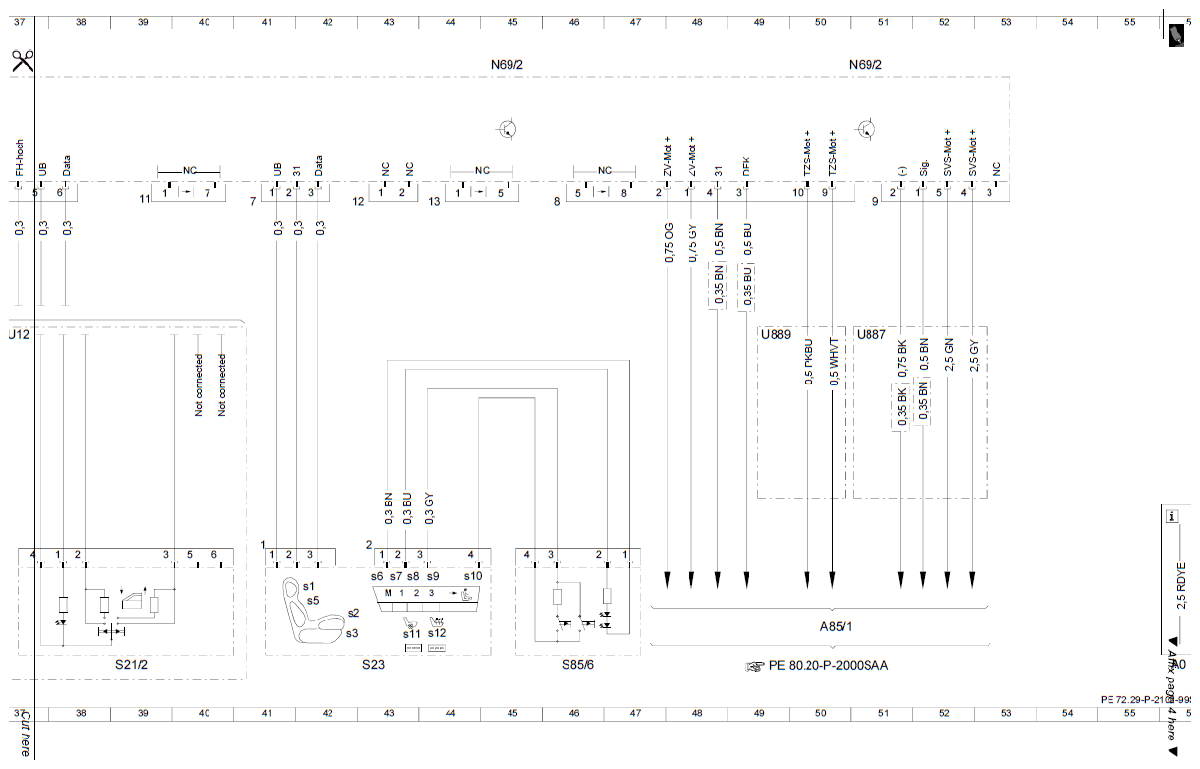

| A85/1 |
Right front door lock switch |
45 K |
| E17/12 |
Right front door inside handle illumination |
26 L |
| E17/21 |
Front right door warning lamp |
23 L |

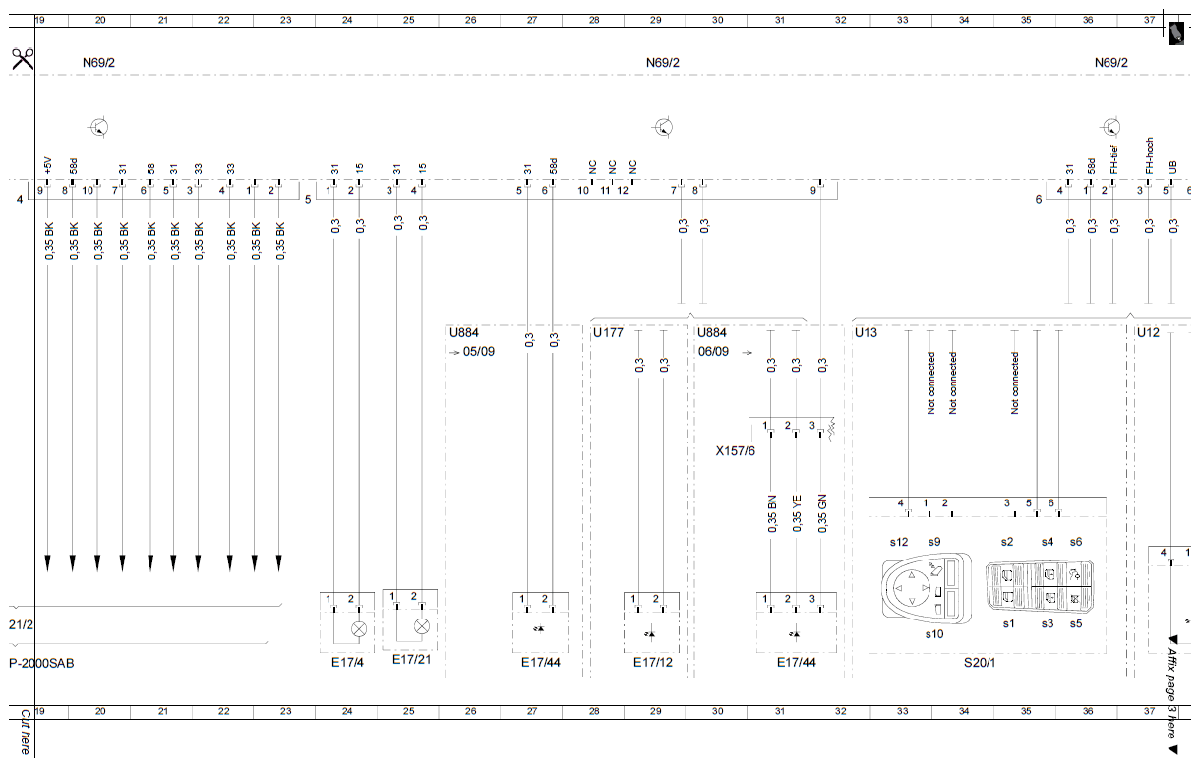

| E17/4 |
Right front door entrance and exit lamp |
22 L |
| E17/44 |
Right front door trim strip illumination |
25 L |
| F1/6 |
Right instrument panel fuse box |
1 L |
| F1/6f70 |
Fuse 70 |
1 K |
| F1/7 |
Left instrument panel fuse box |
4 L |
| F1/7f112 |
Fuse 112 |
3 K |
| M10/4 |
Right front power window motor |
13 L |
| M21/2 |
Right electrically adjustable and heated exterior mirror |
18 K |
| N10/1 |
Front SAM control module with fuse and relay module |
9 L |

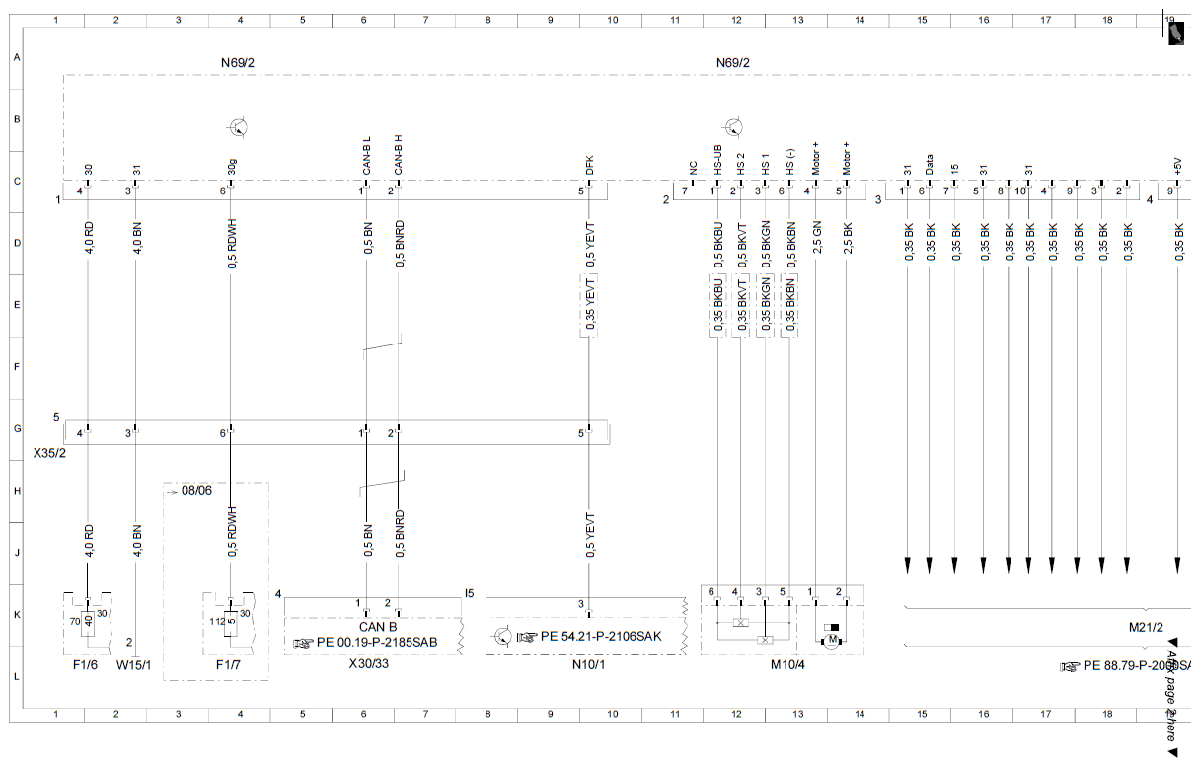

| N69/2 |
Right front door control module |
4 A |
| N69/2 |
Right front door control module |
12 A |
| N69/2 |
Right front door control module |
20 A |
| N69/2 |
Right front door control module |
28 A |
| N69/2 |
Right front door control module |
36 A |
| N69/2 |
Right front door control module |
44 A |
| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
29 L |
| S20/1s1 |
Left front power window switch |
30 K |
| S20/1s10 |
Left/right outside mirror adjustment selection switch |
28 L |
| S20/1s12 |
Outside mirror adjustment rocker switch |
28 J |
| S20/1s2 |
Right front power window switch |
29 J |
| S20/1s3 |
Left rear power window and side window roller blind switch |
30 K |
| S20/1s4 |
Right rear power window and side window roller blind switch |
30 J |
| S20/1s5 |
Rear side windows child safety lock switch |
31 K |
| S20/1s6 |
Trunk lid open/close switch |
31 J |
| S20/1s9 |
Exterior mirror fold-in/fold-out switch |
28 J |
| S21/2 |
Front passenger power window switch |
34 L |
| S23 |
Right front seat operation switch group |
38 L |
| S23s1 |
Head restraint adjustment switch |
36 K |
| S23s10 |
Left or right seat adjustment selection switch |
39 K |
| S23s11 |
Seat ventilation switch |
38 K |
| S23s12 |
Heated seat switch |
38 K |
| S23s2 |
Seat cushion forward/back switch |
37 K |
| S23s3 |
Fore/aft, height and inclination adjustment switch |
37 K |
| S23s5 |
Backrest switch |
37 K |
| S23s6 |
Memory store button switch |
37 K |
| S23s7 |
Memory 1 switch |
38 K |
| S23s8 |
Memory 2 switch |
38 K |
| S23s9 |
Memory 3 switch |
38 K |
| S85/6 |
Right Interior CL [ZV] switch |
41 L |
| U12 |
Valid for left-hand steering |
32 F |
| U13 |
Valid for right-hand steering |
27 F |
| U13 |
Valid for right-hand steering |
39 H |
| U177 |
Not valid for ambiance illumination |
24 F |
| U887 |
Valid for power closing |
46 F |
| U889 |
Valid for additional door lock |
44 F |
| W15/1 |
Ground (right footwell) |
2 L |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
6 L |
| X35/2 |
Right front door and FFS [RBA] connector |
1 H |
