Wiring diagram for remote trunk closing control unit - PE72.30-P-2101-99SAA

Code:	Designation:	Position:
A0	Explanation of color codes	23 L
B24/16	Trunk lid position sensor	15 L
B24/16x1	Trunk lid position sensor connector	14 J
F1/6	Right instrument panel fuse box	6 L
F1/6f74	Fuse 74	6 K
M51	TLC [HDS] hydraulic pump	13 L
M51x1	TLC [HDS] hydraulic pump connector	13 J
N10/2	Rear SAM control module with fuse and relay module	3 L
N121	TLC [HDS] control module	4 A
N121	TLC [HDS] control module	11 A
S62/26	TLC [HDS] button	11 L
W54	Ground, wheelhousing rear right	3 E
X30/33	Right interior CAN/FFS [RBA] voltage distributor connector	8 L

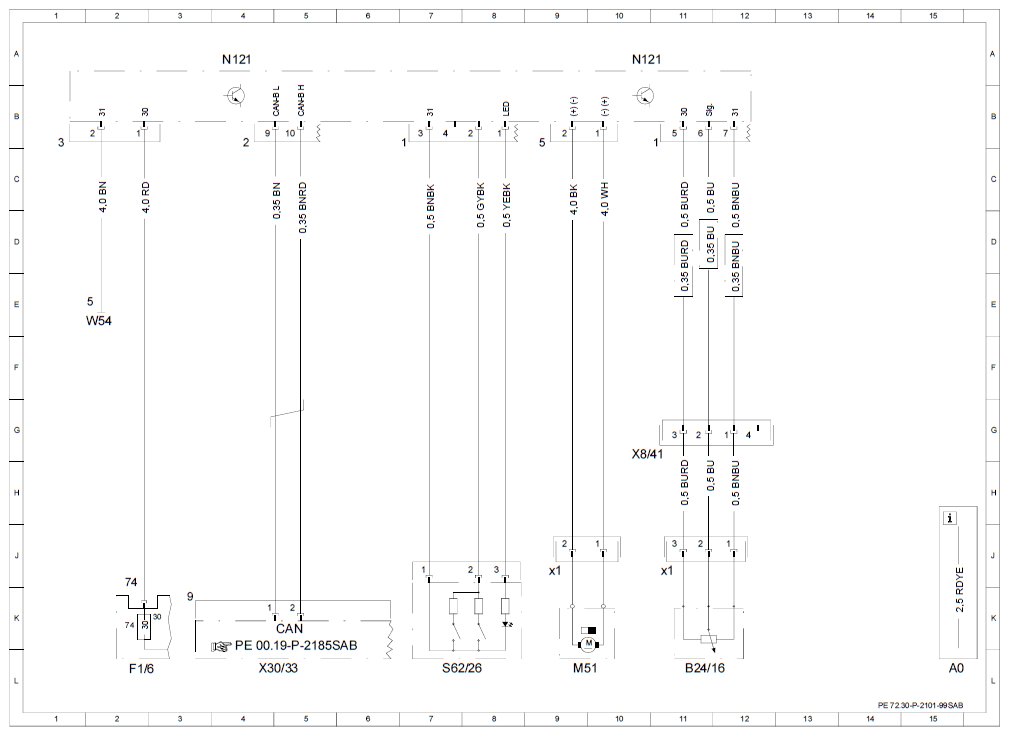

Fig 1: Remote Trunk Closing Control Unit Electrical Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

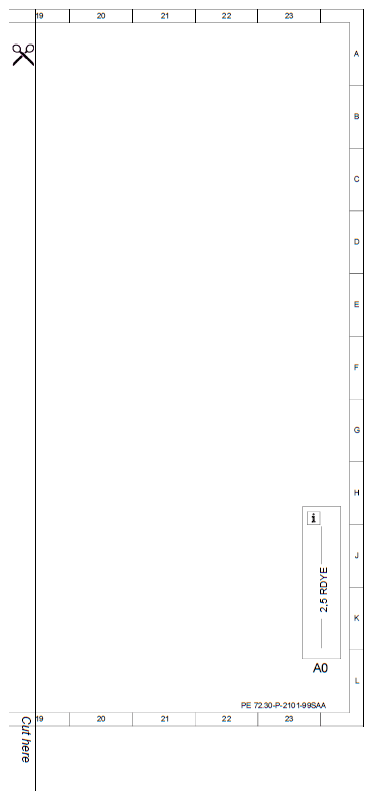

Fig 2: Remote Trunk Closing Control Unit Electrical Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

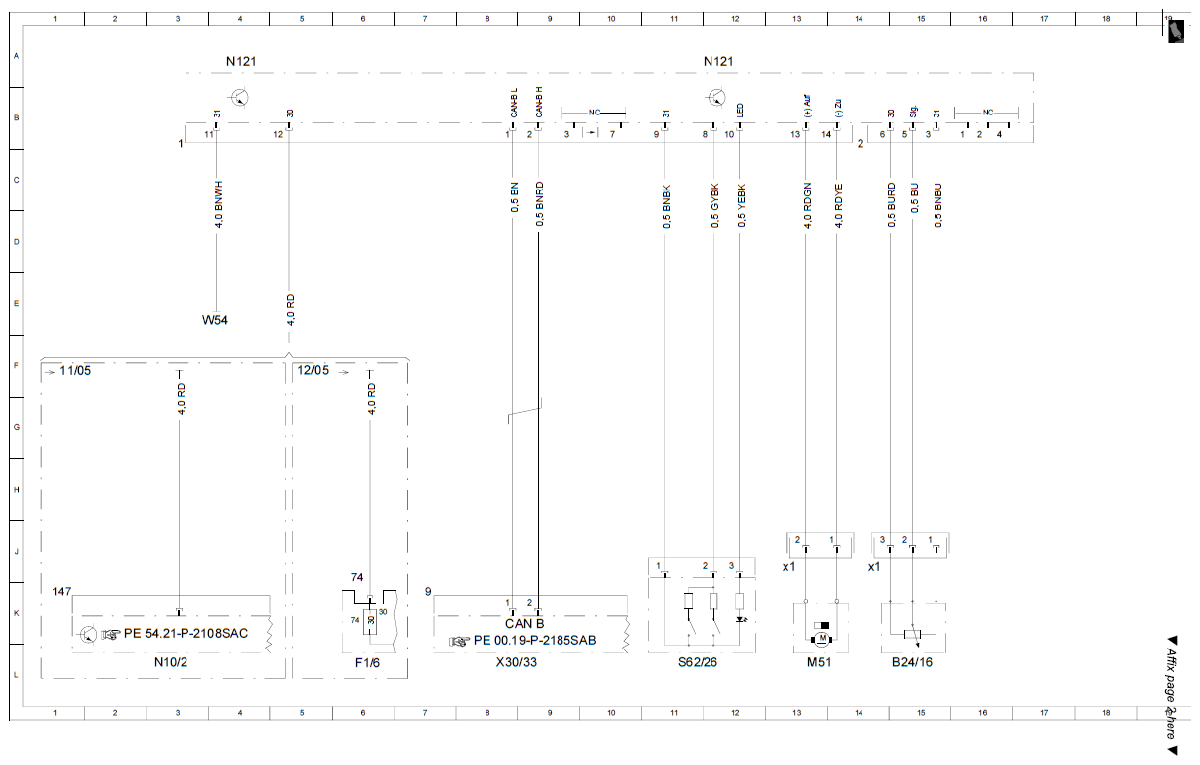

Fig 3: Remote Trunk Closing Control Unit Electrical Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
