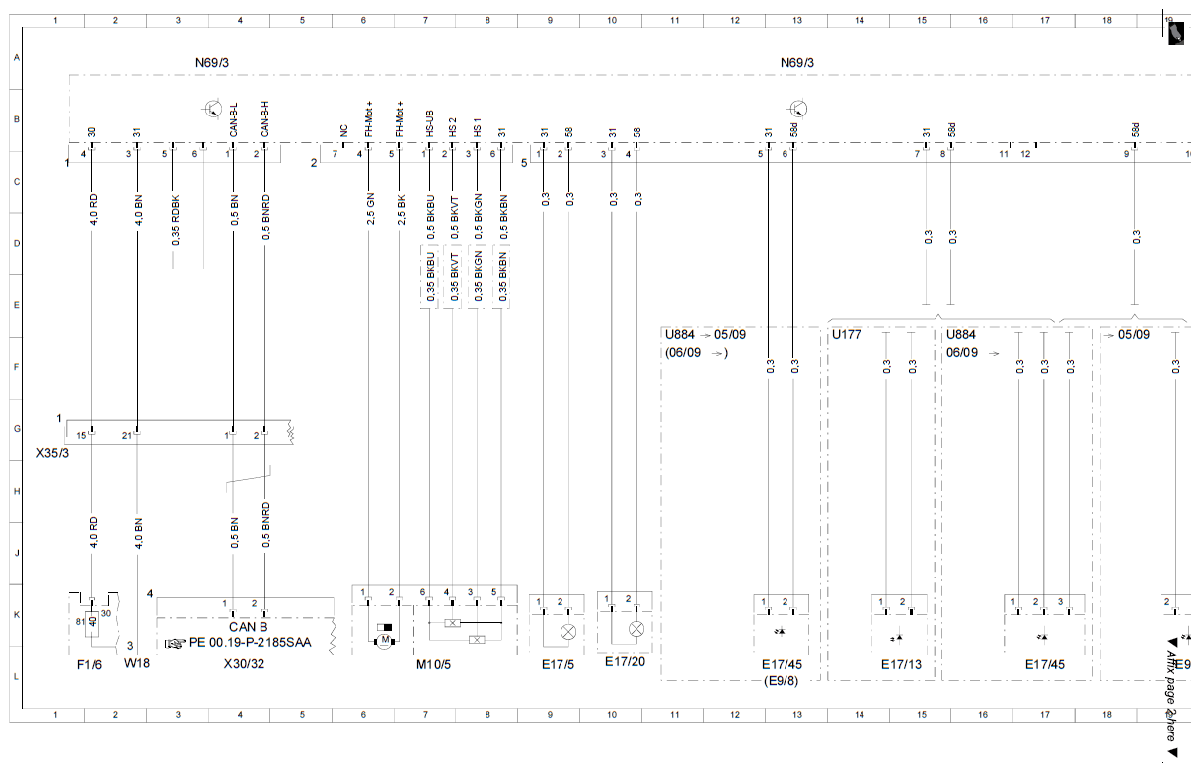

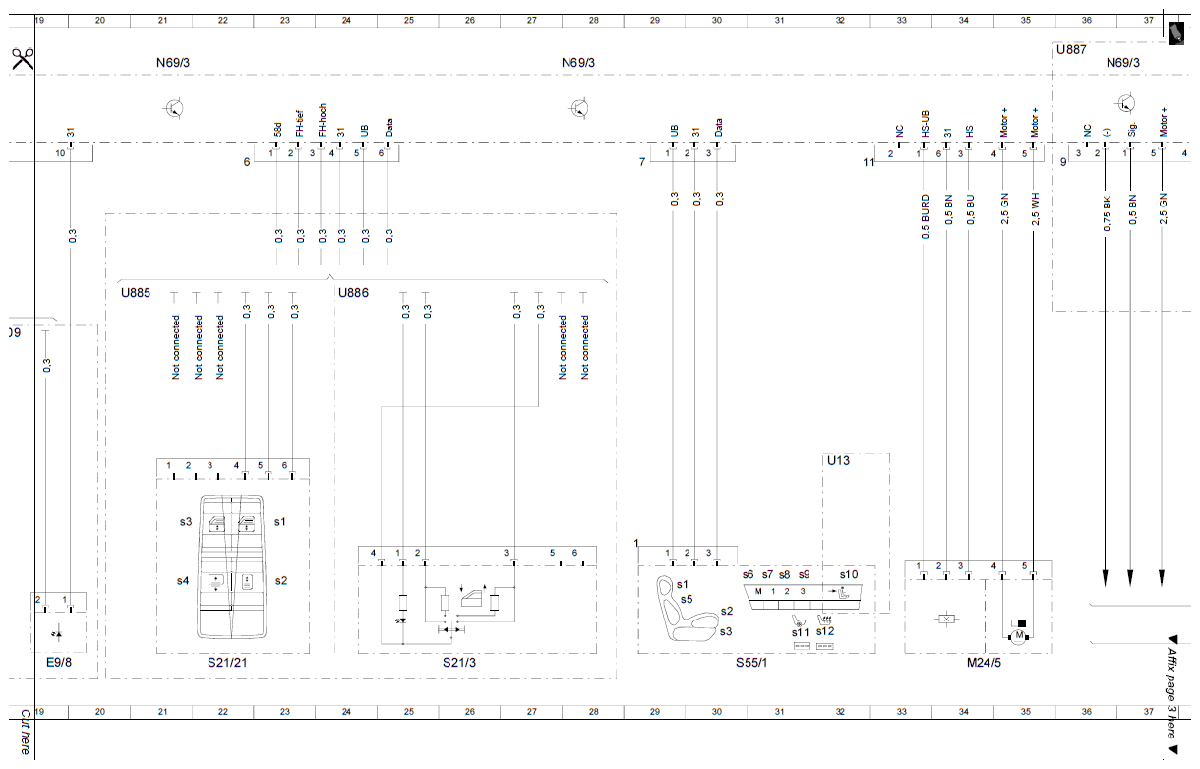

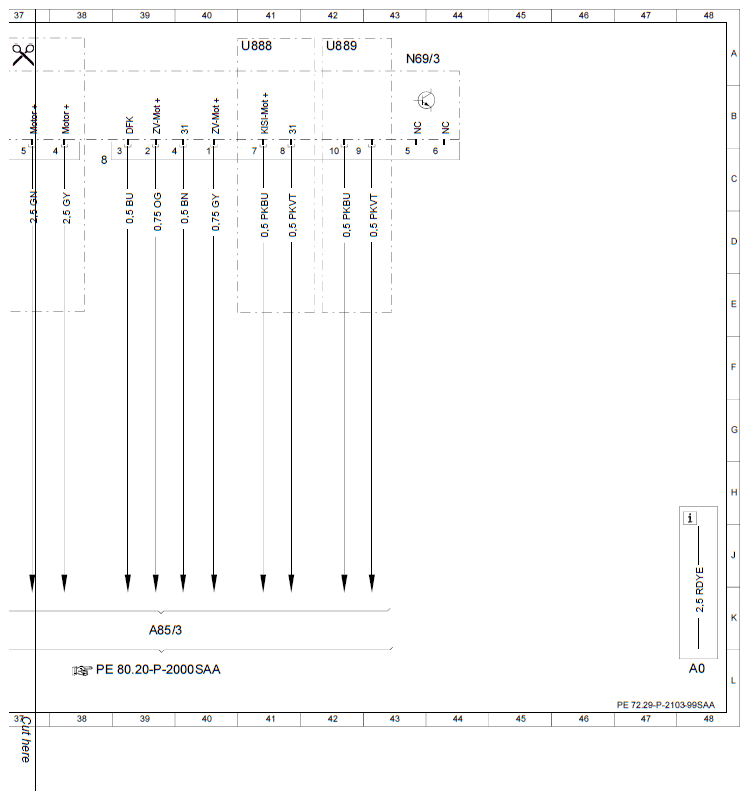

| A0 |
Explanation of color codes |
40 L |
| A85/3 |
Left rear door lock unit |
33 K |
| E17/13 |
Left rear inside door handle illumination |
13 L |
| E17/20 |
Rear left door warning lamp |
10 L |
| E17/45 |
Left rear door trim strip illumination |
11 L |
| E17/5 |
Left rear door entrance and exit lamp |
9 L |
| E9/8 |
Left rear ashtray illumination |
14 L |
| F1/6 |
Right instrument panel fuse box |
1 L |
| F1/6f81 |
Fuse 81 |
1 K |
| M10/5 |
Left rear power window motor |
7 L |
| M24/5 |
Left rear side roller blind motor |
28 L |
| N69/3 |
Rear left door control module |
3 A |
| N69/3 |
Rear left door control module |
12 A |
| N69/3 |
Rear left door control module |
20 A |
| N69/3 |
Rear left door control module |
27 A |
| N69/3 |
Rear left door control module |
33 A |
| S21/21 |
Left rear door power window/roller blind switch group |
16 L |
| S21/21s1 |
Right rear power window and side window roller blind switch |
17 J |
| S21/21s2 |
Roof blind switch |
17 K |
| S21/21s3 |
Left rear power window and side window roller blind switch |
15 J |
| S21/21s4 |
Rear window roller blind switch |
16 K |
| S21/3 |
Left rear power window switch |
20 L |
| S55/1 |
Left rear seat operation switch group |
24 L |
| S55/1s1 |
Head restraint adjustment switch |
23 K |
| S55/1s10 |
Front or rear seat adjustment selection switch |
25 K |
| S55/1s11 |
Seat ventilation switch |
25 K |
| S55/1s12 |
Heated seat switch |
25 K |
| S55/1s2 |
Seat cushion inclination switch |
23 K |
| S55/1s3 |
Fore/aft adjustment switch |
24 K |
| S55/1s5 |
Backrest switch |
23 K |
| S55/1s6 |
Memory store button switch |
24 K |
| S55/1s7 |
Memory 1 switch |
24 K |
| S55/1s8 |
Memory 2 switch |
24 K |
| S55/1s9 |
Memory 3 switch |
25 K |
| U13 |
Valid for right-hand steering |
26 H |
| U177 |
Not valid for ambiance illumination |
11 E |
| U885 |
Valid for rear side roller blind/roof roller blind/rear roller blind |
15 E |
| U886 |
Valid for rear individual power window switches |
18 E |
| U887 |
Valid for power closing |
29 A |
| U888 |
Valid for door child safety locks |
34 A |
| U889 |
Valid for additional door lock |
36 A |
| W18 |
Ground (left front seat crossmember) |
2 L |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
4 L |
| X35/3 |
Left rear door separation point |
1 H |
