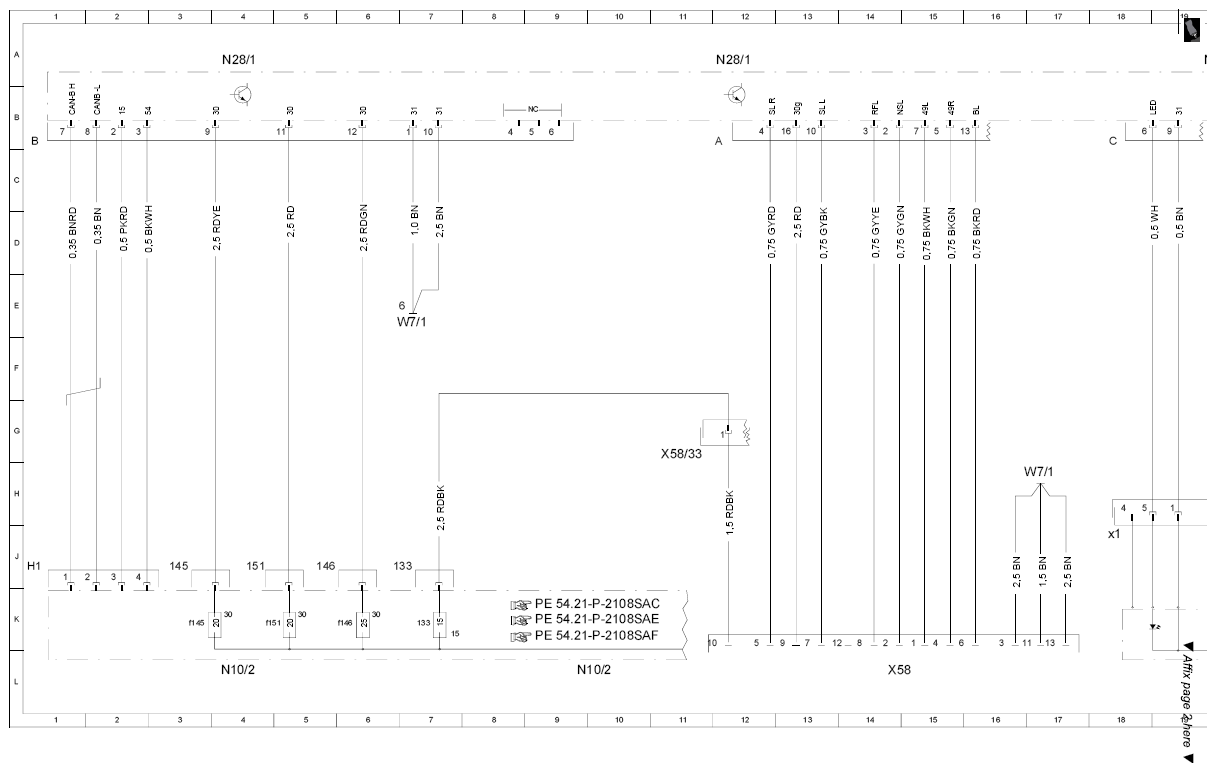

| A0 |
Explanation of color codes |
L23 |
| A63 |
Towing hitch release |
L20 |
| A63x1 |
Trailer hitch lock connector |
J18 |
| N10/2 |
Rear SAM control module with fuse and relay module |
L4 |
| N10/2 |
Rear SAM control module with fuse and relay module |
L9 |
| N10/2f133 |
Fuse 133 |
K7 |
| N10/2f145 |
Fuse 145 |
K3 |
| N10/2f146 |
Fuse 146 |
K6 |
| N10/2f151 |
Fuse 151 |
K4 |
| N28/1 |
Trailer recognition control module |
A4 |
| N28/1 |
Trailer recognition control module |
A12 |
| N28/1 |
Trailer recognition control module |
A19 |
| S142 |
Trailer hitch lock switch |
L22 |
| S142x1 |
Trailer hitch lock switch connector |
J21 |
| W7/1 |
Ground (right taillamp in trunk) |
E6 |
| W7/1 |
Ground (right taillamp in trunk) |
H16 |
| X58 |
Trailer hitch socket (13-pin) |
L14 |
| X58/33 |
Interior/trailer hitch connector |
G11 |
