| A0 |
Color code key |
64L |
| A2/12 |
Rear window antenna amplifier module |
32L |
| A2/12 |
Rear window antenna amplifier module |
58L |
| A2/35 |
Trunk KEYLESS GO antenna |
28L |
| A2/35 |
Trunk KEYLESS GO antenna |
56L |
| A2/39 |
Left rear door KEYLESS-GO antenna |
19L |
| A2/39 |
Left rear door KEYLESS-GO antenna |
51L |
| A2/41 |
Right rear door KEYLESS-GO antenna |
23L |
| A2/41 |
Right rear door KEYLESS-GO antenna |
55L |
| A2/60 |
Center console KEYLESS-GO antenna |
10L |
| A2/60 |
Center console KEYLESS-GO antenna |
43L |
| A2/60x1 |
Center console KEYLESS-GO antenna connector |
10H |
| A2/60x1 |
Center console KEYLESS-GO antenna connector |
43H |
| A2/61 |
Interior KEYLESS GO antenna |
11L |
| A2/99 |
Rear bumper KEYLESS GO antenna |
31L |
| A85 |
Left front door lock unit |
3K |
| A85 |
Left front door lock unit |
36K |
| A85/1 |
Right front door lock switch |
5K |
| A85/1 |
Right front door lock switch |
38K |
| A85/3 |
Left rear door lock unit |
4K |
| A85/3 |
Left rear door lock unit |
37K |
| A85/4 |
Right rear door lock unit |
6K |
| A85/4 |
Right rear door lock unit |
39K |
| B67/1 |
Left front KEYLESS-GO sensor unit |
13L |
| B67/1 |
Left front KEYLESS-GO sensor unit |
45L |
| B67/1b1 |
Left front comfort sensor |
13L |
| B67/1b1 |
Left front comfort sensor |
45L |
| B67/2 |
Right front KEYLESS-GO sensor unit |
15L |
| B67/2 |
Right front KEYLESS-GO sensor unit |
47L |
| B67/2b1 |
Right front comfort sensor |
15L |
| B67/2b1 |
Right front comfort sensor |
47L |
| B67/3 |
Left rear KEYLESS-GO sensor unit |
17L |
| B67/3 |
Left rear KEYLESS-GO sensor unit |
49L |
| B67/3b1 |
Left rear comfort sensor |
18L |
| B67/3b1 |
Left rear comfort sensor |
50L |
| B67/4 |
Right rear KEYLESS-GO sensor unit |
21L |
| B67/4 |
Right rear KEYLESS-GO sensor unit |
53L |
| CAN B |
Interior CAN |
8K |
| CAN B |
Interior CAN |
41K |
| F1/6 |
Right instrument panel fuse box |
1L |
| F1/6 |
Right instrument panel fuse box |
35L |
| F1/6f71 |
Fuse 71 |
1K |
| F1/6f71 |
Fuse 71 |
34K |

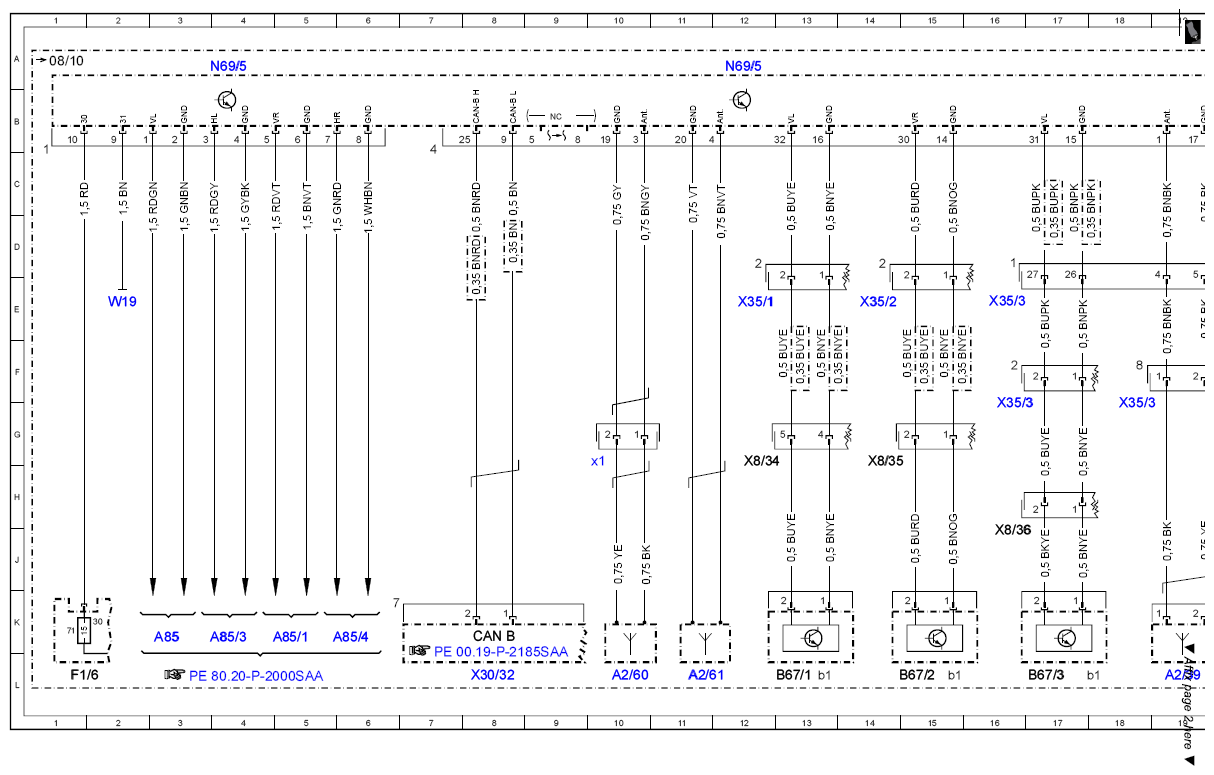

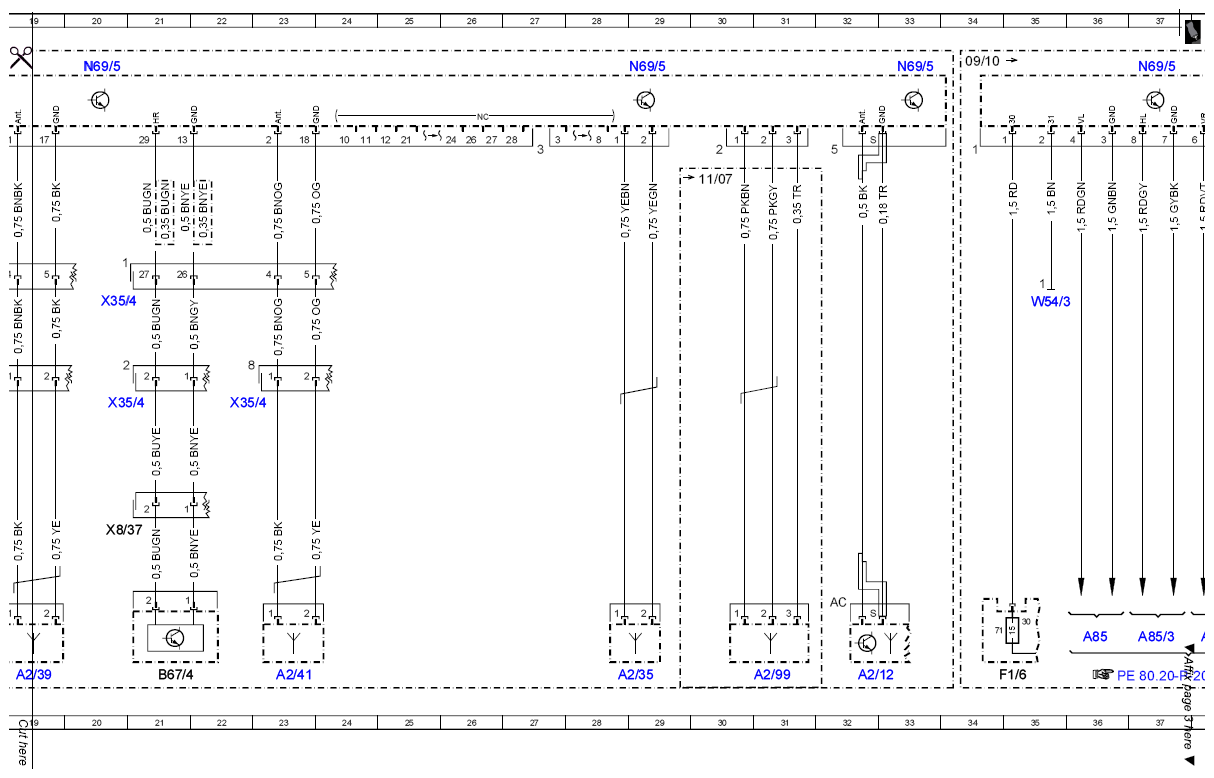

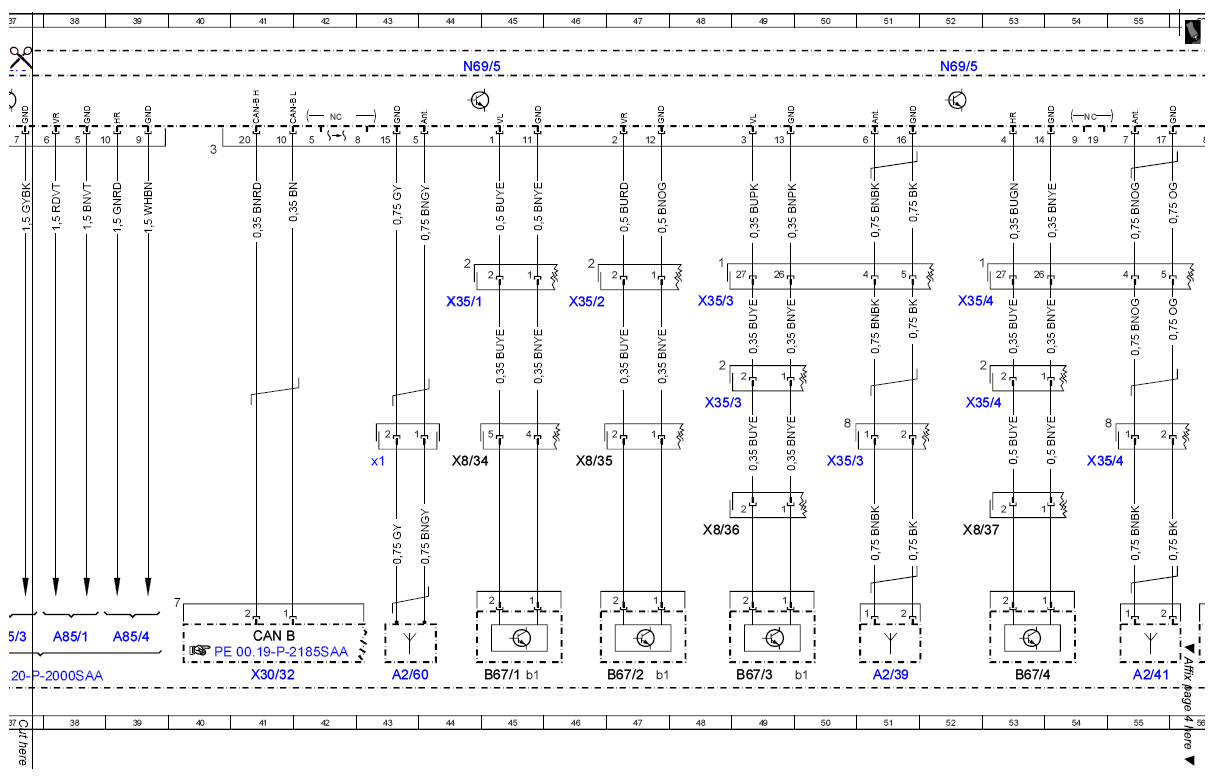

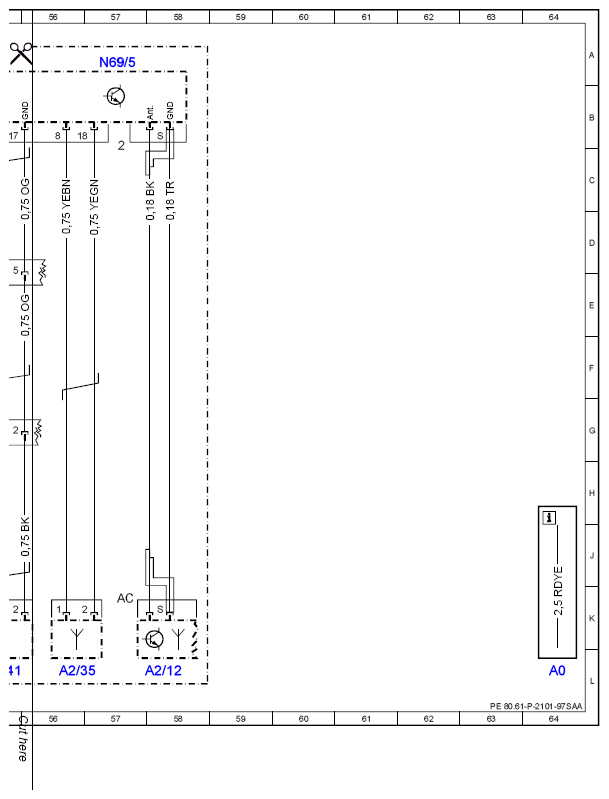

| N69/5 |
KEYLESS-GO control unit |
4A |
| N69/5 |
KEYLESS-GO control unit |
12A |
| N69/5 |
KEYLESS-GO control unit |
20A |
| N69/5 |
KEYLESS-GO control unit |
29A |
| N69/5 |
KEYLESS-GO control unit |
33A |
| N69/5 |
KEYLESS-GO control unit |
37A |
| N69/5 |
KEYLESS-GO control unit |
44A |
| N69/5 |
KEYLESS-GO control unit |
52A |
| N69/5 |
KEYLESS-GO control unit |
57A |
| W19 |
Ground (right front seat crossmember) |
2E |
| W54/3 |
Ground (left rear wheelhouse) |
35E |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
8L |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
41L |
| X35/1 |
Left front door and FFS [RBA] connector |
12E |
| X35/1 |
Left front door and FFS [RBA] connector |
44E |
| X35/2 |
Right front door and FFS [RBA] connector |
14E |
| X35/2 |
Right front door and FFS [RBA] connector |
46E |
| X35/3 |
Left rear door separation point |
16G |
| X35/3 |
Left rear door separation point |
16E |
| X35/3 |
Left rear door separation point |
18G |
| X35/3 |
Left rear door separation point |
48G |
| X35/3 |
Left rear door separation point |
50H |
| X35/3 |
Left rear door separation point |
48E |
| X35/4 |
Right rear door separation point |
20G |
| X35/4 |
Right rear door separation point |
22G |
| X35/4 |
Right rear door separation point |
20E |
| X35/4 |
Right rear door separation point |
52E |
| X35/4 |
Right rear door separation point |
53G |
| X35/4 |
Right rear door separation point |
54H |
| X8/34 |
Left front door handle connector |
12H |
| X8/34 |
Left front door handle connector |
44H |
| X8/35 |
Right front door handle connector |
14H |
| X8/35 |
Right front door handle connector |
46H |
| X8/36 |
Left rear door handle connector |
16J |
| X8/36 |
Left rear door handle connector |
48J |
| X8/37 |
Right rear door handle connector |
20J |
| X8/37 |
Right rear door handle connector |
53J |
