Retrofit rear-entertainment with two screens - AZ82.60-P-0015SX

MODEL 221.0 /1 except CODE (864) Rear entertainment system

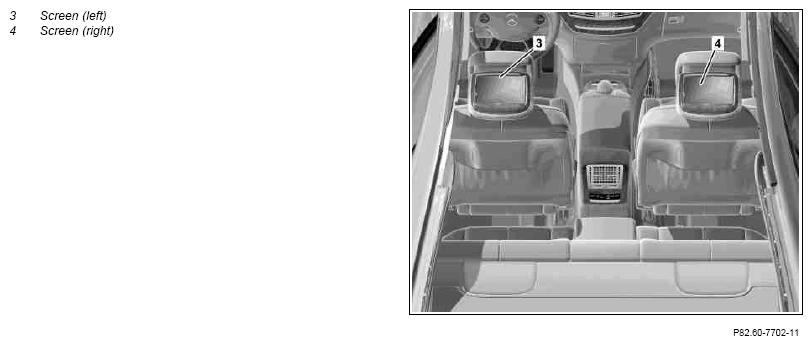

Fig 1: Identifying Rear-Entertainment Screens

Courtesy of MERCEDES-BENZ USA

	Remove
1	Loosen center console in rear area	Model 221.0/1 up to 31.5.09 without  code (800) Model year 2010	AR68.20-P-2000SX
		Model 221.0/1 as of 1.6.09 Model 221.0/1 with  code (800) Model year 2010	AR68.20-P-2000SXH
2	Loosen front seats		AR91.10-P-1000SX
3	Loosen head restraint drive at front seats	Do not completely remove the head restraint, simply loosen it.	AR91.29-P-1200SX
	Install
4	Retrofit bracket of screens (3, 4)		AZ82.60-P-0015-04SX
			*BA82.60-P-1001-01A
5	Retrofit rear entertainment wiring harness	Make sure that the wiring harnesses are not damaged by chafing, pinching or crushing, as otherwise the corresponding wiring harness may have to be replaced.	AZ82.60-P-0015-02SX
6	Retrofit rear entertainment control unit		AZ82.60-P-0015-01SX
7	Retrofit screens (3, 4)		AZ82.60-P-0015-03SX
8	Install remaining parts
9	Program rear entertainment infrared channel		AZ82.60-P-0015-05GZ
10	Program rear entertainment regional code		AZ82.60-P-0015-06GZ
11	Perform function test	See rear entertainment operating instructions.

REAR ENTERTAINMENT UNIT

Number	Designation		Model 164, 166, 204, 211, 212, 218, 219, 221, 251
BA82.60-P-1001-01A	Screw/bolt to rear entertainment unit bracket	Nm	19

PARTS ORDERING NOTES

Part no.	Designation	Quantity
see Odus	Parts kit for rear entertainment with two screens	1
