Retrofit iPod wiring harness - AZ82.60-P-0001-02SX

Remove glove compartment lamp (E13/1) from glove compartment (4).

Fig 1: Identifying Glove Compartment Lamp (E13/1) And Glove Compartment
Courtesy of MERCEDES-BENZ USA
Remove damping material (8) in the area (A) from rear of glove compartment (4).
Check whether no other components or wiring harnesses are installed in area (A) on rear of glove compartment (4).
Drill hole in area (A).

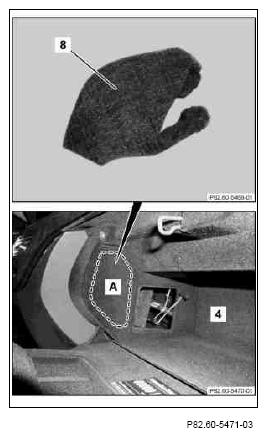

Fig 2: Identifying Damping Material And Glove Compartment Drill Area
Courtesy of MERCEDES-BENZ USA
Drill hole (C) with Ø = 20 mm into glove compartment (4) as per the dimensioning.
Ensure that no other components are damaged when drilling hole (C).

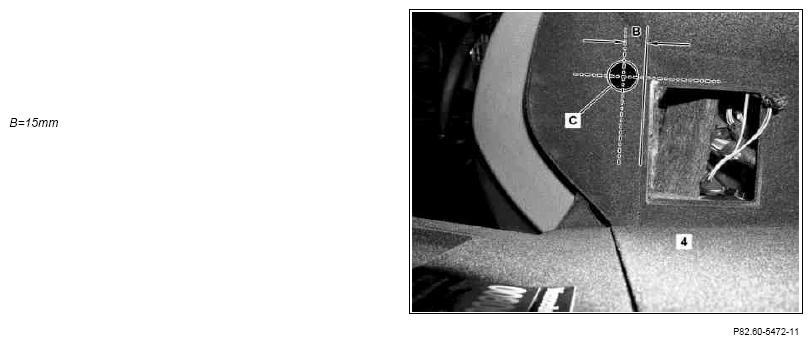

Fig 3: Locating Drill Hole
Courtesy of MERCEDES-BENZ USA

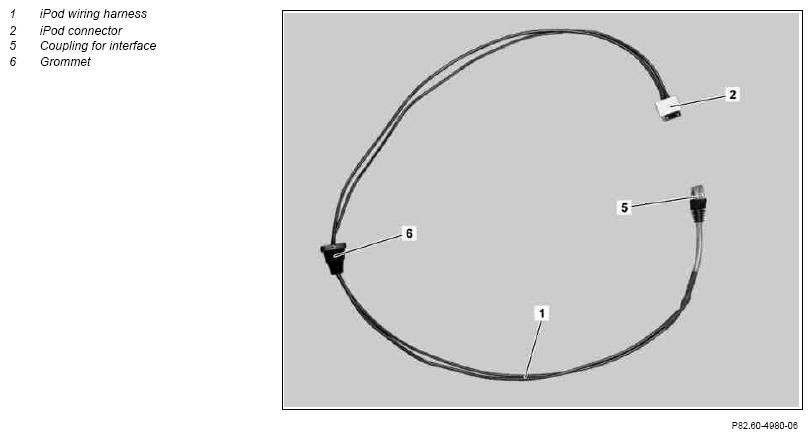

Fig 4: Identifying Ipod Wiring Harness Components
Courtesy of MERCEDES-BENZ USA

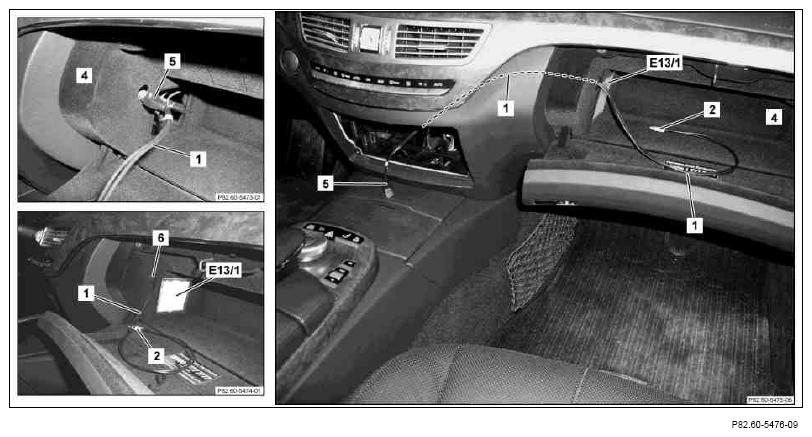

Fig 5: Routing Interface Coupling Of Ipod Wiring Harness
Courtesy of MERCEDES-BENZ USA
Route interface coupling (5) of iPod wiring harness (1) through drilled hole in glove compartment (4) into COMAND installation opening.
Seal hole with grommet (6).
Reinstall glove compartment lamp (E13/1) in glove compartment (4).
The iPod coupling (2) is later connected to the iPod. The interface connector (5) can be connected to the iPod interface later.
