Retrofit iPhone kit - AZ82.70-P-0013SY

MODEL 221.0## /1## (except 221.074 /077 /174 /177 /179) 1# as of 1.6.09 with CODE (518) Media interface with CODE (386) Preinstallation for cell phone, UPCI [UHI] system except CODE (494) USA version except CODE (498) Japan version except CODE (582) Rear air conditioner except CODE (Z07) Top protection

MODEL 221.0## /1## (except 221.074 /077 /174 /177 /179) 1# with CODE (800) Model year 2010 with CODE (518) Media interface with CODE (386) Preinstallation for cell phone, UPCI [UHI] system except CODE (494) USA version except CODE (498) Japan version except CODE (582) Rear air conditioner except CODE (Z07) Top protection

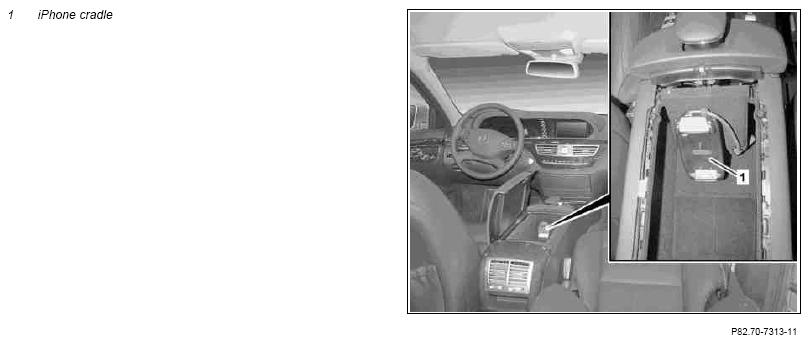

Fig 1: Locating Iphone Cradle

Courtesy of MERCEDES-BENZ USA

	Remove
	Notes on avoiding damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Detach center console	Do not detach wiring harnesses.	AR68.20-P-2000SXH
2	Detach right cover below instrument panel		AR68.10-P-1520SX
	Install
3	Retrofit iPhone kit wiring harness with iPhone cradle (1)	Rechargeable drill / screwdriver gotis://G_58.0_01.1	AZ82.70-P-0013-01SY
4	Install the cover on the right under the dashboard		AR68.10-P-1520SX
5	Fasten center console		AR68.20-P-2000SXH
	Checking
6	Check iPhone kit for proper operation
