Retrofit Tablet PC mount - AZ82.80-P-0003SX

MODEL 221.0## /1## 1# except CODE (864) Rear entertainment system except CODE (Z07) Top protection

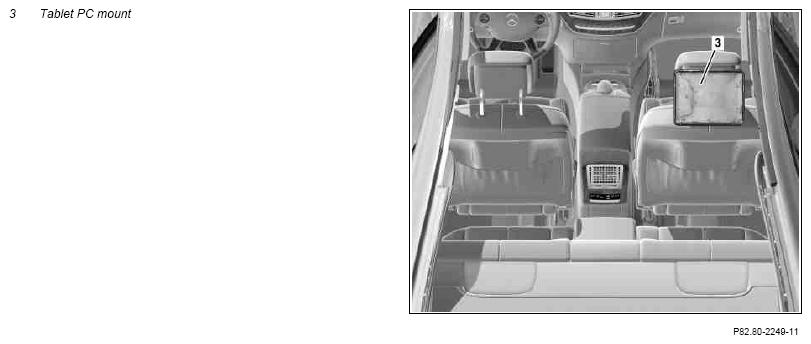

Fig 1: Identifying Tablet PC Mount

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
		The following work procedure is shown on the right side of the vehicle. Installation on the left side of the vehicle is performed correspondingly. Clarification shall need to be reached with the customer regarding the side of the vehicle on which the Tablet PC mount (3) is to be installed.
1	Release front seat		AR91.10-P-1000SX
2	Remove seat-back lining from left or right front seat backrest
3	Detach head restraint drive from front seat	Do not completely remove the head restraint, simply loosen it.	AR91.29-P-1200SX
	Install
4	Retrofit bracket for Tablet PC mount (3)		AZ82.80-P-0003-04SX
			*BA82.80-P-1001-01A
5	Retrofit Tablet PC control unit mount		AZ82.80-P-0003-01SX
6	Retrofit wiring harness for Tablet PC mount (3)	Fix the wiring harness in place on the seat such that adjustment of the seat is possible without limitation. Otherwise shearing off or crushing of the wiring harness may occur.	AZ82.80-P-0003-02SX
7	Retrofit Tablet PC mount (3)		AZ82.80-P-0003-03CW
8	Install remaining parts
9	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "Tablet PC mount retrofitted as per AZ82.80-P-0003SX " under field organization text to design group 82.
