Program rear entertainment infrared channel - AZ82.60-P-0015-05GZ

The infrared channel is programmed on the passenger-side using one of the two remote controls (32).

1. Switch on rear entertainment by pressing button (37).
2. Press button (28) on remote control (32).
3. Use button (30) to select "AUDIO"  menu item.
4. Confirm "AUDIO"  menu item with button (29).
5. Use button (30) to select "IR CHANNEL"  menu item.
6. With button (31) select "CHB"  menu item.
7. With button (28) close menu by pressing twice.

   Do not switch off rear entertainment.

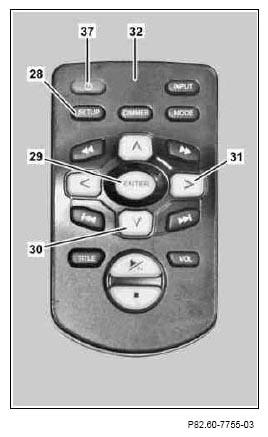

   Fig 1: Identifying Remote Control Buttons

   Courtesy of MERCEDES-BENZ USA
