Night View Assist, location of components - GF54.30-P-0005-01LE

Shown on model 221.0 as of 1.6.09

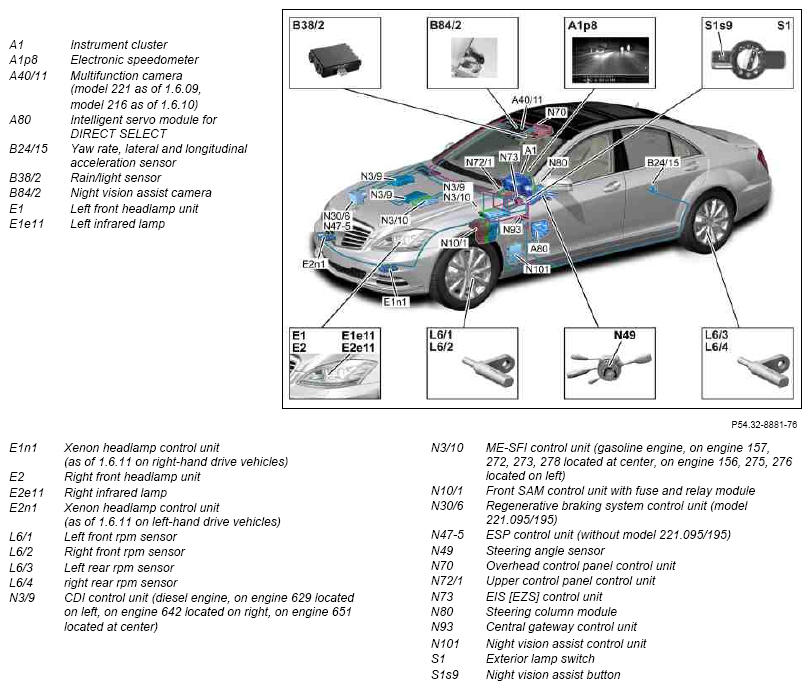

Fig 1: Locating Night View Assist Components

G07593809

Courtesy of MERCEDES-BENZ USA
