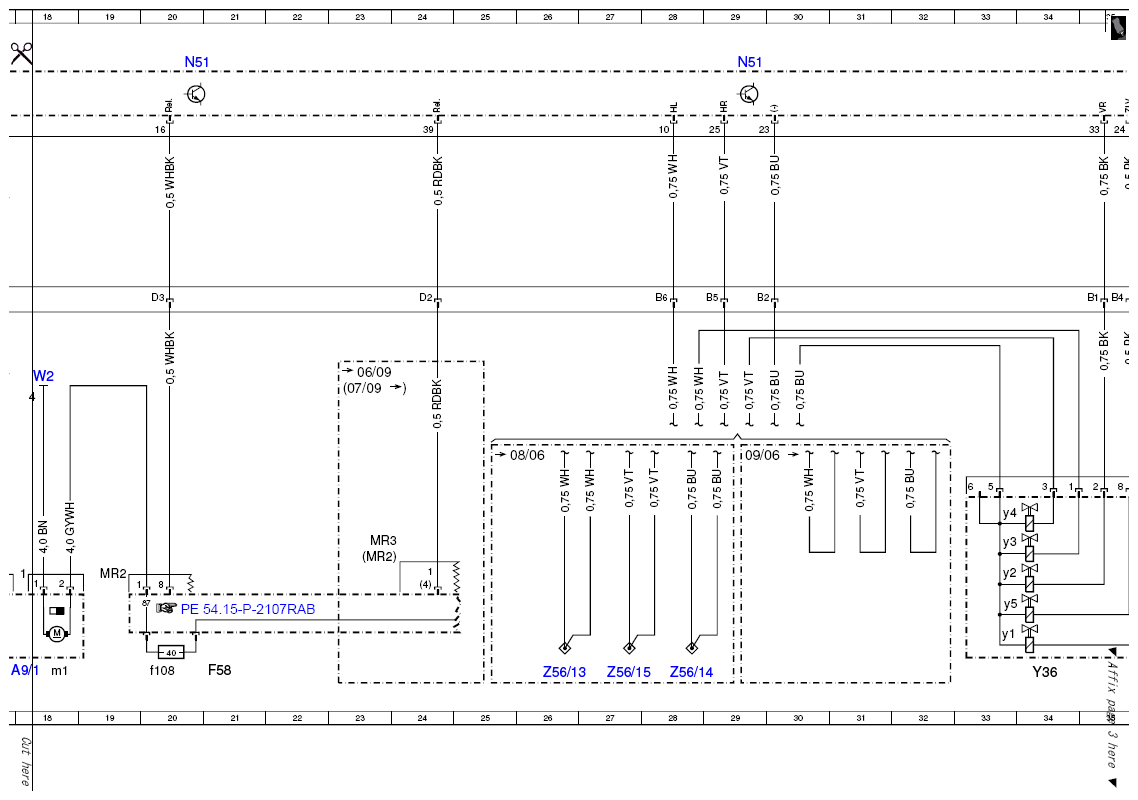

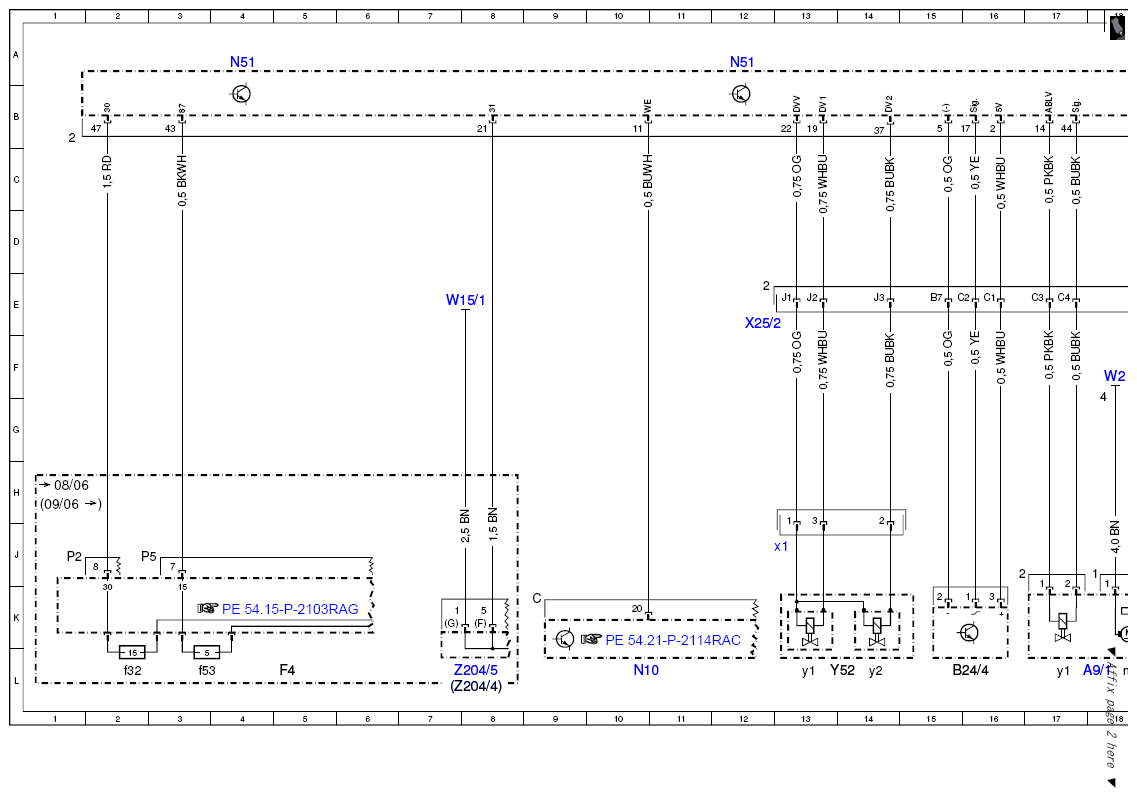

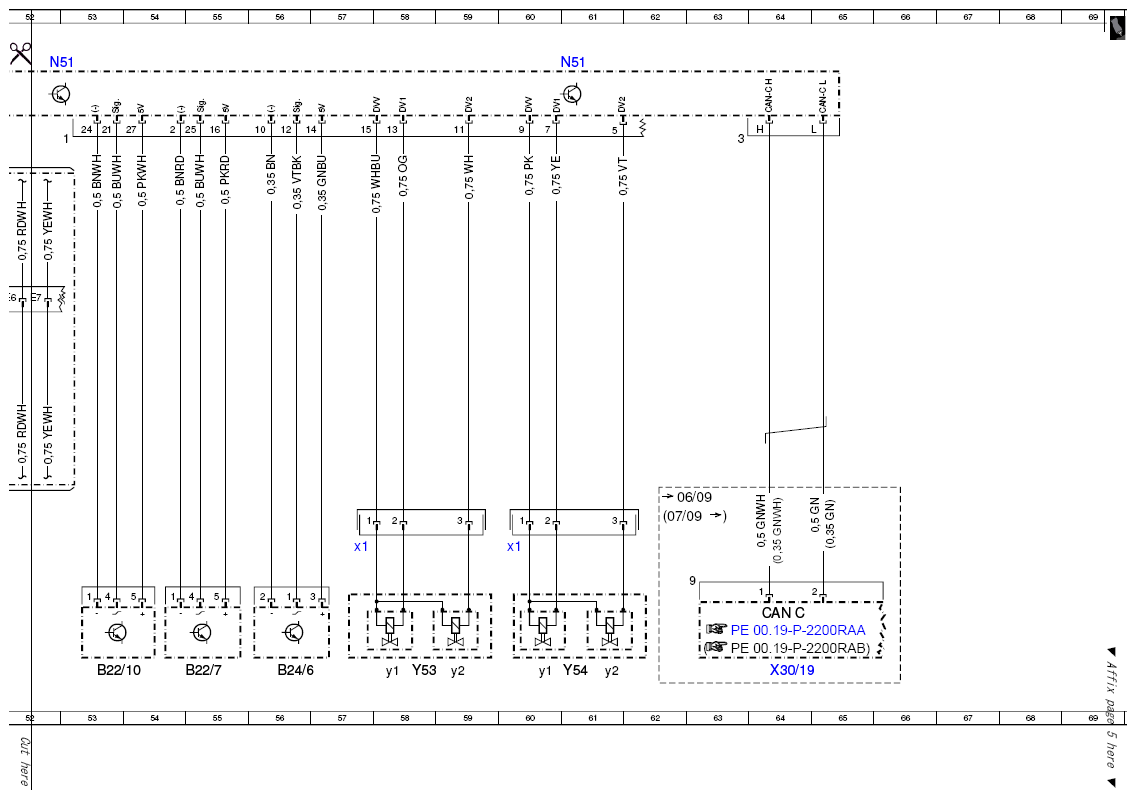

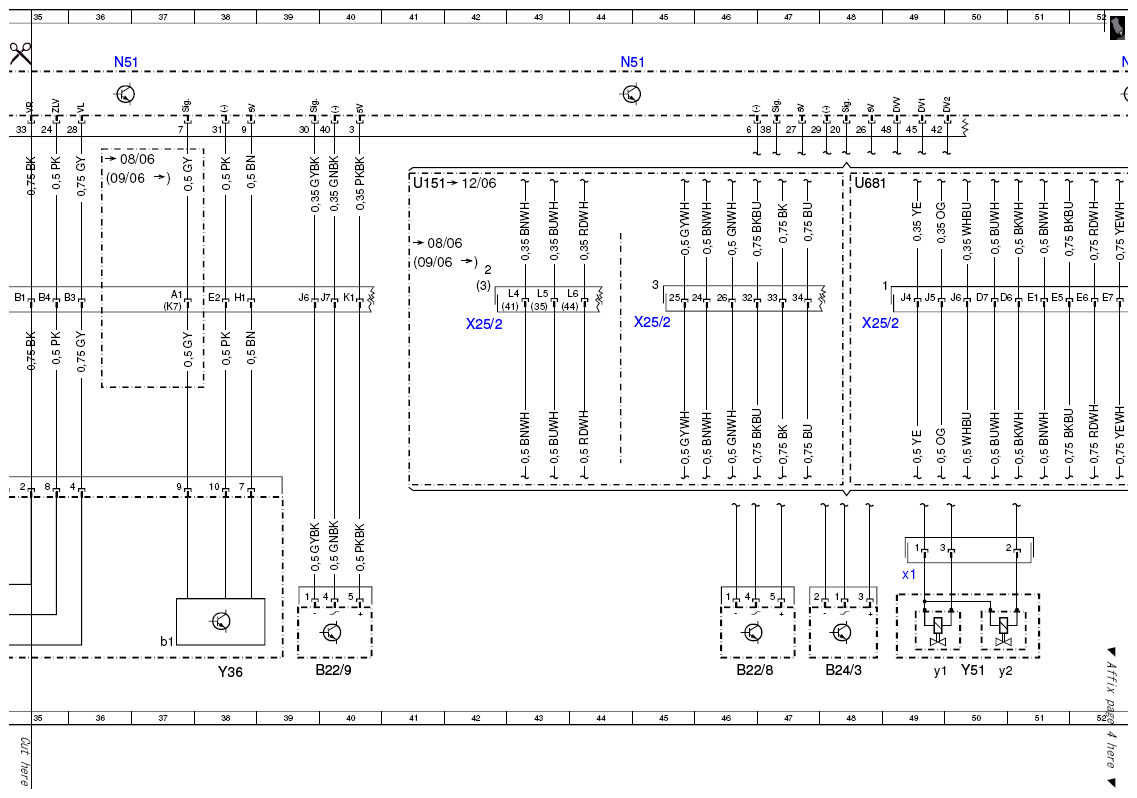

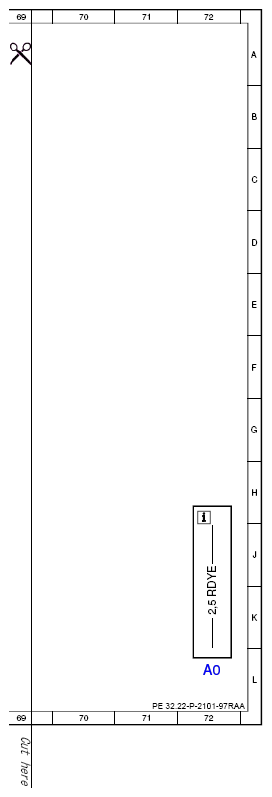

| A0 |
Color code key |
72L |
| A9/1 |
AIRMATIC compressor unit |
18L |
| A9/1m1 |
Air compressor motor |
18L |
| A9/1y1 |
AIRMATIC pressure reduction valve |
17L |
| B22/10 |
Right rear level sensor |
53L |
| B22/7 |
Left rear level sensor |
55L |
| B22/8 |
Left front level sensor |
46L |
| B22/9 |
Right front level sensor |
40L |
| B24/3 |
Left front body lateral acceleration sensor |
48L |
| B24/4 |
Right front body lateral acceleration sensor |
16L |
| B24/6 |
Right rear body lateral acceleration sensor |
56L |
| CAN C |
Engine compartment CAN |
64K |
| F4 |
Load compartment fuse and relay box |
5L |
| F4f32 |
Fuse 32 |
2L |
| F4f53 |
Fuse 53 |
3L |
| F58 |
Engine compartment fuse and relay box |
21L |
| F58f108 |
Fuse 108 |
20L |
| N10 |
Front SAM control unit |
10L |
| N51 |
AIRMATIC with ADS control unit |
4A |
| N51 |
AIRMATIC with ADS control unit |
12A |
| N51 |
AIRMATIC with ADS control unit |
29A |
| N51 |
AIRMATIC with ADS control unit |
36A |
| N51 |
AIRMATIC with ADS control unit |
61A |
| N51 |
AIRMATIC with ADS control unit |
20A |
| N51 |
AIRMATIC with ADS control unit |
44A |
| N51 |
AIRMATIC with ADS control unit |
52A |
| U151 |
Valid for engine 113 |
41C |
| U681 |
Valid for all except M113 |
48C |
| W15/1 |
Ground (right footwell) |
7E |
| W2 |
Ground (right front, at lamp unit) |
18F |
| X25/2 |
Engine compartment/interior compartment connector |
12E |
| X25/2 |
Engine compartment/interior compartment connector |
42E |
| X25/2 |
Engine compartment/interior compartment connector |
45E |
| X25/2 |
Engine compartment/interior compartment connector |
48E |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
64L |
| Y36 |
AIRmatic valve unit |
38L |
| Y36 |
AIRmatic valve unit |
34L |
| Y36b1 |
AIRMATIC pressure sensor |
37K |
| Y36y1 |
Left front level control valve |
33K |
| Y36y2 |
Right front level control valve |
33J |
| Y36y3 |
Left rear level control valve |
33J |
| Y36y4 |
Right rear level valve |
33H |
| Y36y5 |
AIRMATIC central reservoir charge valve |
33K |
| Y51 |
Left front axle damping valve unit |
50L |
| Y51x1 |
Left front axle damping valve unit connector |
49J |
| Y51y1 |
Solenoid valve 1, front left |
49L |
| Y51y2 |
Solenoid valve 2, front left |
50L |
| Y52 |
Right front axle damping valve unit |
14L |
| Y52x1 |
Right front axle damping valve unit connector |
13J |
| Y52y1 |
Solenoid valve 1, front right |
13L |
| Y52y2 |
Solenoid valve 2, front right |
14L |
| Y53 |
Left rear axle damping valve unit |
58L |
| Y53x1 |
Damping valve unit connector |
57J |
| Y53y1 |
Solenoid valve 1, rear left |
58L |
| Y53y2 |
Solenoid valve 2, rear left |
59L |
| Y54 |
Right rear axle damping valve unit |
61L |
| Y54x1 |
Damping valve unit connector |
60J |
| Y54y1 |
Solenoid valve 1, rear right |
60L |
| Y54y2 |
Solenoid valve 2, rear right |
61L |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
8L |
| Z204/5 |
Circuit 31 left footwell voltage distributor connector (1) |
8L |
| Z56/13 |
Left rear air suspension valve engine compartment solder point |
26L |
| Z56/14 |
Right rear air suspension valve engine compartment solder point |
28L |
| Z56/15 |
Rear air suspension valve engine compartment solder point (-) |
27L |
