| A0 |

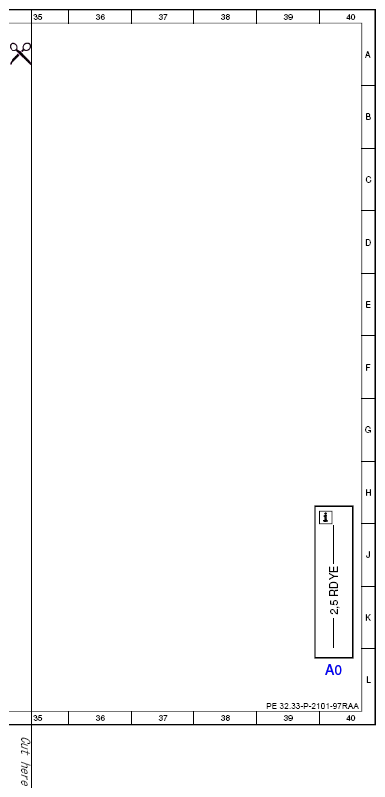

Color code key |
40L |
| A9/1 |

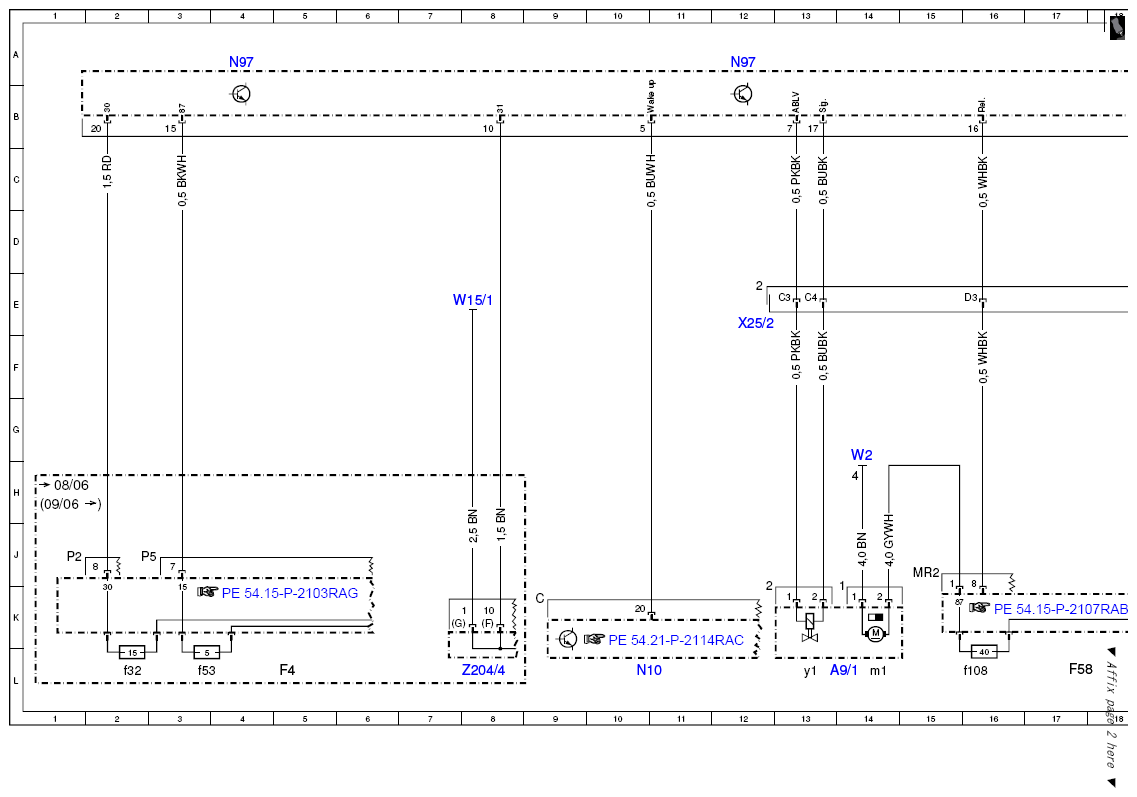

AIRMATIC compressor unit |
13L |
| A9/1m1 |
Air compressor motor |
14L |
| A9/1y1 |
AIRMATIC pressure reduction valve |
13L |
| B22/10 |
Right rear level sensor |
28L |
| B22/7 |
Left rear level sensor |
29L |
| CAN C |
Engine compartment CAN |
32K |
| F4 |
Load compartment fuse and relay box |
5L |
| F4f32 |
Fuse 32 |
2L |
| F4f53 |
Fuse 53 |
3L |
| F58 |
Engine compartment fuse and relay box |
17L |
| F58f108 |
Fuse 108 |
16L |
| N10 |
Front SAM control unit |
10L |
| N97 |
Rear axle level control system control unit |
12A |
| N97 |
Rear axle level control system control unit |
4A |
| N97 |
Rear axle level control system control unit |
20A |
| N97 |
Rear axle level control system control unit |
28A |
| W15/1 |
Ground (right footwell) |
8E |
| W2 |
Ground (right front, at lamp unit) |
14G |
| X25/2 |
Engine compartment/interior compartment connector |
12E |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
32L |

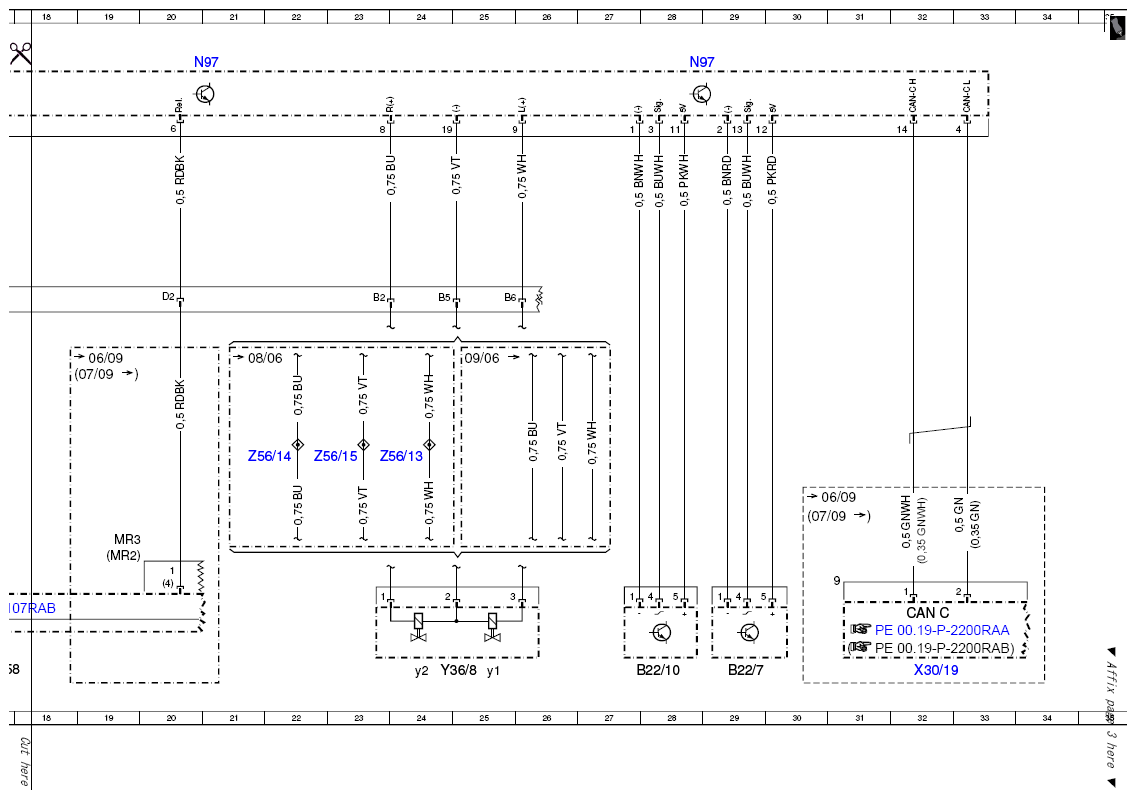

| Y36/8 |
Electronic rear axle level control valve unit |
24L |
| Y36/8y1 |
Left rear level control valve |
25L |
| Y36/8y2 |
Right rear level control valve |
24L |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
8L |
| Z56/13 |
Left rear air suspension valve engine compartment solder point |
24G |
| Z56/14 |
Right rear air suspension valve engine compartment solder point |
22G |
| Z56/15 |
Rear air suspension valve engine compartment solder point (-) |
23G |
