Electric wiring diagram of solder joints/Z connector sleeves - PE00.19-U-2600-99RAD

MODEL 251 Z50/5, Z51/6, Z204, sheet 4

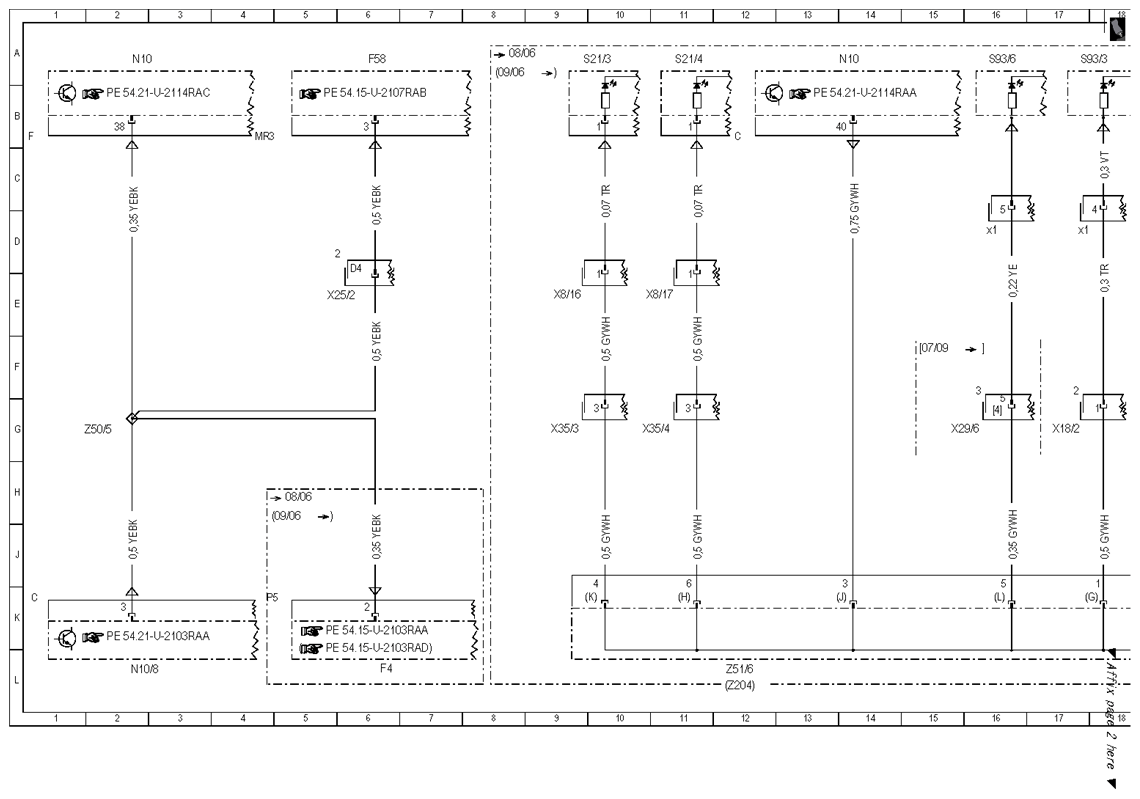

Fig 1: Solder Joints/Z Connector Sleeves Electric Wiring Diagram (9 Of 12)

Courtesy of MERCEDES-BENZ USA

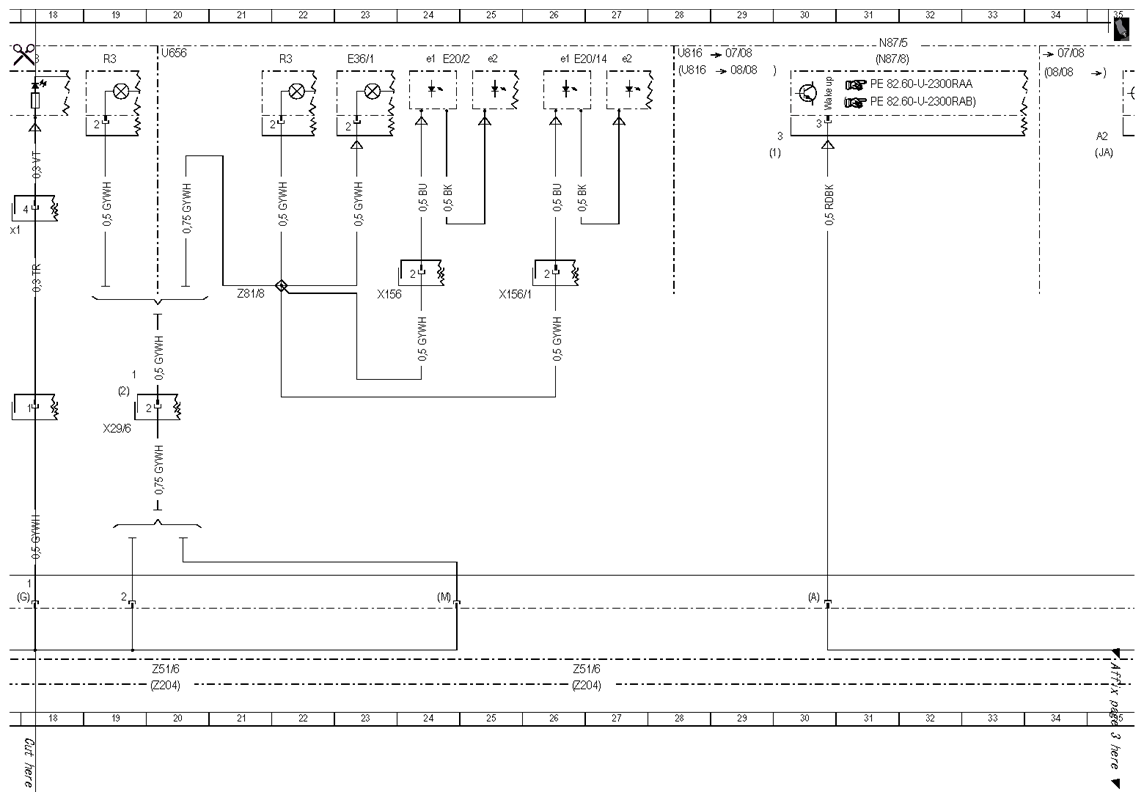

Fig 2: Solder Joints/Z Connector Sleeves Electric Wiring Diagram (10 Of 12)

Courtesy of MERCEDES-BENZ USA

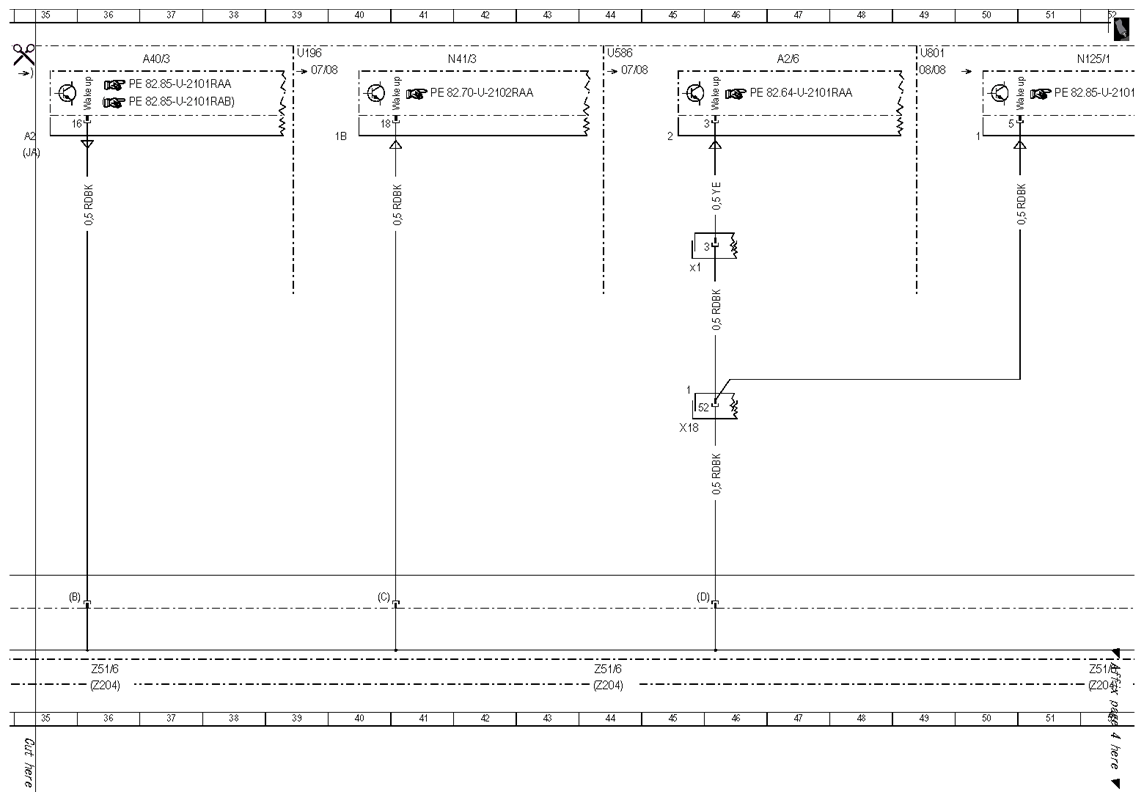

Fig 3: Solder Joints/Z Connector Sleeves Electric Wiring Diagram (11 Of 12)

Courtesy of MERCEDES-BENZ USA

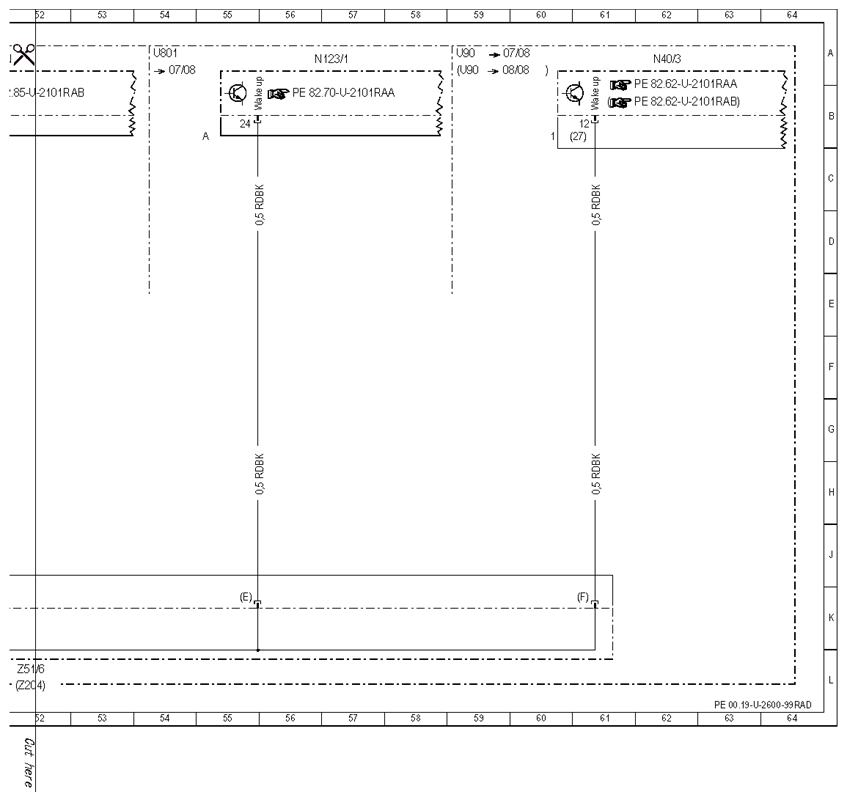

Fig 4: Solder Joints/Z Connector Sleeves Electric Wiring Diagram (12 Of 12)

Courtesy of MERCEDES-BENZ USA
