Location and assignment of line and plug connectors, engine compartment, left - GF00.19-P-1000-01RAA

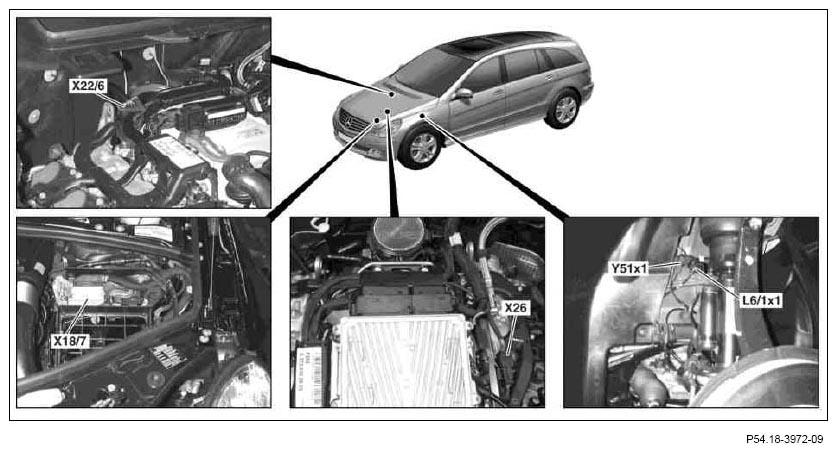

Fig 1: Left Engine Compartment Line And Plug Connectors Location (1 Of 3)
G07005085Courtesy of MERCEDES-BENZ USA

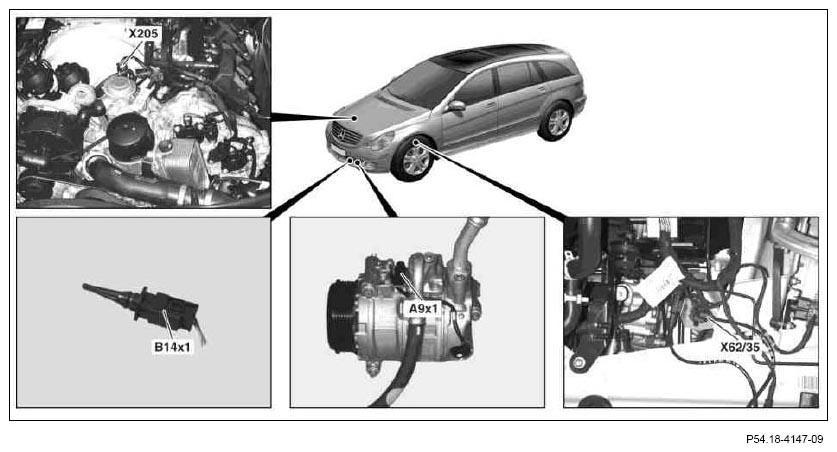

Fig 2: Left Engine Compartment Line And Plug Connectors Location (2 Of 3)
G07005086Courtesy of MERCEDES-BENZ USA

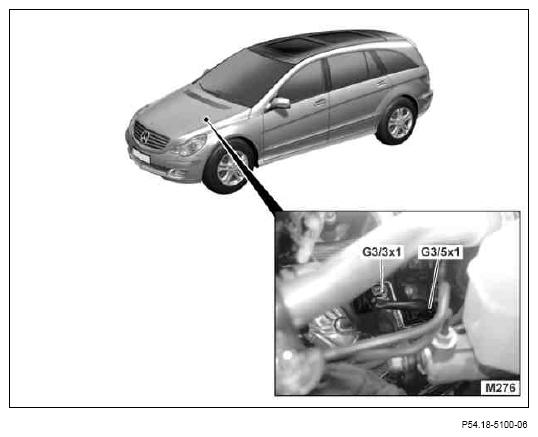

Fig 3: Left Engine Compartment Line And Plug Connectors Location (3 Of 3)
G10120222Courtesy of MERCEDES-BENZ USA
Code Designation Line colors Line colors Notes
A9x1 Refrigerant compressor connector PLUG 1 SOCKET GNBU
PLUG 2 SOCKET BN
B14x1 Outside temperature indicator temperature sensor connector PLUG 1 SOCKET BUWH
PLUG 2 SOCKET BN
G3/3x1 Connector, left 02 sensor, upstream CAT PLUG 1 SOCKET GYRD M276
PLUG 2 SOCKET GYWH M276
PLUG 3 SOCKET VTBN M276
PLUG 4 SOCKET RDGN M276
PLUG 5 SOCKET GYWH M276
PLUG 6 SOCKET BNBK M276
G3/5x1 Connector, left 02 sensor, downstream CAT PLUG 1 SOCKET RDGN M276
PLUG 2 SOCKET YEVT M276
PLUG 3 SOCKET BNGN M276
PLUG 4 SOCKET BUVT M276
L6/1x1 Rpm sensor connector GNBK PLUG 1 SOCKET GNBK
BUBK PLUG 2 SOCKET BUBK
X18/7 Interior/engine connector
  M642.9 RDBH PLUG 1 SOCKET PKWH
RDGN PLUG 2 SOCKET PKBK
BUGN PLUG 3 SOCKET VTBK Up to 09/06
VT PLUG 4 SOCKET PK
BN PLUG 5 SOCKET BN
  6
BN PLUG 7 SOCKET BN Up to 09/06
PLUG 8 SOCKET BN
  M642.8 RDBH PLUG 1 SOCKET PKWH
RDGN PLUG 2 SOCKET PKBK
BUGN PLUG 3 SOCKET VTBN
VT PLUG 4 SOCKET PK
BN PLUG 5 SOCKET BN
PLUG 6 SOCKET BKBU
BN PLUG 7 SOCKET BN
PLUG 8 SOCKET BN
PLUG 9 SOCKET PKWH
  M113 GYWH PLUG 2 SOCKET RDBK
GYBN PLUG 4 SOCKET WHBK
BK PLUG 5 SOCKET YEBK
BKWH PLUG 6 SOCKET GYBU
YE PLUG 7 SOCKET GNBU
YEWH PLUG 8 SOCKET BKWH
GN PLUG 9 SOCKET BUWH
GNWH PLUG 10 SOCKET BNWH
BU PLUG 11 SOCKET GYWH
BUWH PLUG 12 SOCKET GNWH
VT PLUG 13 SOCKET PKWH
VTWH PLUG 14 SOCKET VTWH
GY PLUG 15 SOCKET RDWH
GYWH PLUG 16 SOCKET YEWH
WH PLUG 17 SOCKET YEBU
WHBU PLUG 18 SOCKET BKBU
RD PLUG 19 SOCKET BK
RDWH PLUG 20 SOCKET BU
BU PLUG 21 SOCKET GY
VT PLUG 22 SOCKET GN
GY PLUG 23 SOCKET PK
BK PLUG 24 SOCKET VT
WH PLUG 25 SOCKET WH
YE PLUG 26 SOCKET YE
BK PLUG 27 SOCKET GN
YE PLUG 28 SOCKET OG
BK PLUG 29 SOCKET GNWH
VT PLUG 30 SOCKET WHBU
GN PLUG 31 SOCKET BNBK
GNWH PLUG 32 SOCKET BUBK
RDGY PLUG 33 SOCKET GYBK
BNYE PLUG 34 SOCKET GNBK
BN PLUG 35 SOCKET BN
YEGN PLUG 36 SOCKET PKBK
YEWH PLUG 37 SOCKET VTBK
GYBU PLUG 38 SOCKET RDBK
RDYE PLUG 39 SOCKET WH
BNGN PLUG 40 SOCKET BN
GN PLUG 41 SOCKET GNBK
PK PLUG 42 SOCKET WHBK
GNRD PLUG 43 SOCKET YEBK
PKBK PLUG 44 SOCKET GYBU
BK PLUG 45 SOCKET GNBU
BNGY PLUG 46 SOCKET BKWH
BKBN PLUG 47 SOCKET BUWH
RDWH PLUG 51 SOCKET GNWH
GYBK PLUG 52 SOCKET PKWH
GYRD PLUG 53 SOCKET VTWH
GYGN PLUG 54 SOCKET RDWH
GYBU PLUG 55 SOCKET YEWH
GYYE PLUG 56 SOCKET YEBU
GYVT PLUG 57 SOCKET BKBU
GYPK PLUG 58 SOCKET BK
GYBN PLUG 59 SOCKET BU
GNVT PLUG 60 SOCKET GY
X22/6 Automatic transmission/intelligent servo module connector   1
GNWH PLUG 2 SOCKET GNWH
GN PLUG 3 SOCKET GN
GNWH PLUG 4 SOCKET GNWH
GN PLUG 5 SOCKET GN
BN PLUG 6 SOCKET BN
RD PLUG 7 SOCKET RD
BK PLUG 8 SOCKET BK
RDVT PLUG 9 SOCKET RDBK
X26 Interior and engine wiring harness connector
  M113 BNWH PLUG 1 SOCKET BNWH
GNWH PLUG 2 SOCKET GNWH
WHBK PLUG 3 SOCKET WHBK
GNWH PLUG 4 SOCKET GNWH
BNBK PLUG 5 SOCKET BNBK
BN PLUG 6 SOCKET BN
WH PLUG 7 SOCKET WHBK
PKWH PLUG 8 SOCKET PKWH
GNBU PLUG 9 SOCKET VTBK
PK PLUG 10 SOCKET PK
PKBK PLUG 11 SOCKET PKBK
VTWH PLUG 12 SOCKET GYWH
RDBU PLUG 13 SOCKET PKBK
PDBK PLUG 14 SOCKET PKBK
    BN PLUG 1.2 SOCKET BN M272, M273
VTWH PLUG 1.3 SOCKET RDWH M272, M273
RDBU PLUG 1.4 SOCKET PK M272
RDGY PLUG 1.4 SOCKET PK M273
RDGN PLUG 1.5 SOCKET PKBK M272, M273
BNBK PLUG 1.6 SOCKET BNBK
PLUG 1.7 SOCKET GYOG M272, M273
RDBH PLUG 1.8 SOCKET PKBU M272, M273
RDBN PLUG 1.8 SOCKET PKBU M156
GNBU PLUG 2.1 SOCKET VTBK M156
BUGN PLUG 2.1 SOCKET VTBK M272, M273
PKBK PLUG 2.2 SOCKET WHBU M272, M273
WHBU PLUG 2.2 SOCKET M272, M273
BNVT PLUG 2.2 SOCKET BU M156
RDWh PLUG 2.3 SOCKET VT M156
RDBU PLUG 2.4 SOCKET PK
RDGN PLUG 2.5 SOCKET PKBK M156, M272, M273
RDBH PLUG 2.5 SOCKET PKBK
BN PLUG 2.6 SOCKET BN M156, M272, M273
BN PLUG 2.7 SOCKET BNVT M156
PLUG 2.7 SOCKET GYOG M273
RDBN PLUG 2.8 SOCKET PKBU
X62/35 BWI [BBV]/rpm left front axle connector GNBK PLUG 3 SOCKET GNBK
BUBK PLUG 4 SOCKET BUBK
X205 Tumble flap/variable intake manifold switchover valves connector
  M272 PLUG 1 SOCKET VTBU
PLUG 2 SOCKET RDGN
PLUG 3 SOCKET VTGN
  M273 VTWH PLUG 1 SOCKET VTWH
RDGN PLUG 2 SOCKET RDGN
RDGN PLUG
GNBU PLUG 3 SOCKET GNBU
Y51x1 Left front axle damping valve unit connector PLUG 1 SOCKET BKBU
PLUG 2 SOCKET BU M113
PLUG 2 SOCKET YEWH except M113
PLUG 3 SOCKET BK M113
PLUG 3 SOCKET RDWH except M113
