Wiring diagram ME-SFI fuel injection and ignition system control module - PE07.61-U-2101-99RAD

Code: Designation: Position:
B11/4 Coolant temperature sensor 23 L
B2/5b1 Intake air temperature sensor 7 L
B28 Pressure sensor 19 L
B28/10 Right intake manifold tumble flap position sensor 20 L
B28/9 Left intake manifold tumble flap position sensor 22 L
B6/4 Left intake camshaft Hall sensor 14 L
B6/5 Right intake camshaft Hall sensor 9 L
B6/6 Left exhaust camshaft Hall sensor 17 L
B6/7 Right exhaust camshaft Hall sensor 11 L
C4/1 Radio interference suppression capacitor 1 61 L
C4/2 Radio interference suppression capacitor 2 66 L
G2 Alternator 2 L
G3/3 Left O2 sensor upstream of TWC [KAT] 34 L
G3/3x1 Left O2 sensor upstream of TWC [KAT] connector 33 J
G3/4 Right O2 sensor upstream of TWC [KAT] 31 L
G3/4x1 Right O2 sensor upstream of TWC [KAT] connector 30 J
G3/5 Left O2 sensor downstream of TWC [KAT] 29 L
G3/5x1 Left O2 sensor downstream of TWC [KAT] connector 28 K
G3/6 Right O2 sensor downstream of TWC [KAT] 26 L
G3/6x1 Right O2 sensor downstream of TWC [KAT] connector 25 K
M1 Starter 5 L
N3/10 ME-SFI [ME] control unit 4 A
N3/10 ME-SFI [ME] control unit 12 A
N3/10 ME-SFI [ME] control unit 21 A
N3/10 ME-SFI [ME] control unit 28 A
N3/10 ME-SFI [ME] control unit 35 A
N3/10 ME-SFI [ME] control unit 44 A
N3/10 ME-SFI [ME] control unit 52 A
N3/10 ME-SFI [ME] control unit 60 A
N3/10 ME-SFI [ME] control unit 68 A
N3/10 ME-SFI [ME] control unit 76 A
R4 Spark plugs 56 L
R4 Spark plugs 58 L
R4 Spark plugs 59 L
R4 Spark plugs 68 L
R4 Spark plugs 70 L
R4 Spark plugs 72 L
T1/1 Cylinder 1 ignition coil 55 K
T1/2 Cylinder 2 ignition coil 57 K
T1/3 Cylinder 3 ignition coil 59 K
T1/4 Cylinder 4 ignition coil 67 K
T1/5 Cylinder 5 ignition coil 69 K
T1/6 Cylinder 6 ignition coil 71 K
W11w1 Ground (engine - electrical line connected), left cylinder bank 57 G
W11w2 Ground (engine - electrical line connected), right cylinder bank 69 G
W15/1 Ground (right footwell) 13 G
X205 Tumble flap/variable intake manifold switchover valves connector 75 G
Y10/1 Power steering pump pressure regulator valve 74 L
Y110 Three-disk thermostat valve 73 L
Y16/2 Heating system shutoff valve 79 L
Y22/6 Variable intake manifold switchover valve 76 L
Y22/9 Intake manifold tumble flap switchover valve 75 L
Y32 Air pump switchover valve 78 L
Y49/4 Left intake camshaft solenoid 51 L
Y49/5 Right intake camshaft solenoid 39 L
Y49/6 Left exhaust camshaft solenoid 54 L
Y49/7 Right exhaust camshaft solenoid 37 L
Y62 Fuel injection valves 43 L
Y62y1 Cylinder 1 fuel injection valve 44 L
Y62y2 Cylinder 2 fuel injection valve 43 L
Y62y3 Cylinder 3 fuel injection valve 42 L
Y62y4 Cylinder 4 fuel injection valve 47 L
Y62y5 Cylinder 5 fuel injection valve 45 L
Y62y6 Cylinder 6 fuel injection valve 46 L
Z201z10 Capillary stopper connector sleeve 36 H
Z201z3 Capillary stopper connector sleeve 51 G
Z201z4 Capillary stopper connector sleeve 50 H
Z201z5 Capillary stopper connector sleeve 53 G
Z201z6 Capillary stopper connector sleeve 52 H
Z201z7 Capillary stopper connector sleeve 39 G
Z201z8 Capillary stopper connector sleeve 38 H
Z201z9 Capillary stopper connector sleeve 37 G
Z204/4 Circuit 31 right footwell voltage distributor connector 12 L
Z5z2 Connector sleeve (solder connector in harness) 20 G
Z6/26 Sensor supply connector sleeve 26 G
Z6/27 Sensor ground connector sleeve 26 G
Z6/48z1 Circuit 31 connector sleeve 56 E
Z6/48z2 Circuit 31 connector sleeve 69 E
Z7/35z1 Circuit 87 M1e connector sleeve 48 G
Z7/35z1 Circuit 87 M1e connector sleeve 59 E
Z7/35z2 Circuit 87 M1e connector sleeve 15 G
Z7/35z2 Circuit 87 M1e connector sleeve 68 E
Z7/36z1 Circuit 87 M2e connector sleeve 24 F
Z7/36z1 Circuit 87 M2e connector sleeve 32 G
Z7/36z1 Circuit 87 M2e connector sleeve 77 G
Z7/36z2 Circuit 87 M2e connector sleeve 77 E
Z7/38z1 Circuit 87 M1i connector sleeve 8 E
Z7/38z1 Circuit 87 M1i connector sleeve 41 G
Z7/38z2 Circuit 87 M1i connector sleeve 15 G
Z7/38z2 Circuit 87 M1i connector sleeve 48 G
Z7/38z2 Circuit 87 M1i connector sleeve 63 H
Z7/43 Sensor ground connector sleeve 10 E
Z7/43 Sensor ground connector sleeve 19 G
Z7/44 Sensor ground connector sleeve 13 E
Z7/44 Sensor ground connector sleeve 23 G

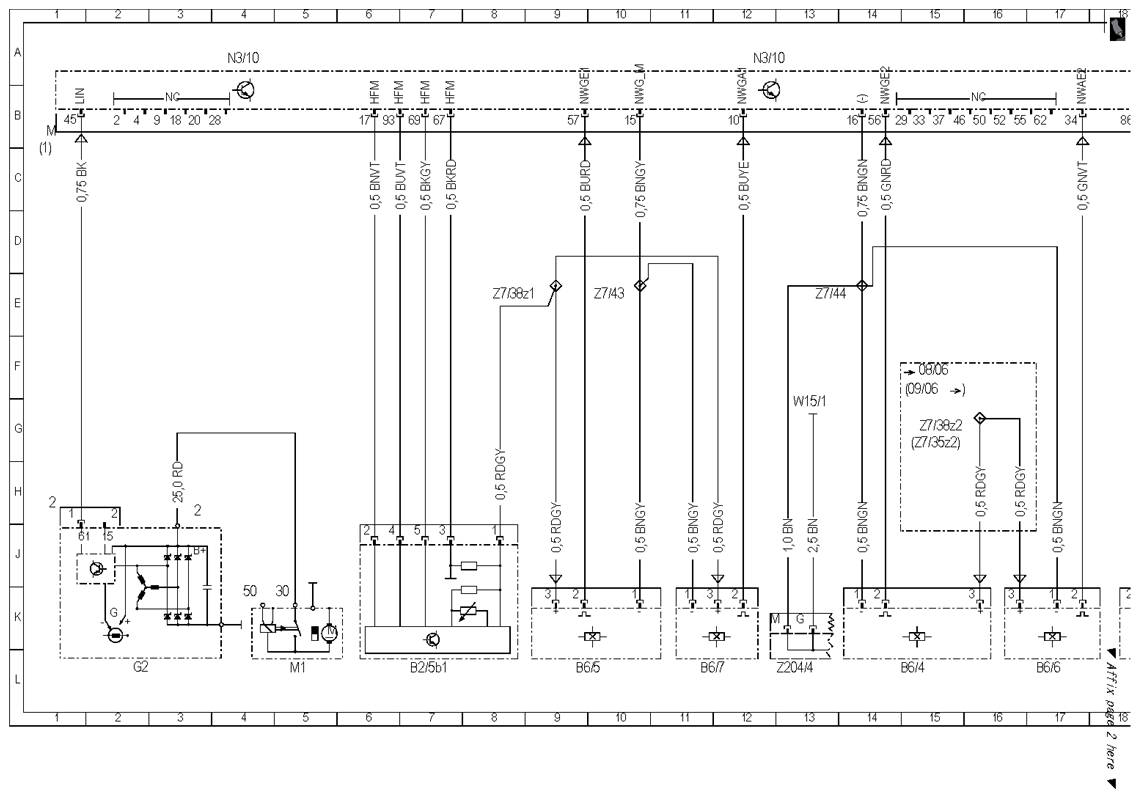

Fig 1: ME-SFI Fuel Injection And Ignition System Control Module Wiring Diagram (1 Of 5)
G10120468Courtesy of MERCEDES-BENZ USA

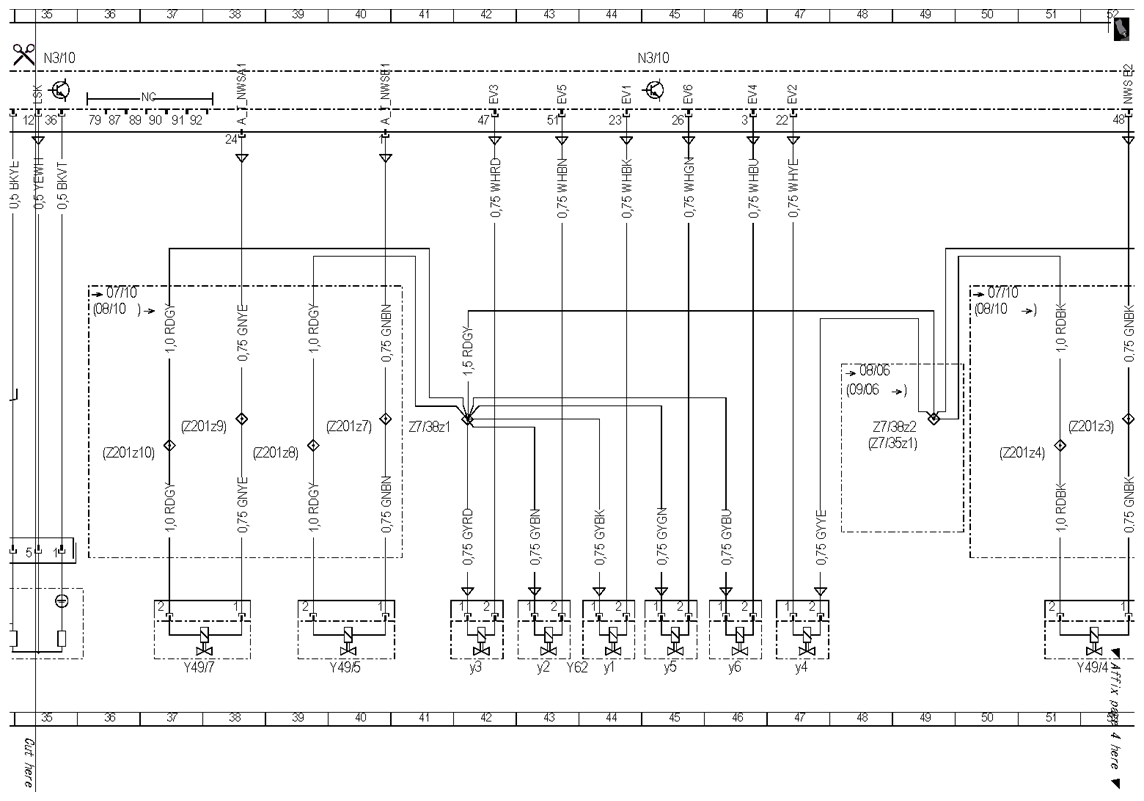

Fig 2: ME-SFI Fuel Injection And Ignition System Control Module Wiring Diagram (2 Of 5)
G10120469Courtesy of MERCEDES-BENZ USA

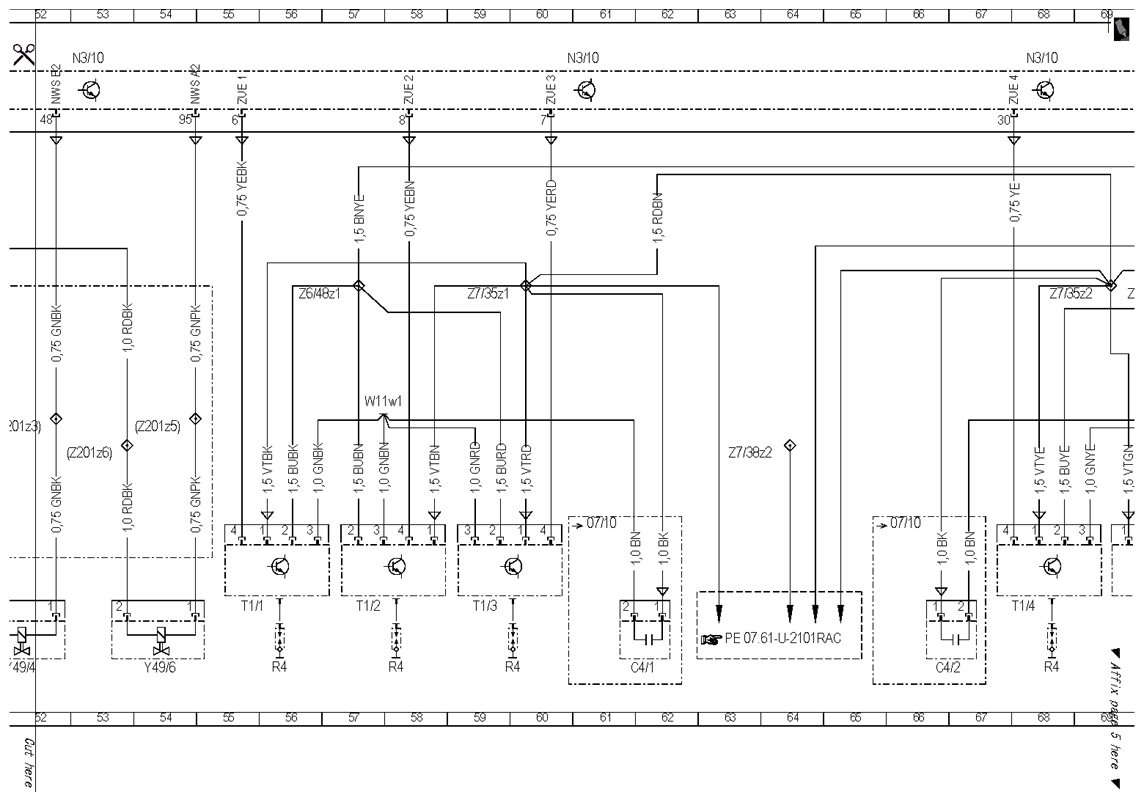

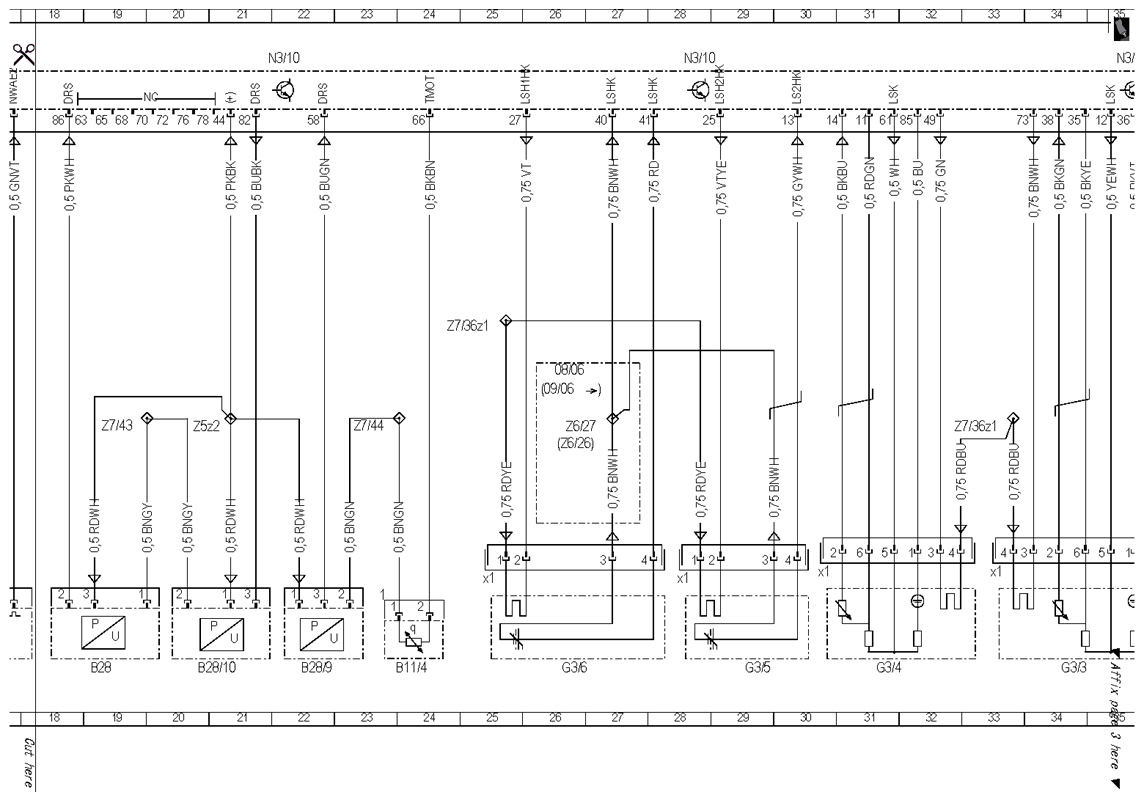

Fig 3: ME-SFI Fuel Injection And Ignition System Control Module Wiring Diagram (3 Of 5)
G10120470Courtesy of MERCEDES-BENZ USA
Fig 4: ME-SFI Fuel Injection And Ignition System Control Module Wiring Diagram (4 Of 5)
G10120471Courtesy of MERCEDES-BENZ USA

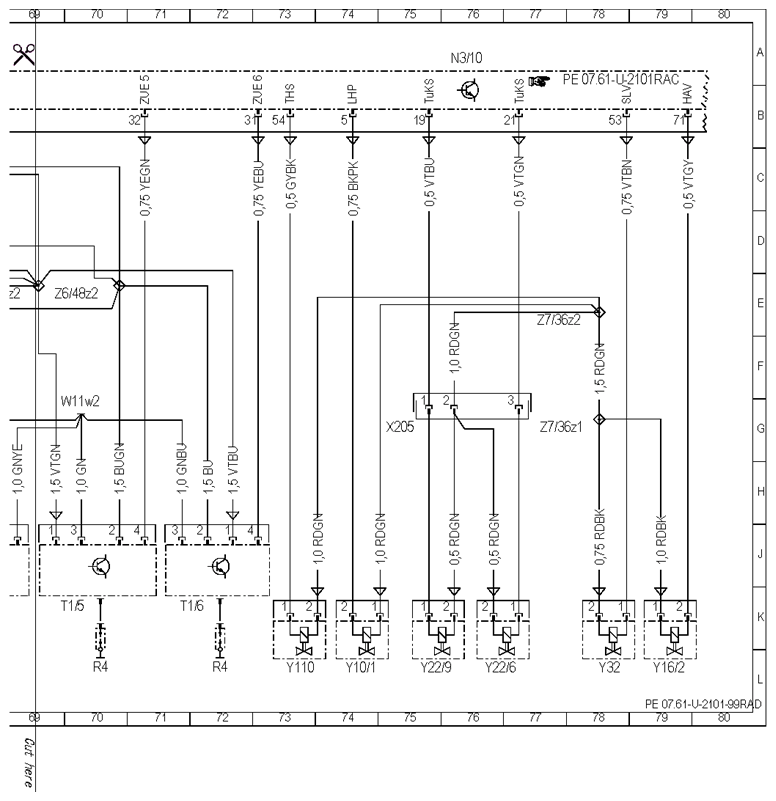

Fig 5: ME-SFI Fuel Injection And Ignition System Control Module Wiring Diagram (5 Of 5)
