Electrical function schematic for injection control - PE07.61-U-2788-99RAA

ENGINE 272, 273 in MODEL 251 as of Model Year 2009

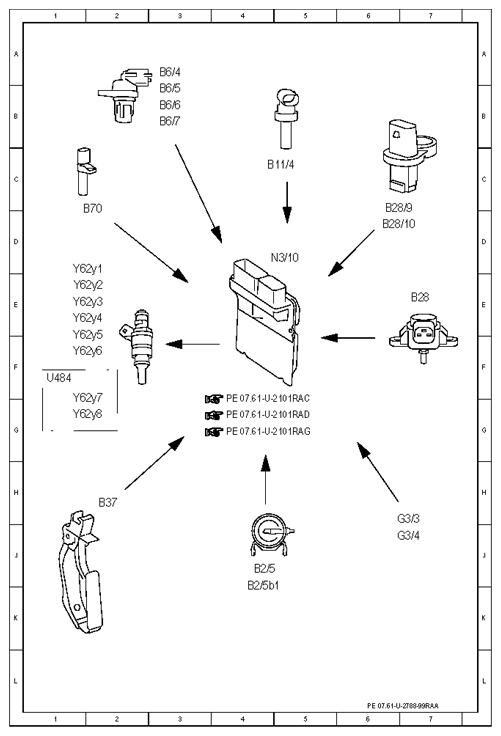

Fig 1: Starting, Post-Start Phase And Warm-Up Enrichment Electrical Function Schematic

Courtesy of MERCEDES-BENZ USA
