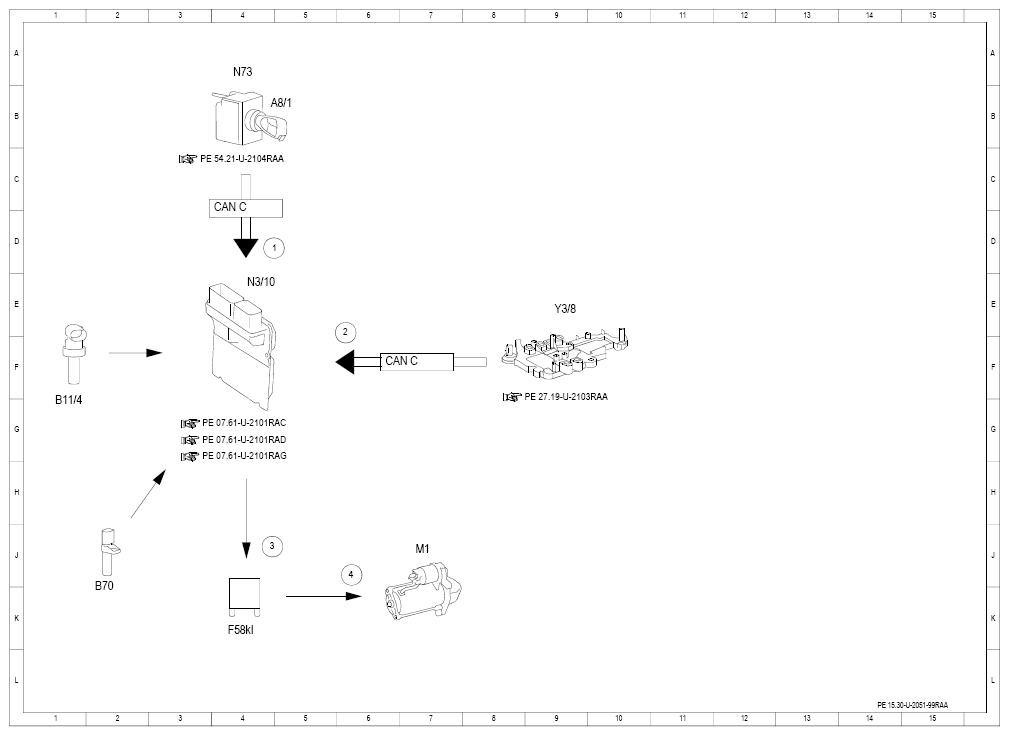

Electrical function diagram for starter control - PE15.30-U-2051-99RAA
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 50, status | 4 D |
| 2 | Gear range, status | 6 F |
| 3 | Starter relay, actuation | 4 J |
| 4 | Starter, actuation | 6 J |
| A8/1 | Transmitter key | 4 B |
| B11/4 | Coolant temperature sensor | 1 G |
| B70 | Crankshaft Hall sensor | 2 K |
| CAN C | Engine compartment CAN | 3 D |
| CAN C | Engine compartment CAN | 6 F |
| F58kI | Starter relay | 4 K |
| M1 | Starter | 7 J |
| N3/10 | ME-SFI [ME] control unit | 4 E |
| N73 | EIS [EZS] control unit | 4 A |
| Y3/8 | Electric control unit (VGS) | 9 E |
