| 1 |
Blind spot assist, status |
12 D |
| 1 |
Blind spot assist, status |
16 D |
| 10 |
Blind Spot Assist readiness and warning indicator, actuation |
2 D |
| 11 |
Combination switch, status |
12 K |
| 11 |
Combination switch, status |
14 F |
| 12 |
Instrument cluster, message |
11 A |
| 13 |
Warning tone, request |
12 A |
| 2 |
Circuit 61, status |
18 F |
| 3 |
Gear range, status |
15 F |
| 4 |
Wheel speed, signal |
17 F |
| 4 |
Wheel speed, signal |
21 H |
| 5 |
Wheel rotation direction, signal |
17 F |
| 5 |
Wheel rotation direction, signal |
20 H |
| 6 |
GPS, signal |
4 H |
| 7 |
Navigation data, signal |
8 E |
| 7 |
Navigation data, signal |
12 F |
| 8 |
Circuit 15, status |
13 F |
| 9 |
Blind Spot Assist readiness and warning indicator, request |
5 D |
| 9 |
Blind Spot Assist readiness and warning indicator, request |
9 D |
| 9 |
Blind Spot Assist readiness and warning indicator, request |
13 D |

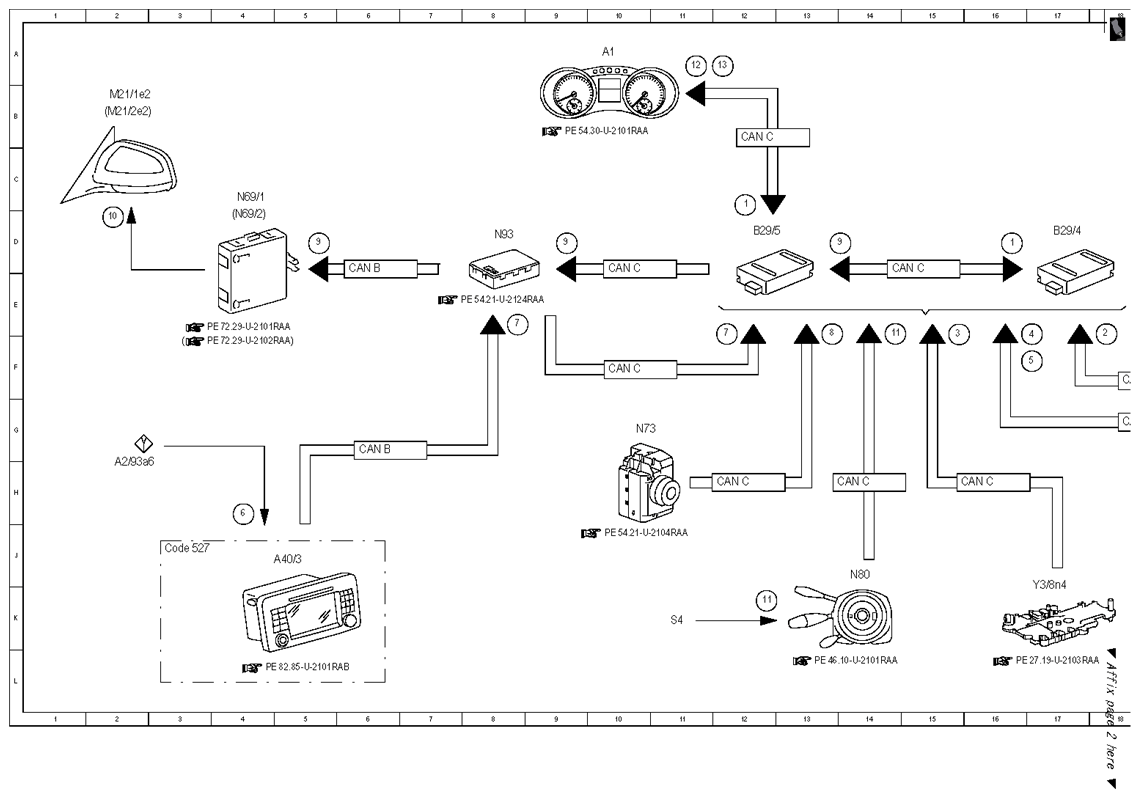

| A1 |
Instrument cluster |
10 A |
| A2/93a6 |
GPS antenna |
2 H |
| A40/3 |
COMAND operating, display and control unit |
4 J |
| B29/4 |
Left rear bumper intelligent radar sensor |
17 D |
| B29/5 |
Right rear bumper intelligent radar sensor |
12 D |
| CAN B |
Interior CAN |
6 E |
| CAN B |
Interior CAN |
6 G |
| CAN C |
Engine compartment CAN |
10 E |
| CAN C |
Engine compartment CAN |
10 F |
| CAN C |
Engine compartment CAN |
12 H |
| CAN C |
Engine compartment CAN |
12 B |
| CAN C |
Engine compartment CAN |
13 H |
| CAN C |
Engine compartment CAN |
14 E |
| CAN C |
Engine compartment CAN |
15 H |
| CAN C |
Engine compartment CAN |
18 G |
| CAN C |
Engine compartment CAN |
18 F |
| Code 527 |
COMAND APS (with navigation) |
3 J |
| L6/1 |
Left front RPM sensor |
20 K |
| L6/2 |
Right front RPM sensor |
20 K |
| L6/3 |
Left rear RPM sensor |
20 K |
| L6/4 |
right rear RPM sensor |
20 L |
| M21/1e2 |
Left Blind Spot Assist readiness and warning indicator |
2 B |
| M21/2e2 |
Right Blind Spot Assist readiness and warning indicator |
2 B |

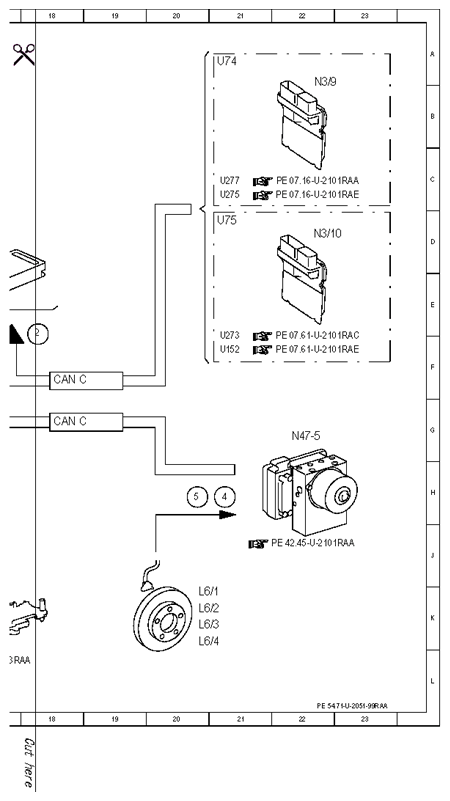

| N3/10 |
ME-SFI [ME] control unit |
22 D |
| N3/9 |
CDI control unit |
22 B |
| N47-5 |
ESP control unit |
22 G |
| N69/1 |
Left front door control unit |
4 C |
| N69/2 |
Right front door control unit |
4 D |
| N73 |
EIS [EZS] control unit |
10 G |
| N80 |
Steering column module |
14 J |
| N93 |
Central gateway control unit |
8 D |
| S4 |
Combination switch |
11 K |
| U152 |
Valid for engine 156 |
21 F |
| U273 |
Valid for engine 272 except 272.973, 273 |
21 F |
| U275 |
Valid for engine 642.8 |
21 C |
| U277 |
Valid for engine 642.9 |
21 C |
| U74 |
Valid for diesel engines |
21 A |
| U75 |
Valid for gasoline engines |
21 D |
| Y3/8n4 |
Fully integrated transmission control (VGS) control unit |
17 K |
