| A49/6 |
Radio antenna interference filter |
41 L |
| A49/6x1 |
Radio antenna interference suppression filter electrical connector |
41 K |
| B4/1 |

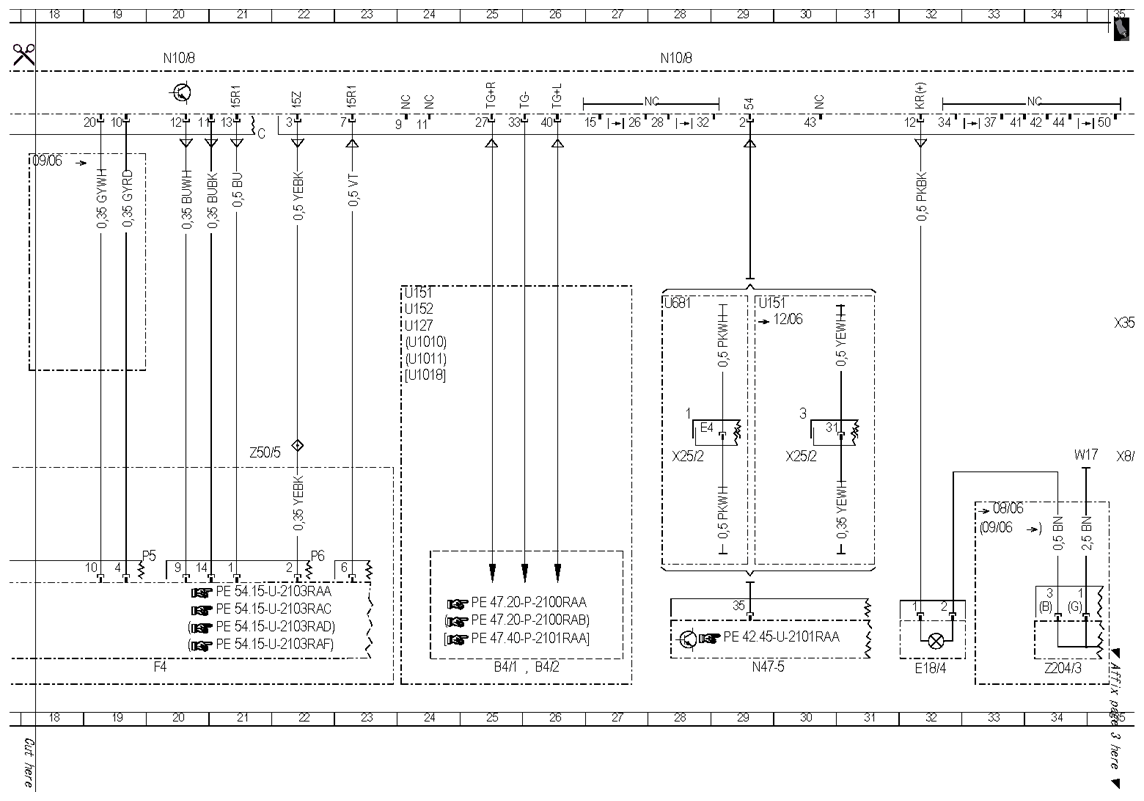

Left fuel level sensor |
25 L |
| B4/2 |
Right fuel level sensor |
26 L |
| B84/3 |
Backup camera |
55 L |
| E17/27 |
Rear-end door warning lamp |
65 L |

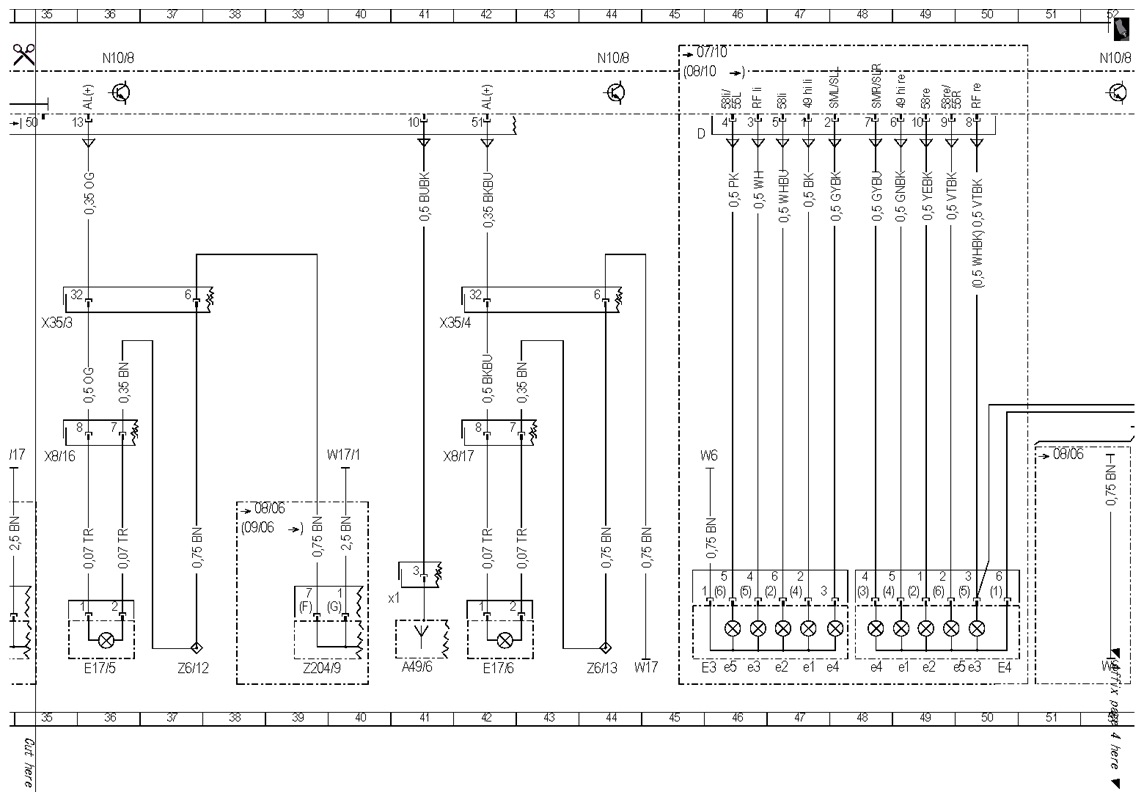

| E17/5 |
Left rear door entrance/exit lamp |
36 L |
| E17/6 |
Right rear door entrance/exit lamp |
42 L |
| E18/4 |
Right luggage compartment lamp |
32 L |
| E19/3 |
Left rear-end door license plate lamp |
68 L |
| E19/4 |
Right rear-end door license plate lamp |
69 L |

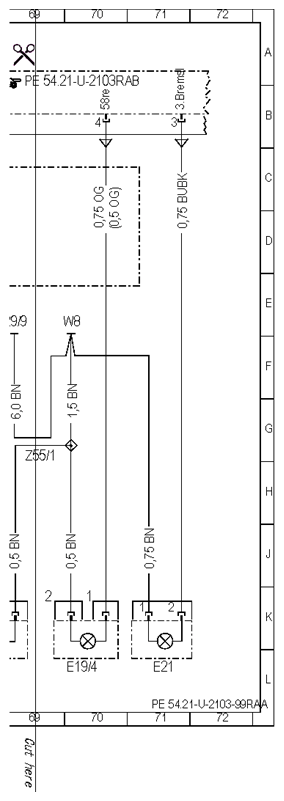

| E21 |
Center high-mounted stop lamp |
71 L |
| E3 |
Left taillamp |
45 L |
| E3e1 |
Left turn signal lamp |
47 L |
| E3e2 |
Left taillamp and parking lamp |
47 L |
| E3e3 |
Left backup lamp |
46 L |
| E3e4 |
Left stop lamp |
47 L |
| E3e5 |
Left rear fog lamp |
46 L |
| E4 |
Right taillamp |
50 L |

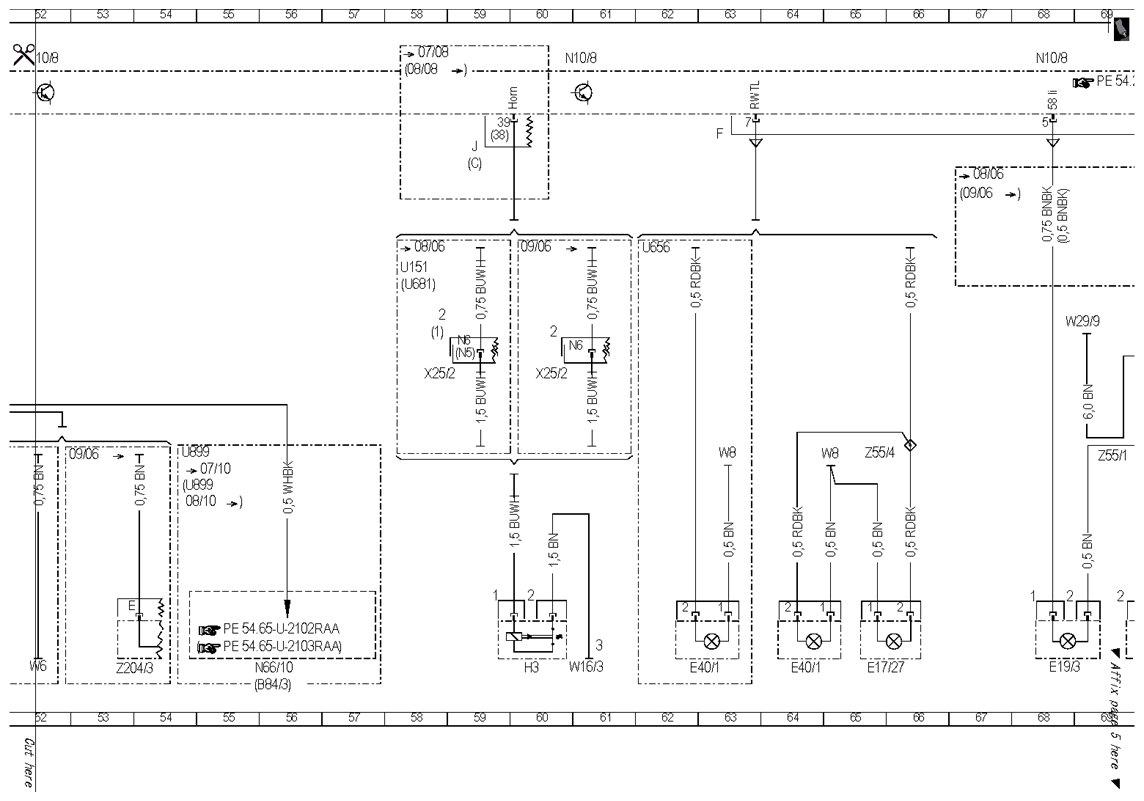

| E40/1 |
Rear-end door ambient lamp |
62 L |
| E40/1 |
Rear-end door ambient lamp |
64 L |
| E4e1 |
Right turn signal lamp |
49 L |
| E4e2 |
Right taillamp and parking lamp |
49 L |
| E4e3 |
Right backup lamp |
50 L |
| E4e4 |
Right stop lamp |
48 L |
| E4e5 |
Right rear fog lamp |
50 L |
| F33 |
Battery compartment prefuse box |
3 L |
| F33f79 |
Fuse 79 |
1 K |
| F33f80 |
Fuse 80 |
2 K |
| F4 |
Load compartment fuse and relay box |
20 L |
| H3 |
Alarm signal horn |
60 L |
| K24/2 |
Front passenger seat adjustment comfort relay |
13 L |

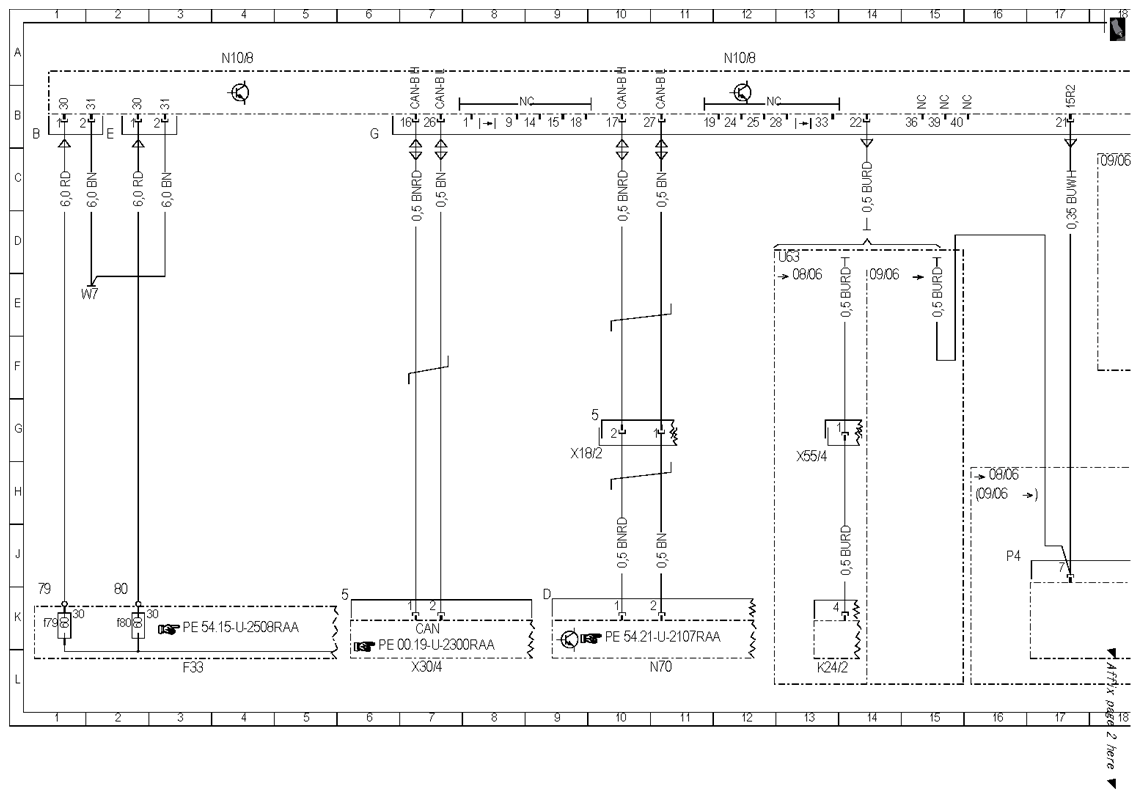

| N10/8 |
Rear SAM control unit |
4 A |
| N10/8 |
Rear SAM control unit |
12 A |
| N10/8 |
Rear SAM control unit |
20 A |
| N10/8 |
Rear SAM control unit |
28 A |
| N10/8 |
Rear SAM control unit |
36 A |
| N10/8 |
Rear SAM control unit |
44 A |
| N10/8 |
Rear SAM control unit |
52 A |
| N10/8 |
Rear SAM control unit |
60 A |
| N10/8 |
Rear SAM control unit |
68 A |
| N47-5 |
ESP control unit |
29 L |
| N66/10 |
Backup camera voltage supply module |
55 L |
| N70 |
Overhead control panel control unit |
10 L |
| U1010 |
Valid for engine 642.870 BLUETEC |
24 F |
| U1011 |
Valid for engine 642.872 |
24 F |
| U1018 |
Valid for gasoline engine 276 |
24 F |
| U127 |
Valid for engine 272, engine 273 KE |
24 F |
| U151 |
Valid for engine 113 |
24 E |
| U151 |
Valid for engine 113 |
29 E |
| U151 |
Valid for engine 113 |
58 E |
| U152 |
Valid for engine 156 |
24 E |
| U63 |
Valid for seat adjustment without memory |
12 D |
| U656 |
Valid for interior light package |
62 D |
| U681 |
Valid for all except M113 |
28 E |
| U681 |
Valid for all except M113 |
58 E |
| U899 |
Valid for backup camera |
54 H |
| U899 |
Valid for backup camera |
54 H |
| W16/3 |
Ground (left assembly compartment, power ground) |
60 L |
| W17 |
Ground (right rear seat) |
34 H |
| W17 |
Ground (right rear seat) |
44 L |
| W17/1 |
Ground (left rear seat) |
39 H |
| W29/9 |
Ground (right D-pillar) |
68 E |
| W6 |
Ground (left wheelhouse in luggage compartment) |
45 H |
| W6 |
Ground (left wheelhouse in luggage compartment) |
52 L |
| W7 |
Ground (right wheelhouse in luggage compartment) |
1 E |
| W8 |
Ground (rear-end door) |
63 H |
| W8 |
Ground (rear-end door) |
64 H |
| W8 |
Ground (rear-end door) |
69 E |
| X18/2 |
Interior/roof connector |
9 H |
| X25/2 |
Engine compartment/interior compartment connector |
28 H |
| X25/2 |
Engine compartment/interior compartment connector |
30 H |
| X25/2 |
Engine compartment/interior compartment connector |
58 F |
| X25/2 |
Engine compartment/interior compartment connector |
60 F |
| X30/4 |
Right voltage distributor (CAN) connector |
7 L |
| X35/3 |
Left rear door separation point |
35 E |
| X35/4 |
Right rear door separation point |
41 E |
| X55/4 |
Right front seat contacting strip |
13 H |
| X8/16 |
Left rear door printed wiring harness connector |
35 H |
| X8/17 |
Right rear door printed wiring harness connector |
41 H |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
34 L |
| Z204/3 |
Circuit 31 right rear seat voltage distributor connector |
53 L |
| Z204/9 |
Circuit 31 left rear seat voltage distributor connector (3) |
39 L |
| Z50/5 |
Tml. 15 connector sleeve |
21 H |
| Z55/1 |
Rear-end door circuit 31 connector sleeve |
69 H |
| Z55/4 |
Rear-end door warning lamp terminal connector |
65 H |
| Z6/12 |
Left rear door ground connector sleeve |
37 L |
| Z6/13 |
Right rear door ground connector sleeve |
44 L |
