Electrical function diagram for Instrument cluster control/warning message - PE54.30-U-2054-99RAA

Code: Designation: Position:
1 Instrument cluster, message 3 C
1 Instrument cluster, message 9 C
1 Instrument cluster, message 14 F
1 Instrument cluster, message 17 F
1 Instrument cluster, message 33 J
A1 Instrument cluster 15 F
A40/3 COMAND operating, display and control unit 24 C
A76 Left front reversible emergency tensioning retractor 9 H
A76/1 Right front reversible emergency tensioning retractor 9 H
A8/1 Transmitter key 28 J
A89 DTR control unit 15 B
CAN B Interior CAN 21 F
CAN B Interior CAN 28 F
CAN C Engine compartment CAN 6 F
CAN C Engine compartment CAN 10 F
CAN D Diagnostic CAN 34 J
CAN H Vehicle dynamics CAN 12 B
CAN I Drive train sensor CAN 3 B
Code 219 DISTRONIC 14 A
Code 242 Electrically adjustable front passenger seat with memory function 23 H
Code 275 Memory function (driver seat, steering column, outside mirror) 23 H
Code 470 Tire pressure monitor (standard) 11 H
Code 475 Tire pressure monitor 11 H
Code 494 USA version 27 D
Code 494 USA version 36 H
Code 889 KEYLESS-GO 20 H
N10 Front SAM control unit 34 F
N10/8 Rear SAM control unit 18 D
N118/5 AdBlue® control unit 6 B
N123/4 Emergency call system control unit 37 J
N2/13 WSS (Weight Sensing System) control unit 27 D
N2/7 Restraint systems control unit 6 H
N3/10 ME-SFI [ME] control unit 3 G
N3/9 CDI control unit 3 D
N32/1 Driver front seat adjustment control unit with memory 24 H
N32/2 Front passenger front seat adjustment control unit with memory 24 H
N47-5 ESP control unit 9 C
N51 AIRMATIC with ADS control unit 6 D
N69/1 Left front door control unit 18 H
N69/2 Right front door control unit 18 H
N69/5 KEYLESS-GO control unit 21 H
N72/1 Upper control panel control unit 31 D
N73 EIS [EZS] control unit 27 H
N88 TPM [RDK] control unit 12 J
N88 TPM [RDK] control unit 21 D
N93 Central gateway control unit 31 J
U151 Valid for engine 113 1 J
U152 Valid for engine 156 1 J
U273 Valid for engine 272 except 272.973, 273 1 J
U277 Valid for engine 642.9 1 F
U74 Valid for diesel engines 1 C
U75 Valid for gasoline engines 1 G
U932 Valid for engine 642 BLUETEC 5 A
Y3/8n4 Fully integrated transmission control (VGS) control unit 11 D

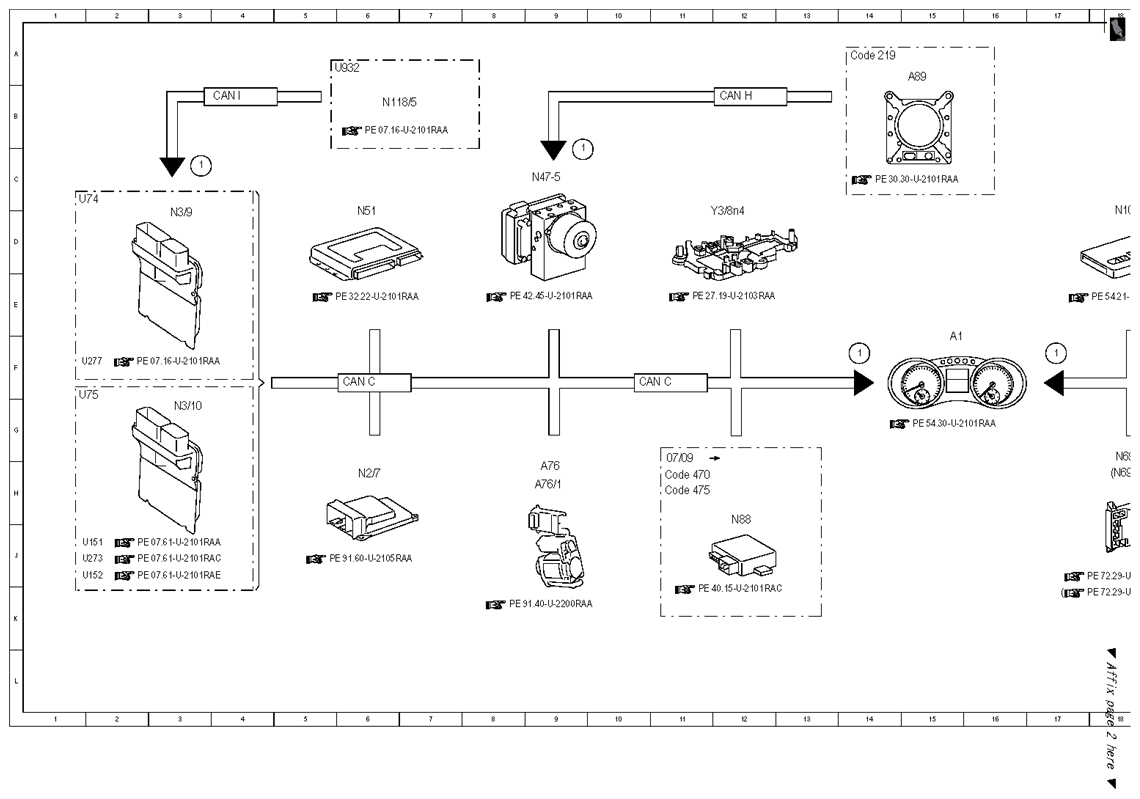

Fig 1: Instrument Cluster Control/Warning Message Electrical Function Diagram (1 Of 3)
G10121493Courtesy of MERCEDES-BENZ USA

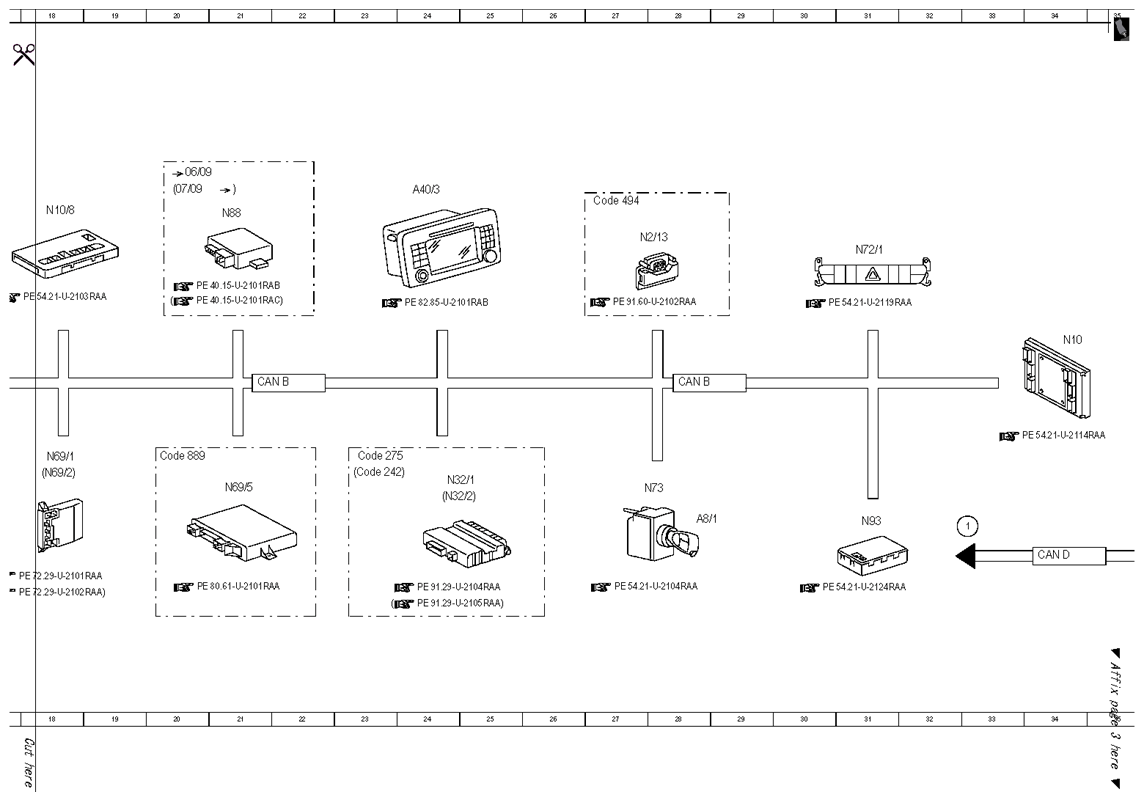

Fig 2: Instrument Cluster Control/Warning Message Electrical Function Diagram (2 Of 3)
G10121494Courtesy of MERCEDES-BENZ USA
Fig 3: Instrument Cluster Control/Warning Message Electrical Function Diagram (3 Of 3)
G10121495Courtesy of MERCEDES-BENZ USA
