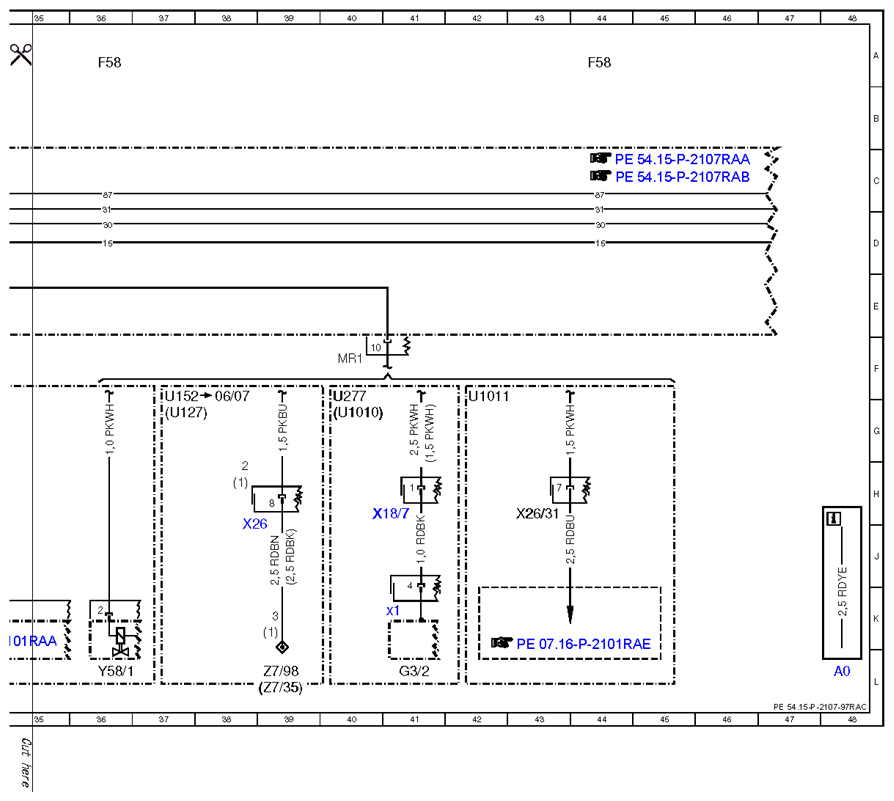

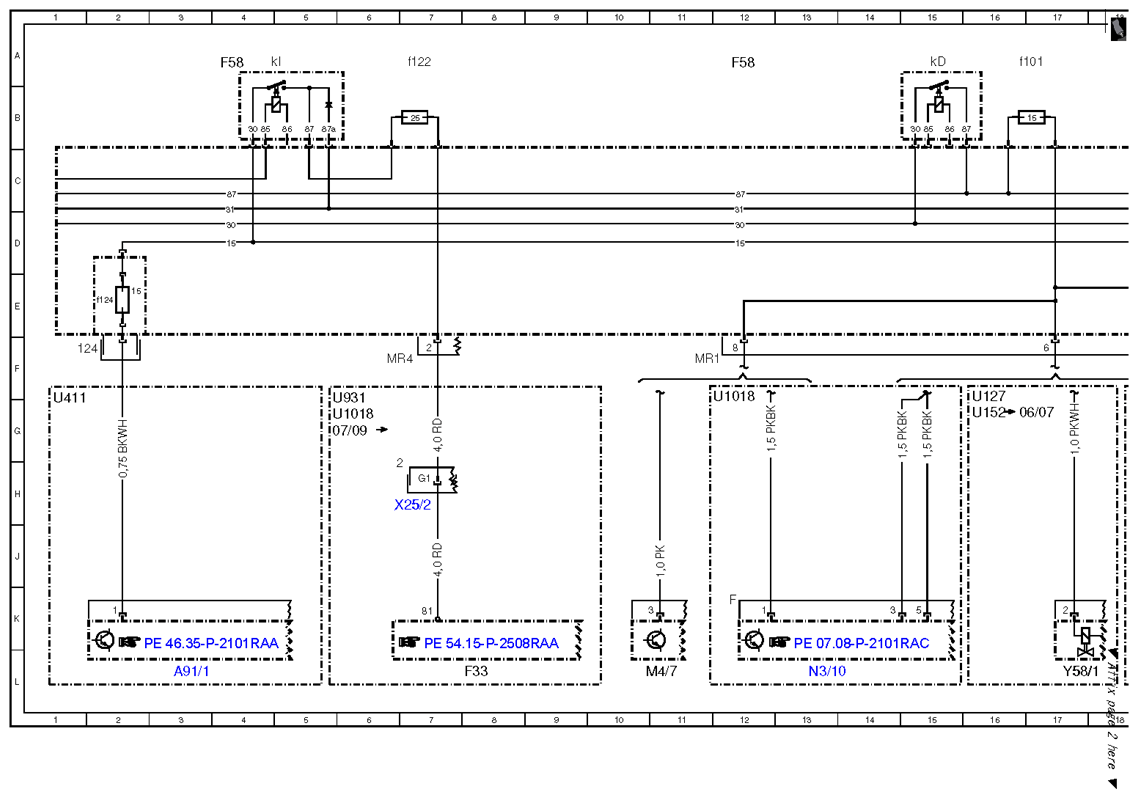

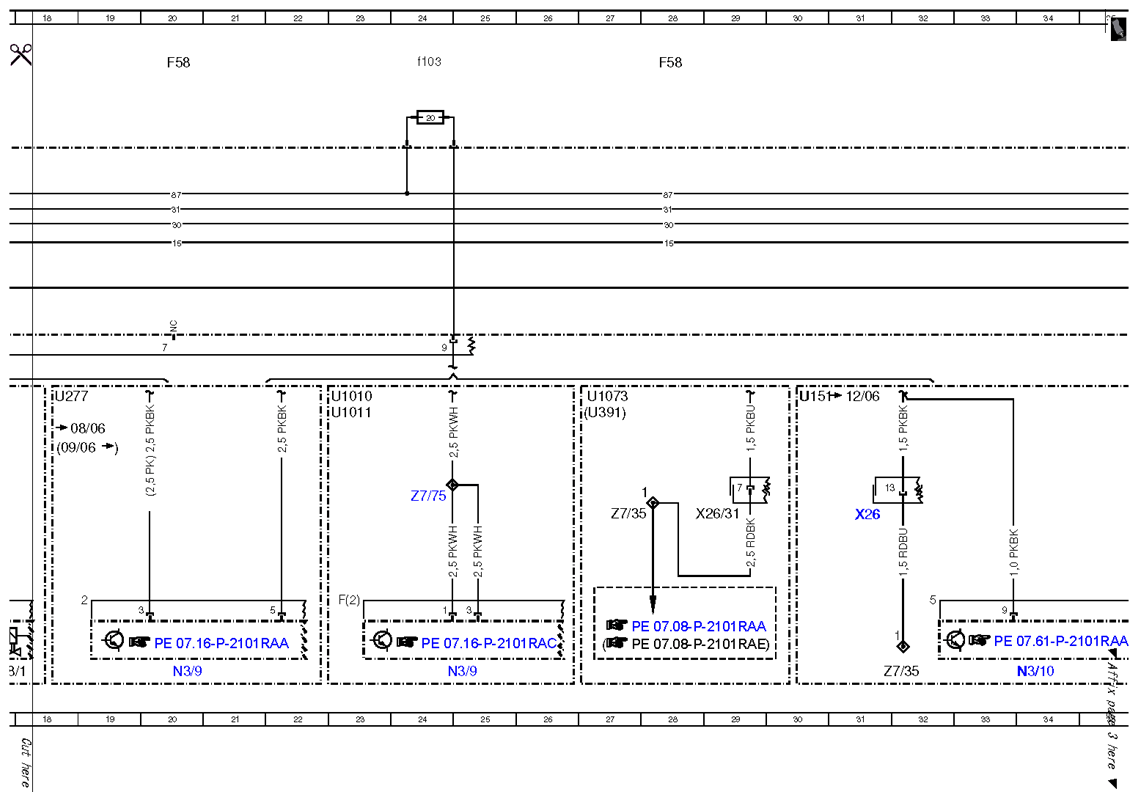

| A0 |
Color code key |
48L |
| A91/1 |
Electrohydraulic power steering |
3L |
| F33 |
Battery compartment prefuse box |
8L |
| F58 |
Engine compartment fuse and relay box |
4A |
| F58 |
Engine compartment fuse and relay box |
12A |
| F58 |
Engine compartment fuse and relay box |
20A |
| F58 |
Engine compartment fuse and relay box |
36A |
| F58 |
Engine compartment fuse and relay box |
44A |
| F58 |
Engine compartment fuse and relay box |
28A |
| F58f101 |
Fuse 101 |
16A |
| F58f103 |
Fuse 103 |
24A |
| F58f122 |
Fuse 122 |
7A |
| F58f124 |
Fuse 124 |
2E |
| F58kD |
Engine circuit 87 relay |
15A |
| F58kI |
Starter relay |
4A |
| G3/2 |
O2 sensor upstream of TWC [KAT] |
41L |
| G3/2x1 |
O2 sensor upstream of TWC [KAT] connector |
41K |
| M4/7 |
Engine and AC electric suction fan with integrated control |
11L |
| N3/10 |
ME-SFI [ME] control unit |
34L |
| N3/10 |
ME-SFI [ME] control unit |
13L |
| N3/9 |
CDI control unit |
20L |
| N3/9 |
CDI control unit |
25L |
| U1010 |
Valid for engine 642.870 BLUETEC |
23G |
| U1010 |
Valid for engine 642.870 BLUETEC |
40G |
| U1011 |
Valid for engine 642.872 |
23G |
| U1011 |
Valid for engine 642.872 |
42G |
| U1018 |
Valid for gasoline engine 276 |
12G |
| U1018 |
Valid for gasoline engine 276 |
5G |
| U1073 |
Valid for gasoline engine 276.9 |
27G |
| U127 |
Valid for engine 272, engine 273 KE |
16G |
| U127 |
Valid for engine 272, engine 273 KE |
37G |
| U151 |
Valid for engine 113 |
30G |
| U152 |
Valid for engine 156 |
16G |
| U152 |
Valid for engine 156 |
37G |
| U277 |
Valid for engine 642.9 |
18G |
| U277 |
Valid for engine 642.9 |
40G |
| U391 |
Valid for gasoline engine 276.8 |
27G |
| U411 |
Valid for EHPS |
1G |
| U931 |
Not valid for engine 642 BLUETEC |
5G |
| X18/7 |
Interior/engine connector |
41H |
| X25/2 |
Engine compartment/interior compartment connector |
7H |
| X26 |
Interior and engine wiring harness connector |
31H |
| X26 |
Interior and engine wiring harness connector |
38J |
| X26/31 |
Engine/engine compartment connector |
43H |
| X26/31 |
Engine/engine compartment connector |
29H |
| Y58/1 |
Purge control valve |
17L |
| Y58/1 |
Purge control valve |
36L |
| Z7/35 |
Circuit 87 M1e connector sleeve |
32L |
| Z7/35 |
Circuit 87 M1e connector sleeve |
39L |
| Z7/35 |
Circuit 87 M1e connector sleeve |
27H |
| Z7/75 |
Circuit 87 D3 connector sleeve |
24H |
| Z7/98 |
Circuit 87 M3e connector sleeve |
39L |
