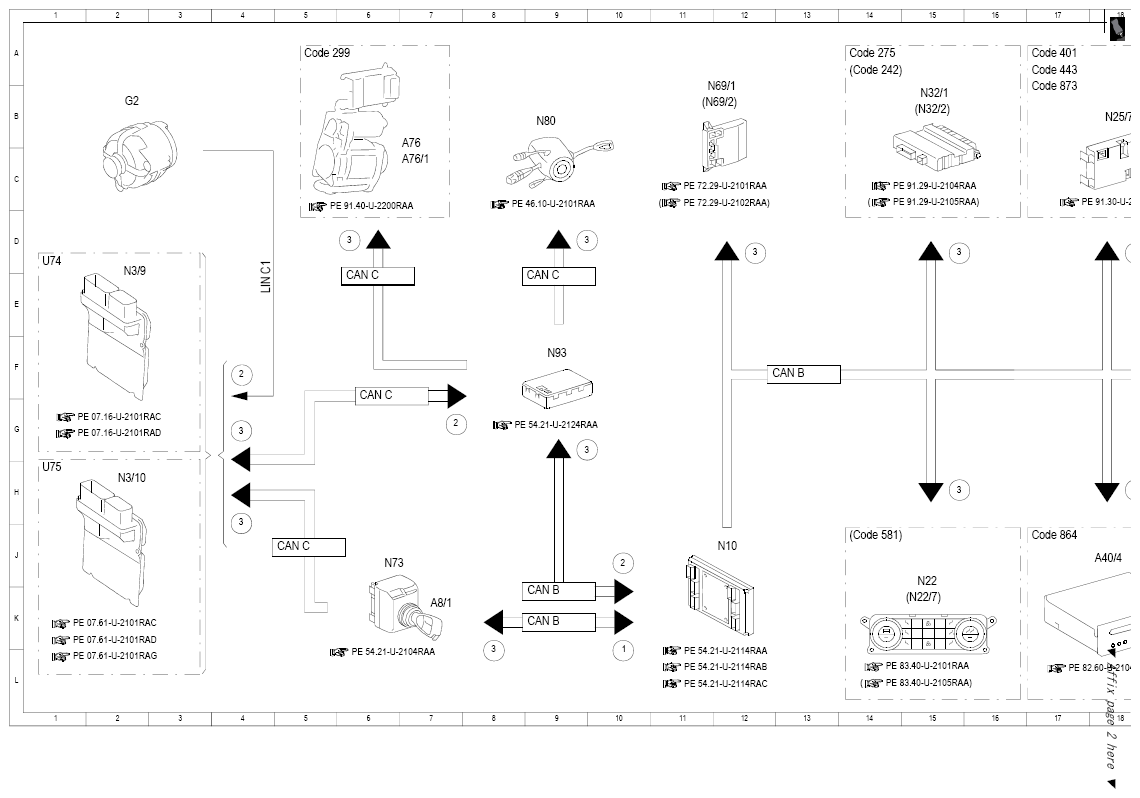

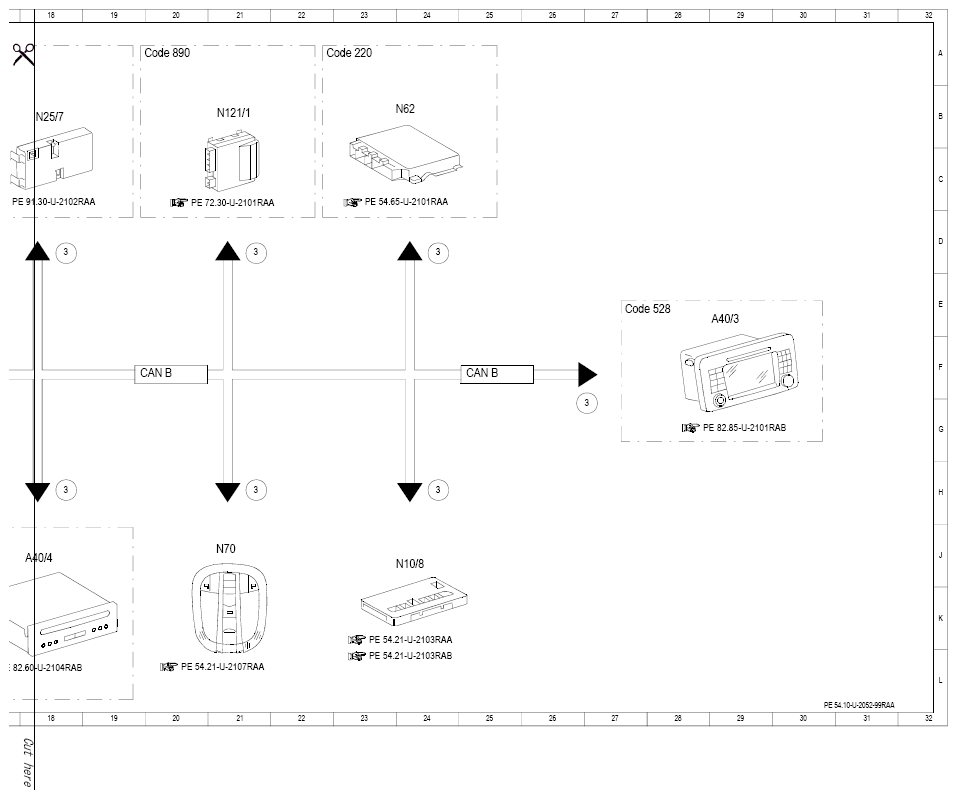

| 1 |
Circuit 15, status |
10 L |
| 2 |
Circuit 61, status |
4 F |
| 2 |
Circuit 61, status |
7 G |
| 2 |
Circuit 61, status |
10 J |
| 3 |
Consumer shutoff, request |
4 J |
| 3 |
Consumer shutoff, request |
4 G |
| 3 |
Consumer shutoff, request |
6 D |
| 3 |
Consumer shutoff, request |
8 L |
| 3 |
Consumer shutoff, request |
9 G |
| 3 |
Consumer shutoff, request |
9 D |
| 3 |
Consumer shutoff, request |
12 D |
| 3 |
Consumer shutoff, request |
15 H |
| 3 |
Consumer shutoff, request |
15 D |
| 3 |
Consumer shutoff, request |
18 H |
| 3 |
Consumer shutoff, request |
18 D |
| 3 |
Consumer shutoff, request |
21 H |
| 3 |
Consumer shutoff, request |
21 D |
| 3 |
Consumer shutoff, request |
24 H |
| 3 |
Consumer shutoff, request |
24 D |
| 3 |
Consumer shutoff, request |
26 G |
| A40/3 |
COMAND operating, display and control unit |
29 E |
| A40/4 |
DVD player |
18 J |
| A76 |
Left front reversible emergency tensioning retractor |
7 C |
| A76/1 |
Right front reversible emergency tensioning retractor |
7 C |
| A8/1 |
Transmitter key |
7 K |
| CAN B |
Interior CAN |
9 K |
| CAN B |
Interior CAN |
9 K |
| CAN B |
Interior CAN |
12 F |
| CAN B |
Interior CAN |
19 F |
| CAN B |
Interior CAN |
25 F |
| CAN C |
Engine compartment CAN |
5 J |
| CAN C |
Engine compartment CAN |
6 E |
| CAN C |
Engine compartment CAN |
6 G |
| CAN C |
Engine compartment CAN |
9 E |
| Code 220 |
PARKTRONIC (PTS) |
22 A |
| Code 242 |
Electrically adjustable front passenger seat with memory function |
14 A |
| Code 275 |
Memory function (driver seat, steering column, outside mirror) |
14 A |
| Code 299 |
PRE-SAFE® |
5 A |
| Code 401 |
Front comfort seats, incl. seat heating and seat ventilation |
17 A |
| Code 443 |
Steering wheel heater |
17 A |
| Code 528 |
HIGH Class USA |
27 E |
| Code 581 |
Comfort automatic air conditioning |
14 J |
| Code 864 |
Rear entertainment system |
17 J |
| Code 873 |
Right and left front seat heaters |
17 B |
| Code 890 |
Automatic rear-end door |
19 A |
| G2 |
Alternator |
2 B |
| LIN C1 |
Drive train LIN |
4 E |
| N10 |
Front SAM control unit |
12 J |
| N10/8 |
Rear SAM control unit |
23 J |
| N121/1 |
Rear-end door closing control unit |
21 B |
| N22 |
AAC [KLA] control and operating unit |
15 K |
| N22/7 |
Comfort AAC [KLA] control and operating unit |
15 K |
| N25/7 |
HS [SIH], seat ventilation and steering wheel heater control unit |
18 B |
| N3/10 |
ME-SFI [ME] control unit |
2 H |
| N3/9 |
CDI control unit |
2 E |
| N32/1 |
Driver front seat adjustment control unit with memory |
15 B |
| N32/2 |
Front passenger front seat adjustment control unit with memory |
15 B |
| N62 |
PTS control unit |
23 B |
| N69/1 |
Left front door control unit |
11 B |
| N69/2 |
Right front door control unit |
11 B |
| N70 |
Overhead control panel control unit |
21 J |
| N73 |
EIS [EZS] control unit |
6 J |
| N80 |
Steering column module |
9 B |
| N93 |
Central gateway control unit |
9 F |
| U74 |
Valid for diesel engines |
1 D |
| U75 |
Valid for gasoline engines |
1 H |
