Remove/install instrument cluster - AR54.30-P-6015RT
MODEL 251
Courtesy of MERCEDES-BENZ USA
To improve clarity, instrument cluster (A1) is shown in removed state
Courtesy of MERCEDES-BENZ USA MODIFICATION NOTES
| 26.7.06 |
Disconnect/connect battery ground line and carry out basic programming removed |
Steps 3 and 8 |
|
  |
Remove/install |
|
|
| 1 |
Transfer basic data from instrument cluster (A1) to STAR DIAGNOSIS diagnosis system |
Only when replacing the instrument cluster (A1).
Transfer basic data from STAR DIAGNOSIS diagnosis system to new instrument cluster (A1).
On vehicles with
retrofitted iPod and without
telephone, set menu point "Telephone"
in "Instrument cluster"
from "NOT PRESENT"
to "PRESENT"
with START DIAGNOSIS, to allow operation of iPod via the multifunction steering wheel. |
|
 |
Connect STAR DIAGNOSIS and read out fault memory |
|
AD00.00-P-2000-04A |
| |
|
STAR DIAGNOSIS diagnosis system |
*WH58.30-Z-1048-13A |
| 2 |
Pull out steering wheel completely and lower fully |
|
|
| 3 |
Release instrument cluster (A1) with pulling hooks |

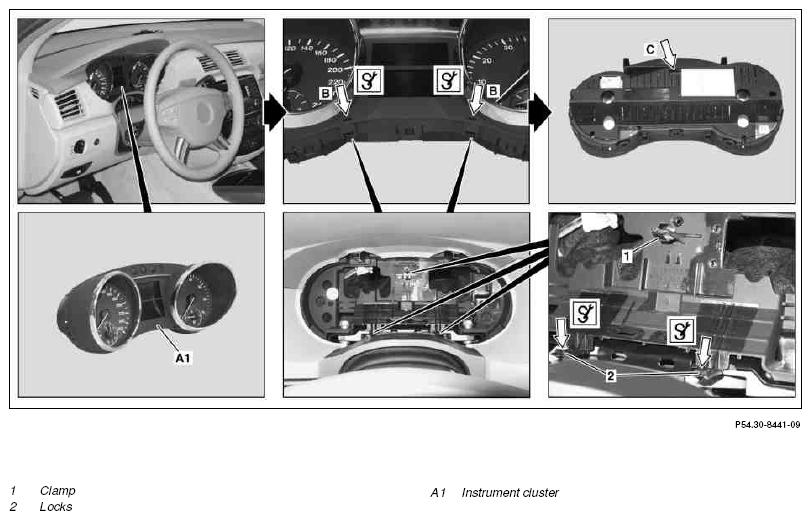

Insert two pulling hooks into slots of instrument cluster (A1) (arrows B) and push down locks (2) by carefully turning pulling hooks. When doing so, apply light pressure to side (arrow directions D) of instrument cluster (A1) and, at same time, carefully pull out instrument cluster (A1) with pulling hooks (arrow E). This procedure unlocks locks (2) and releases clip (1) from mounting opening (arrow C) at rear of instrument cluster (A1).
Do not damage instrument cluster (A1) and instrument panel. |
|
Pulling hook |
Fig 3 |
| 4 |
Remove instrument cluster (A1) from instrument panel |
Do not damage instrument cluster, wiring harness and instrument panel.
Push instrument cluster (A1) evenly into instrument panel until clip (1) and locks (2) engage. Do not trap wiring harness behind instrument cluster (A1). |
|
| 5 |

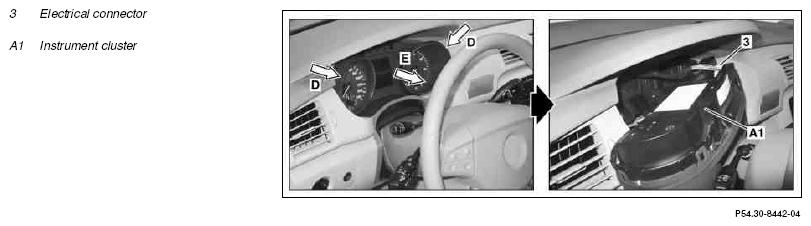

Disconnect electrical connector (3) |
|
|
| 6 |
Install in the reverse order |
|
|
| 7 |
Read out fault memory and erase |
Stored faults which were caused by assembly, test work, disconnected cables or by a simulation, must be processed and erased in the fault memories on completion of the work. |
|
|
Connect STAR DIAGNOSIS and read out fault memory |
|
AD00.00-P-2000-04A |
| |
|
STAR DIAGNOSIS diagnosis system |
*WH58.30-Z-1048-13A |
| 8 |
Carry out function check |
|
|
Courtesy of MERCEDES-BENZ USA COMMERCIALLY AVAILABLE TOOLS
| Number |
Designation |
| WH58.30-Z-1048-13A |
STAR DIAGNOSIS diagnosis system, Compact Passenger Car |
6511 1801 00 |
