Remove/install battery - AR54.10-P-0005RT

MODEL 251

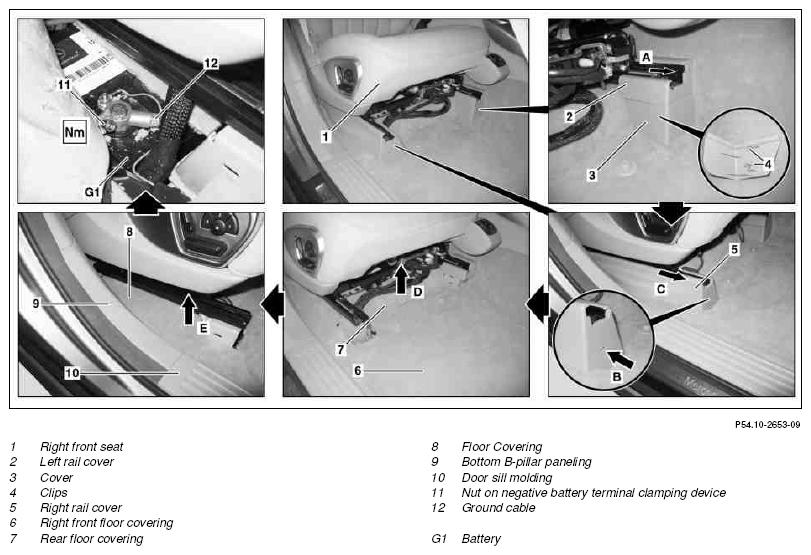

Fig 1: Identifying Battery Remove/Install Components (1 Of 2)
G10121178Courtesy of MERCEDES-BENZ USA

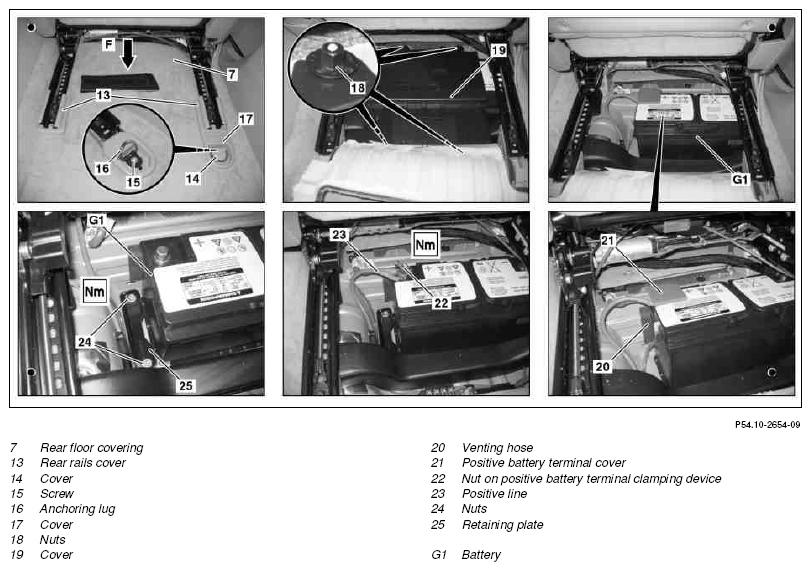

Fig 2: Identifying Battery Remove/Install Components (2 Of 2)
G10121179Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of explosion  caused by escaping oxyhydrogen gas. Risk of injury  caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains diluted sulfuric acid) or metal spatter due to short circuit. Risk of burn injuries  caused by short circuit. Risk of poisoning  caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead over the skin or orifices No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards.
Do not place any conductive objects on the battery and avoid any short circuit from battery positive to ground.
Only fill liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers.
AS54.10-Z-0001-01A
NOTES Notes on battery All models AH54.10-P-0001-01A
1 Move the right-hand front seat (1) completely to the rear
2 Switch off all electrical consumers NOTES All the electrical consumers must be switched off, otherwise they may be damaged when unclipping and clipping on ground line (12).
3 Switch off ignition and remove the transmitter key from the EIS [EZS] control unit IMPORTANT On vehicles with Keyless Go, code 889:
Press Keyless Go start/stop button repeatedly until ignition is switched off. Remove transmitter key from vehicle and store it in a location beyond its transmission range (at least 2 m).

4 Unclip left rail cover (2) to the front (arrow A) as well as cover (3) and remove
5 Unclip right rail cover (5) and detach from the rail to the front (arrow C) IMPORTANT To unclip, using a suitable tool move into the opening of the rail cover (5) (arrow B) and unclip rail cover (5).
6 Lift front right floor covering (6) upwards and lift up rear floor covering (7) (arrow D)
7 Lift floor covering (8) between the right front seat (1) and bottom B-pillar trim (9) upwards (arrow E) INSTALLATION IMPORTANT Ensure that floor covering (8) is seated correctly below bottom B-pillar paneling (9) and door sill molding (10).
SPECIAL TOOL Mounting wedge Figure
8 Move the right front seat (1) completely to the front
9 Loosen nut on terminal of battery negative pole (11), disconnect ground line (12) of the battery (G1) NOTES All consumers must be switched off, as otherwise the vehicle electrical system may be damaged.
IMPORTANT It must be ensured that no remote starting unit is connected to the vehicle.
AR54.10-P-0003RT
TORQUE SPECIFICATION *BA54.10-P-1012-01C
10 Unclip and remove the rear rails cover (13) SPECIAL TOOL Long wedge Fig 4
11 Unclip and remove cover (14) SPECIAL TOOL Long wedge Fig 4
12 Remove bolt (15) TORQUE SPECIFICATION *BA68.50-P-1001-03G
13 Remove anchoring lug (16) INSTALLATION IMPORTANT Ensure that guide lugs are installed correctly.
14 Take off cover (17)
15 Lift rear floor covering (7) upwards (arrow F)
16 Unscrew nuts (18) and remove cover (19)
17 Detach bleed hose (20) including plastic support from battery (G1) INSTALLATION IMPORTANT Route vent hose (20) without kinks.
18 Remove cover of positive battery terminal (21) loosen nut on terminal of positive battery terminal (22), disconnect positive line (23) TORQUE SPECIFICATION *BA54.10-P-1012-01C
19 Unscrew nuts (24) and remove retaining plate (25) TORQUE SPECIFICATION *BA54.10-P-1024-01C
20 Remove battery (G1) INSTALLATION NOTES Before installation of the battery (G1) make sure that no cables are located within the area of the battery fixture, as they may be damaged when the battery (G1) is installed.
Ensure that the maxi-fuses in the prefuse box in the battery compartment are not loosened inadvertently when installing and removing the battery (G1).

21 Install in the reverse order
22 Perform basic programming   AR00.19-P-0200RT
BATTERY

Number Designation Model 251
BA54.10-P-1012-01C Nut, battery cable to battery terminal M6 Nm 6
BA54.10-P-1024-01C Nut, battery retaining plate to frame floor M8 Nm 24
CARGO RETAINERS

Number Designation Model 251
BA68.50-P-1001-03G Bolt, cargo retainers to body Nm 24
Fig 3: Identifying Mounting Wedge (110 589 03 59 00)
G07079389Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Long Wedge (115 589 03 59 00)
G07070400Courtesy of MERCEDES-BENZ USA
