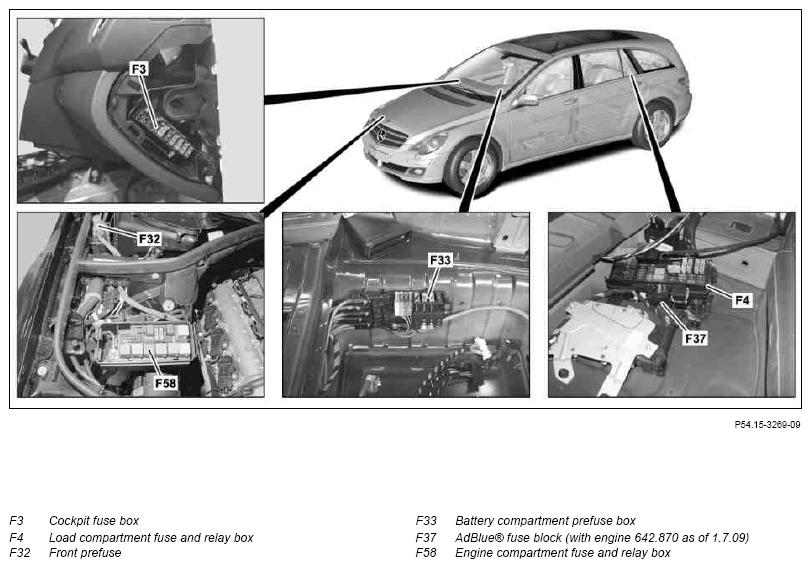

Fuse and relay box, as-built configuration - GF54.15-P-0800GV
MODEL 251.0/1 as of model year 2009
| Fuse assignment of fuse box in cockpit | F3 | GF54.15-P-1256-16GV | |
| Fuse assignment of load compartment fuse and relay box | F4 | GF54.15-P-1256-14GV | |
| Relay assignment of the load compartment fuse and relay box | F4 | GF54.15-P-1257-08GV | |
| Fuse assignment of front prefuse box | F32 | GF54.15-P-1256-07GV | |
| Fuse assignment of battery compartment prefuse box | F33 | GF54.15-P-1256-15GV | |
| Fuse assignment of fuse box in luggage compartment | MODEL 251.1 with ENGINE 642.870 as of model year 2009 F37 |
GF54.15-P-1256-05GM | |
| Fuse assignment of fuse and relay box in right engine compartment | F58 | GF54.15-P-1256-02GV | |
| Relay assignment of fuse and relay box in right engine compartment | F58 | GF54.15-P-1257-02GV |
