Remove/install outside mirror trim - AR88.70-P-9040RT

MODEL 251 up to model year 2010

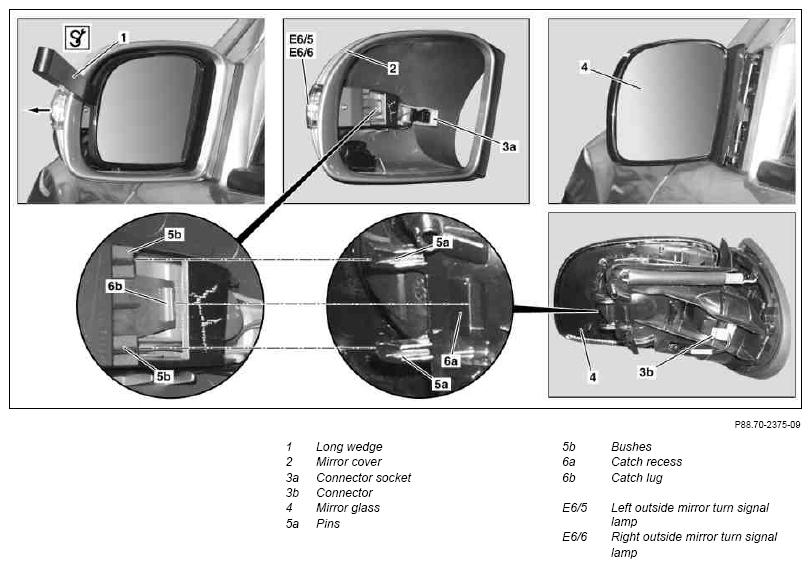

Fig 1: Identifying Outside Mirror Trim Remove/Install Components - Shown On Vehicle With Code (500)

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with code (500) Folding left/right outside mirrors, and with code (249) Automatically dimming inside rearview mirror and outside mirror (driver)

	Removing
1	Adjust mirror lens (4) toward inside	See owner's manual.
2	Press catch lug toward front of vehicle with long wedge (1) and remove mirror cover (2) toward outside (arrow).	Long wedge	Figure
	Install
3	Slide mirror cover (2) onto mirror lens (4) and press toward inside until catch lug (6b) arrests perceptibly in catch recess (6a)	Pins (5a) should reach into the sockets (5b) Ensure that the plug (3b) of the left outside mirror turn signal lamp (E6/5) or right outside mirror turn signal lamp (E6/6) is seated correctly in socket (3a)

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
