Remove/install complete outside mirror - AR88.70-P-9000RT

MODEL 251

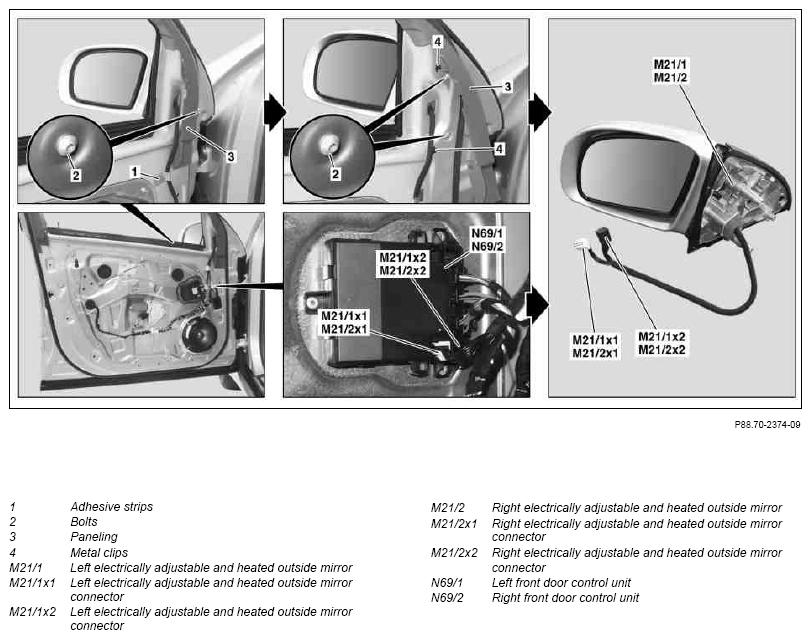

Fig 1: Identifying Complete Outside Mirror Remove/Install Components - Shown On Code 500

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with folding left/right outside mirror, code 500 and automatic dimming inside rearview mirror and outside mirror (driver), code 249

	Remove/Install
1	Remove door lining from left or right front door		AR72.10-P-1000RT
2	Unclip paneling (3) from metal clips (4) and remove adhesive strips (1)	Provide new strips of adhesive tape (1).
		Mounting wedge	Figure
3	Release left electrically adjustable and heated outside mirror connector (M21/1x1, M21/1x2) or right electrically adjustable and heated outside mirror connector (M21/2x1, M21/2x2) on left front door control module (N69/1) or right front door control module (N69/2) and disconnect.
4	Unscrew bolts (2) and remove left electrically adjustable and heated outside mirror (M21/1) or right electrically adjustable and heated outside mirror (M21/2)
5	Install in the reverse order
