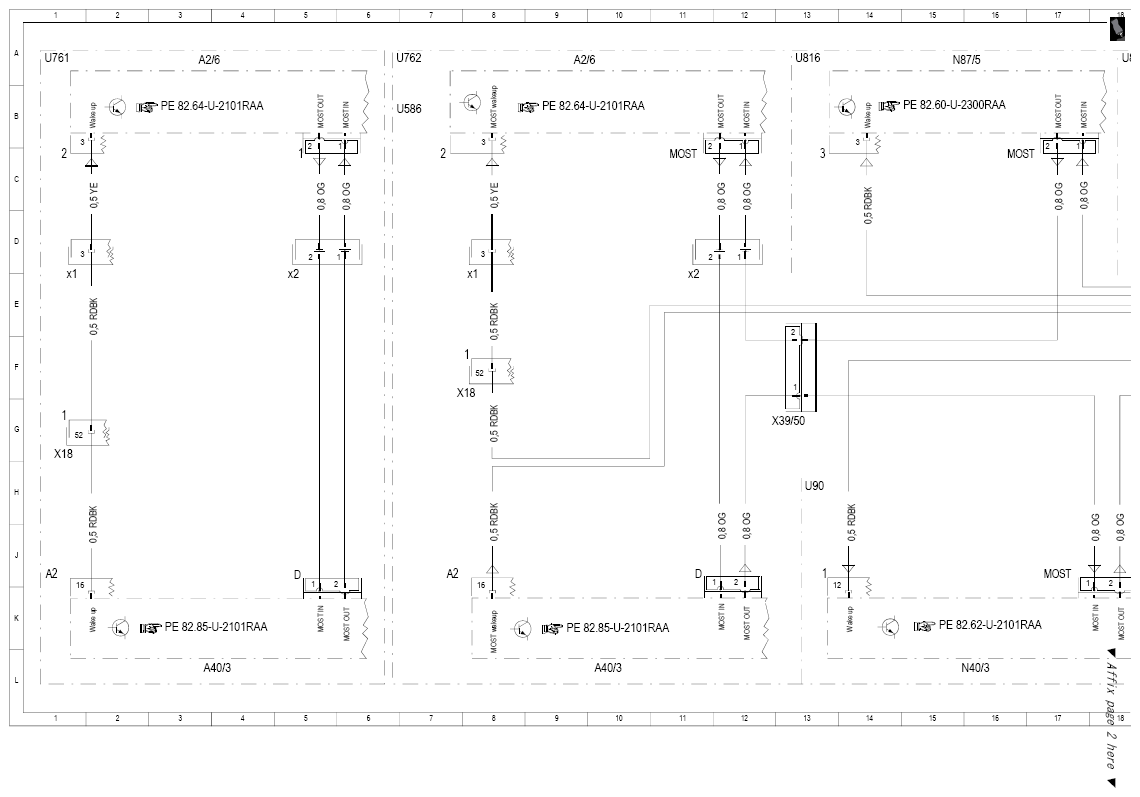

| A2/6 |
CD changer |
3 A |
| A2/6 |
CD changer |
9 A |
| A2/6x1 |
CD changer connector 1 |
1 E |
| A2/6x1 |
CD changer connector 1 |
7 E |
| A2/6x2 |
CD changer 2 connector |
4 E |
| A2/6x2 |
CD changer 2 connector |
11 E |
| A40/3 |
COMAND operating, display and control unit |
3 L |
| A40/3 |
COMAND operating, display and control unit |
10 L |

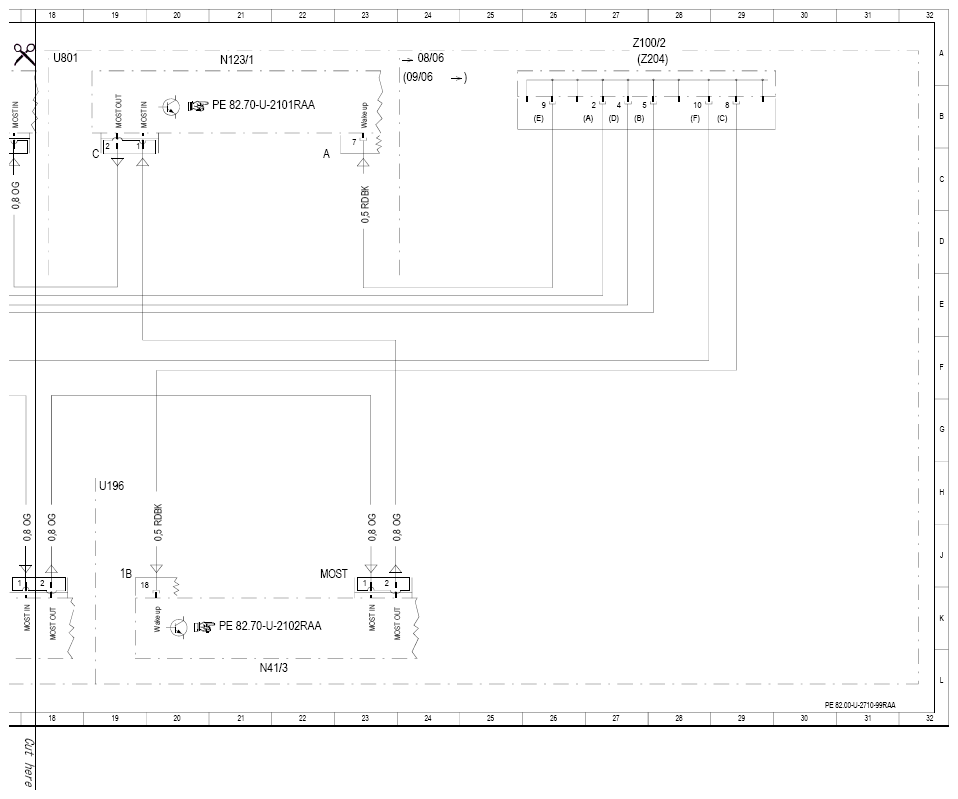

| N123/1 |
Universal Portable CTEL Interface (UPCI [UHI]) control unit |
21 A |
| N40/3 |
Amplifier for sound system |
15 L |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
21 L |
| N87/5 |
SDAR control unit |
15 A |
| U196 |
Valid for VCS [SBS] |
19 H |
| U586 |
Valid for CD changer |
6 B |
| U761 |
Valid for MOST bus (minimum equipment) |
1 A |
| U762 |
Valid for MOST bus (maximum equipment) |
6 A |
| U801 |
Valid for UHI (Universal Portable CTEL Interface) |
18 A |
| U816 |
Valid for satellite radio (SDAR) |
13 A |
| U90 |
Valid for Sound System |
13 H |
| X18 |
Interior/cockpit connector |
1 H |
| X18 |
Interior/cockpit connector |
7 G |
| X39/50 |
Fiber optical cable connector (MOST) |
12 G |
| Z100/2 |
Wake-up signal connector sleeve |
27 A |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
27 A |
| Z204 |
Wake-up signal/circuit 58d voltage distributor connector |
27 A |
