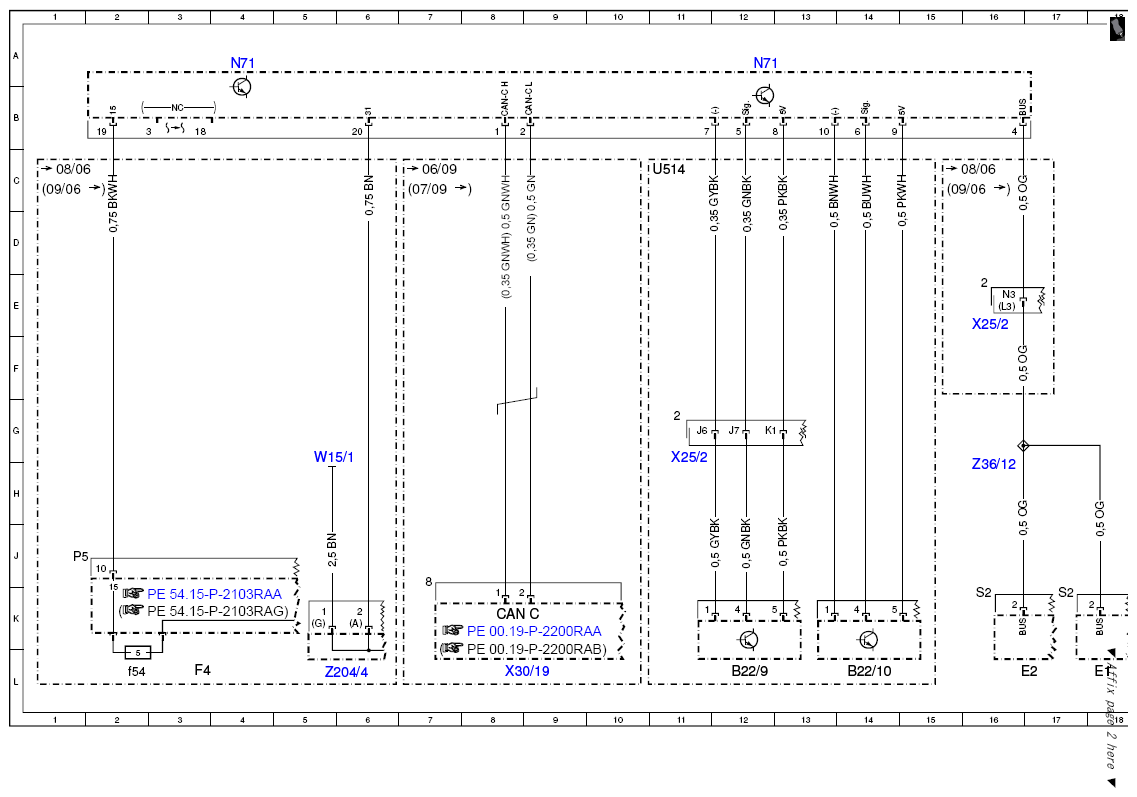

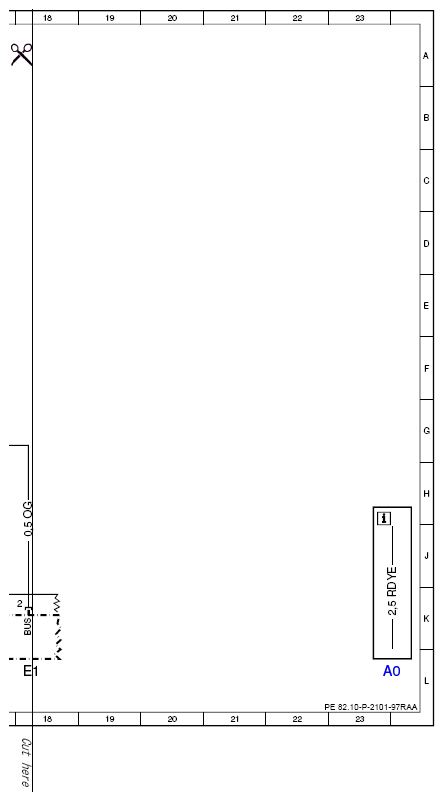

| A0 |
Color code key |
23L |
| B22/10 |
Right rear level sensor |
14L |
| B22/9 |
Right front level sensor |
12L |
| CAN C |
Engine compartment CAN |
8K |
| E1 |
Left front lamp unit |
18L |
| E2 |
Right front lamp unit |
17L |
| F4 |
Load compartment fuse and relay box |
3L |
| F4f54 |
Fuse 54 |
2L |
| N71 |
Headlamp range adjustment control unit |
4A |
| N71 |
Headlamp range adjustment control unit |
12A |
| U514 |
Not valid for AIRMATIC |
11C |
| W15/1 |
Ground (right footwell) |
5G |
| X25/2 |
Engine compartment/interior compartment connector |
16E |
| X25/2 |
Engine compartment/interior compartment connector |
11G |
| X30/19 |
Passenger-side voltage distributor (CAN C) connector |
8L |
| Z204/4 |
Circuit 31 right footwell voltage distributor connector |
6L |
| Z36/12 |
Headlamp range adjustment (HRA [LWR]) control bus connector sleeve |
16H |
