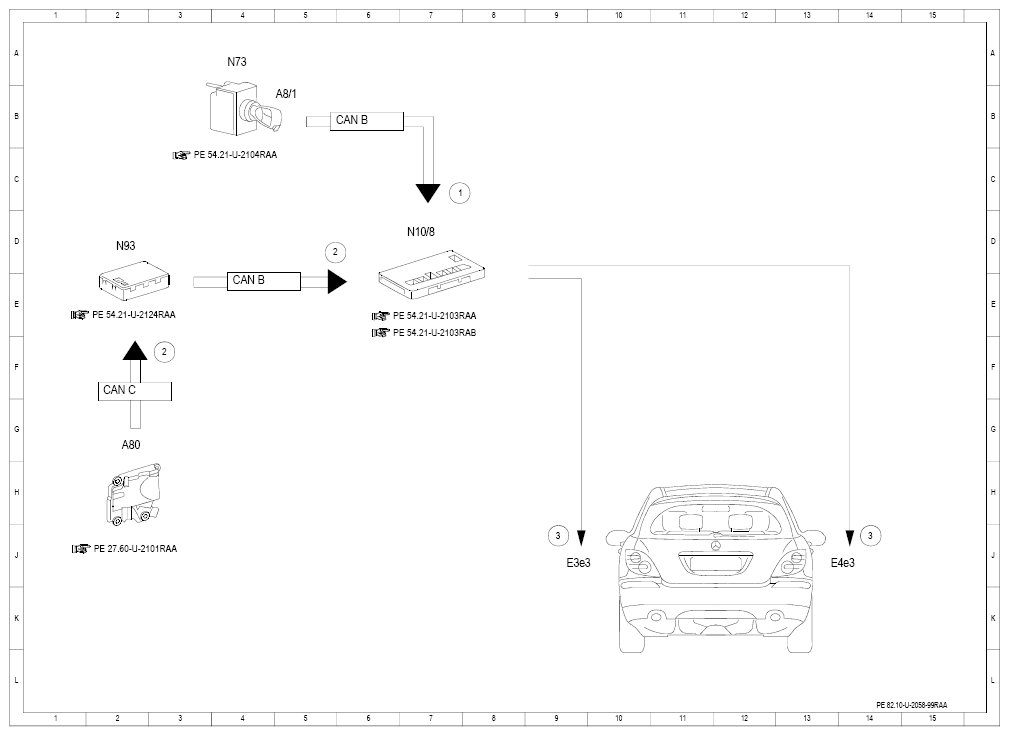

Electrical function diagram for backup light actuation - PE82.10-U-2058-99RAA
| Code | Designation | Position |
|---|---|---|
| 1 | Circuit 15, status | 7 C |
| 2 | Reverse gear, status | 3 F |
| 2 | Reverse gear, status | 5 D |
| 3 | Backup lamp, actuation | 9 J |
| 3 | Backup lamp, actuation | 14 J |
| A8/1 | Transmitter key | 5 B |
| A80 | Intelligent servo module for DIRECT SELECT | 2 G |
| CAN B | Interior CAN | 4 E |
| CAN B | Interior CAN | 5 B |
| CAN C | Engine compartment CAN | 2 G |
| E3e3 | Left backup lamp | 9 J |
| E4e3 | Right backup lamp | 13 J |
| N10/8 | Rear SAM control unit | 7 D |
| N73 | EIS [EZS] control unit | 4 A |
| N93 | Central gateway control unit | 2 D |
