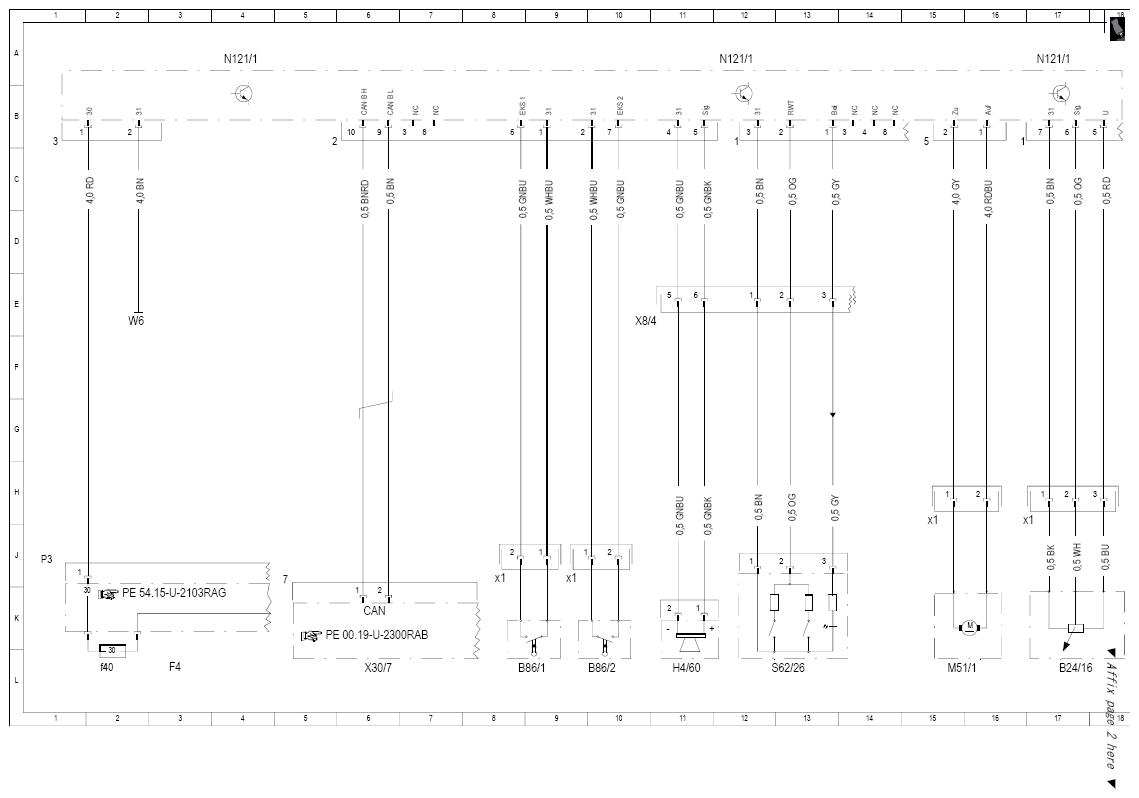

| B24/16 |
Rear-end door opening angle recognition sensor |
17 L |
| B24/16x1 |
Rear-end door opening angle recognition sensor connector |
16 J |
| B86/1 |
Left rear-end door closing obstruction sensor strip |
8 L |
| B86/1x1 |
Left rear-end door closing obstruction sensor strip connector |
8 K |
| B86/2 |
Right rear-end door closing obstruction sensor strip |
9 L |
| B86/2x1 |
Right rear-end door closing obstruction sensor strip connector |
9 K |
| F4 |
Load compartment fuse and relay box |
3 L |
| F4f40 |
Fuse 40 |
2 L |
| H4/60 |
Rear-end door closing warning buzzer |
11 L |
| M51/1 |
Rear-end door hydraulic pump |
15 L |
| M51/1x1 |
Rear-end door hydraulic pump connector |
15 J |
| N121/1 |
Rear-end door closing control unit |
4 A |
| N121/1 |
Rear-end door closing control unit |
12 A |
| N121/1 |
Rear-end door closing control unit |
17 A |
| S62/26 |
RWTS button |
12 L |
| W6 |
Ground (left wheelhouse in luggage compartment) |
2 E |
| X30/7 |
Voltage distributor (CAN) connector |
6 L |
| X8/4 |
Rear-end door separating point |
10 E |
