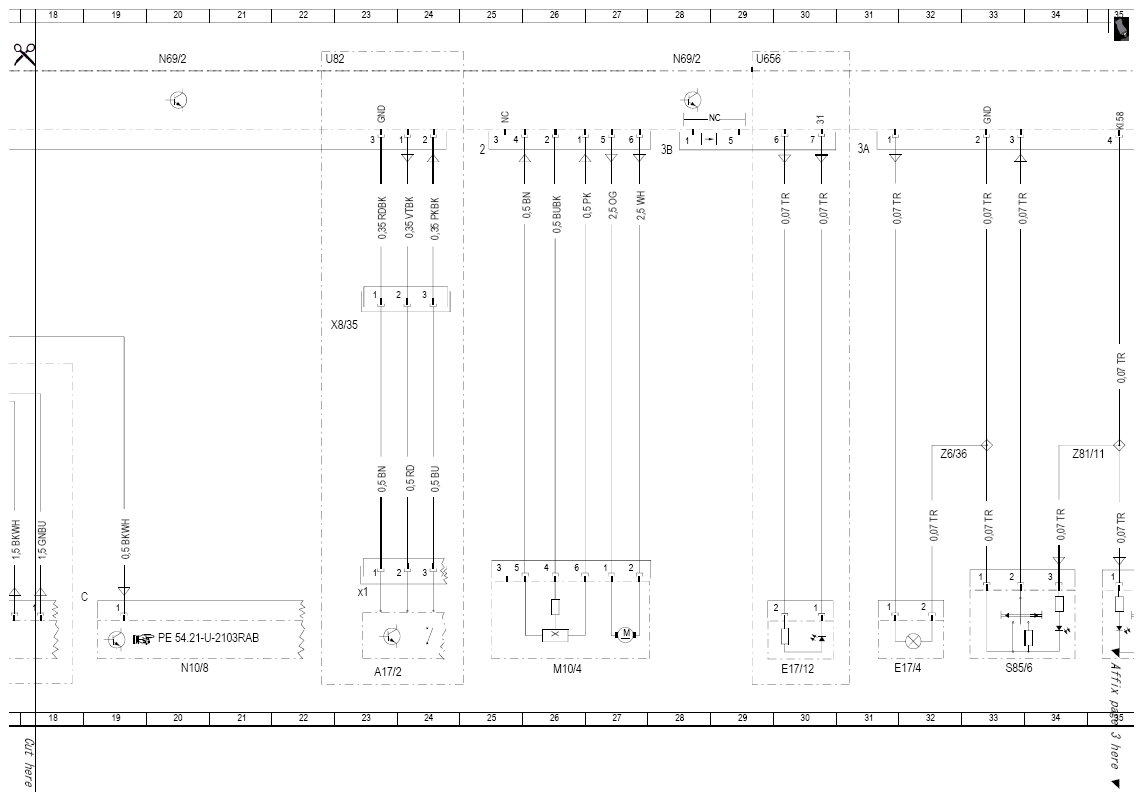

| A17/2 |
Right front KEYLESS GO door handle |
23 L |
| A17/2x1 |
Right front KEYLESS-GO door handle connector |
23 K |
| E17/12 |
Right front door inside handle illumination |
30 L |
| E17/4 |
Right front door entrance/exit lamp |
31 L |

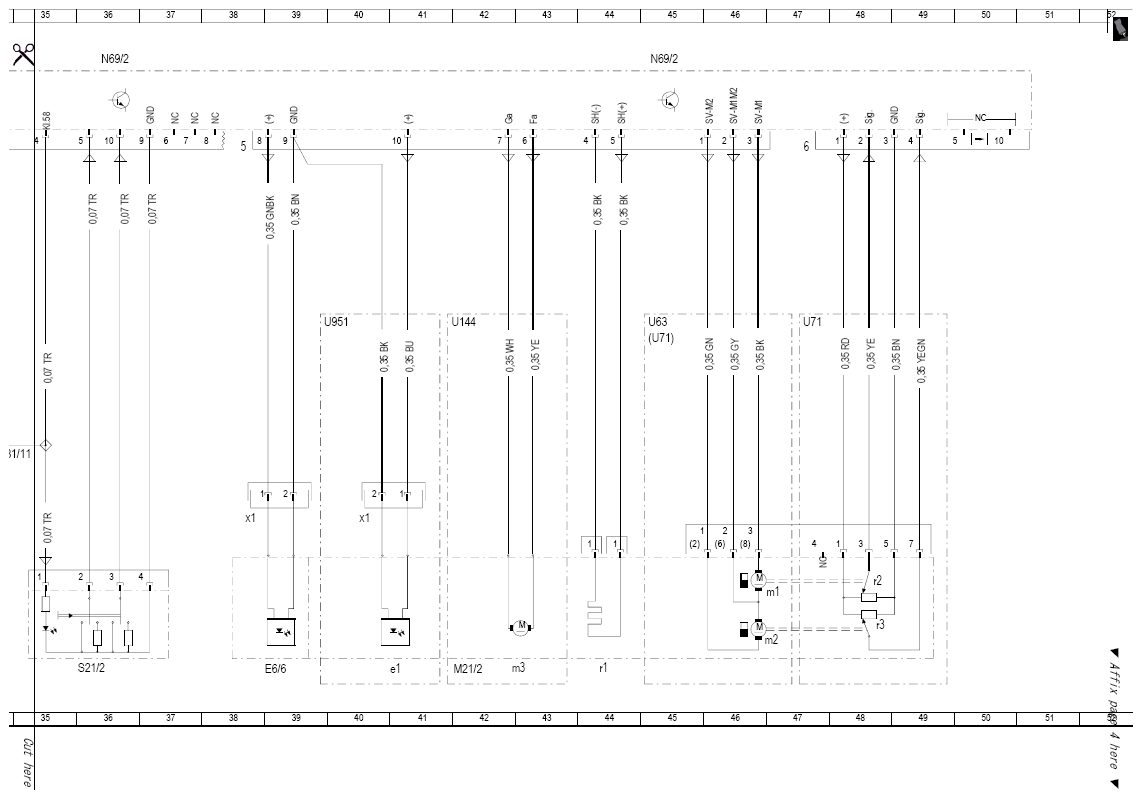

| E6/6 |
Right outside mirror turn signal lamp |
38 L |
| E6/6x1 |
Right outside mirror turn signal lamp electrical connector |
38 J |

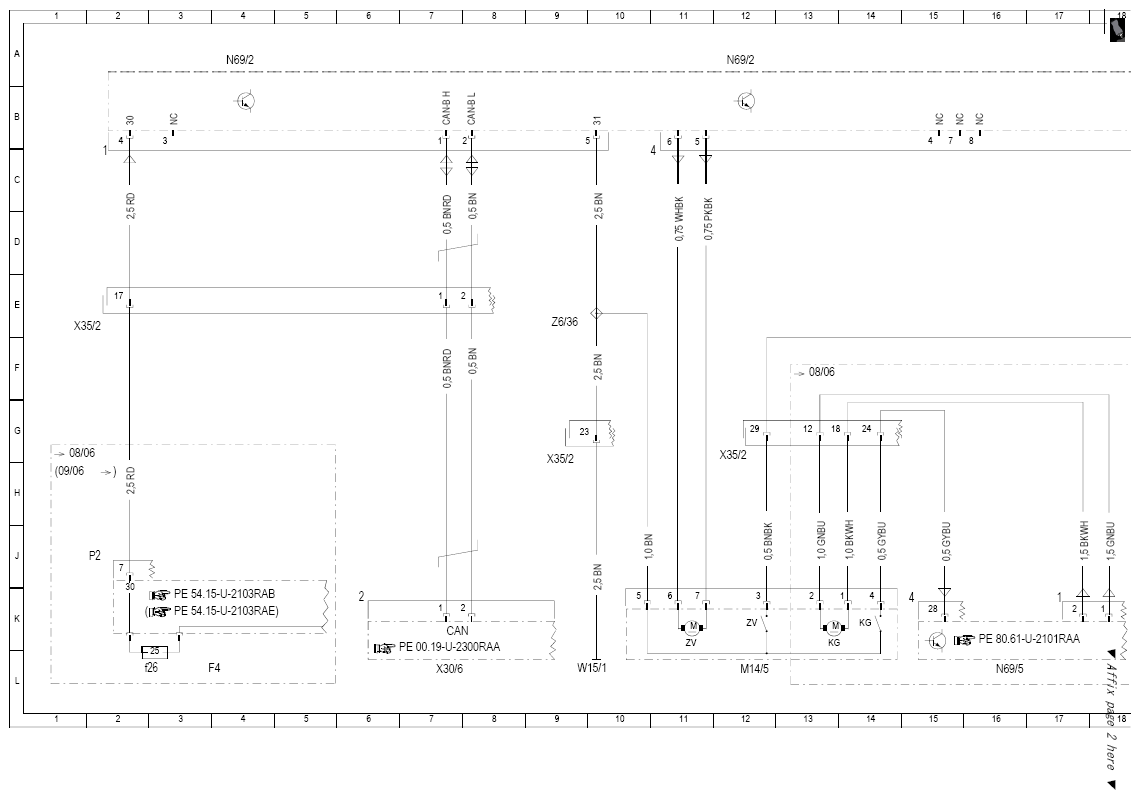

| F4 |
Load compartment fuse and relay box |
3 L |
| F4f26 |
Fuse 26 |
2 L |
| M10/4 |
Right front power window motor |
26 L |
| M14/5 |
Right front door CL [ZV] motor |
12 L |
| M21/2 |
Right electrically adjustable and heated outside mirror |
41 L |
| M21/2e1 |
Right outside mirror ambient lamp |
40 L |
| M21/2e1x1 |
Right outside mirror ambient lamp electrical connector |
40 J |
| M21/2m1 |
Mirror up/down adjustment motor |
46 K |
| M21/2m2 |
Mirror in/out adjustment motor |
46 L |
| M21/2m3 |
Mirror fold-in motor |
42 L |
| M21/2r1 |
Mirror heater |
44 L |
| M21/2r2 |
Mirror up/down adjustment potentiometer |
48 K |
| M21/2r3 |
Mirror in/out adjustment potentiometer |
48 K |
| N10/8 |
Rear SAM control unit |
20 L |
| N69/2 |
Right front door control unit |
4 A |
| N69/2 |
Right front door control unit |
12 A |
| N69/2 |
Right front door control unit |
20 A |
| N69/2 |
Right front door control unit |
28 A |
| N69/2 |
Right front door control unit |
36 A |
| N69/2 |
Right front door control unit |
45 A |
| N69/5 |
KEYLESS-GO control unit |
16 L |
| S21/2 |
Front passenger power window switch |
35 L |
| S85/6 |
Right interior CL [ZV] switch |
33 L |
| U144 |
Valid for outside mirror fold-in/out function |
41 E |
| U63 |
Valid for seat adjustment without memory |
45 E |
| U656 |
Valid for interior light package |
29 A |
| U71 |
Valid for seat adjustment with memory |
45 F |
| U71 |
Valid for seat adjustment with memory |
47 E |
| U82 |
Valid for KEYLESS GO |
22 A |
| U951 |
Valid for ambient lamps |
39 E |
| W15/1 |
Ground (right footwell) |
9 L |
| X30/6 |
Cockpit voltage distributor (CAN) connector |
7 L |
| X35/2 |
Right front door separation point |
1 F |
| X35/2 |
Right front door separation point |
9 H |
| X35/2 |
Right front door separation point |
12 H |
| X8/35 |
Right front door handle connector |
22 F |
| Z6/36 |
Right front door ground connector sleeve |
9 E |
| Z6/36 |
Right front door ground connector sleeve |
32 H |
| Z81/11 |
Front passenger circuit 58d connector sleeve |
34 H |
