| A0 |
Color code key |
80L |
| A2/19 |
FM rear window antenna amplifier |
46L |
| A2/5 |
GPS antenna splitter |
28L |
| A2/91 |
Bluetooth antenna |
60L |
| A2/93 |
Roof antenna module |

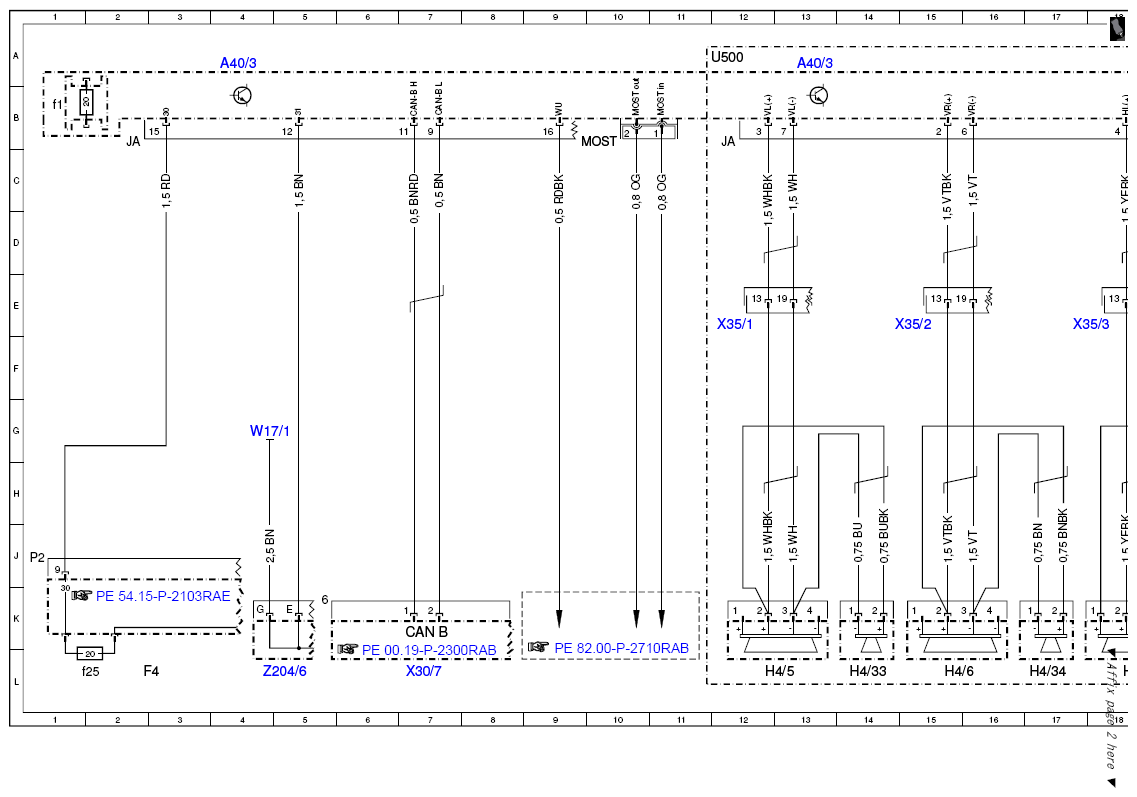

34L |
| A40/3 |
COMAND operating, display and control unit |
4A |
| A40/3 |
COMAND operating, display and control unit |
13A |
| A40/3 |
COMAND operating, display and control unit |
28A |
| A40/3 |
COMAND operating, display and control unit |
20A |
| A40/3 |
COMAND operating, display and control unit |
36A |
| A40/3 |
COMAND operating, display and control unit |
44A |
| A40/3 |
COMAND operating, display and control unit |
53A |
| A40/3 |
COMAND operating, display and control unit |
60A |
| A40/3f1 |
COMAND electrical fuse |
1B |

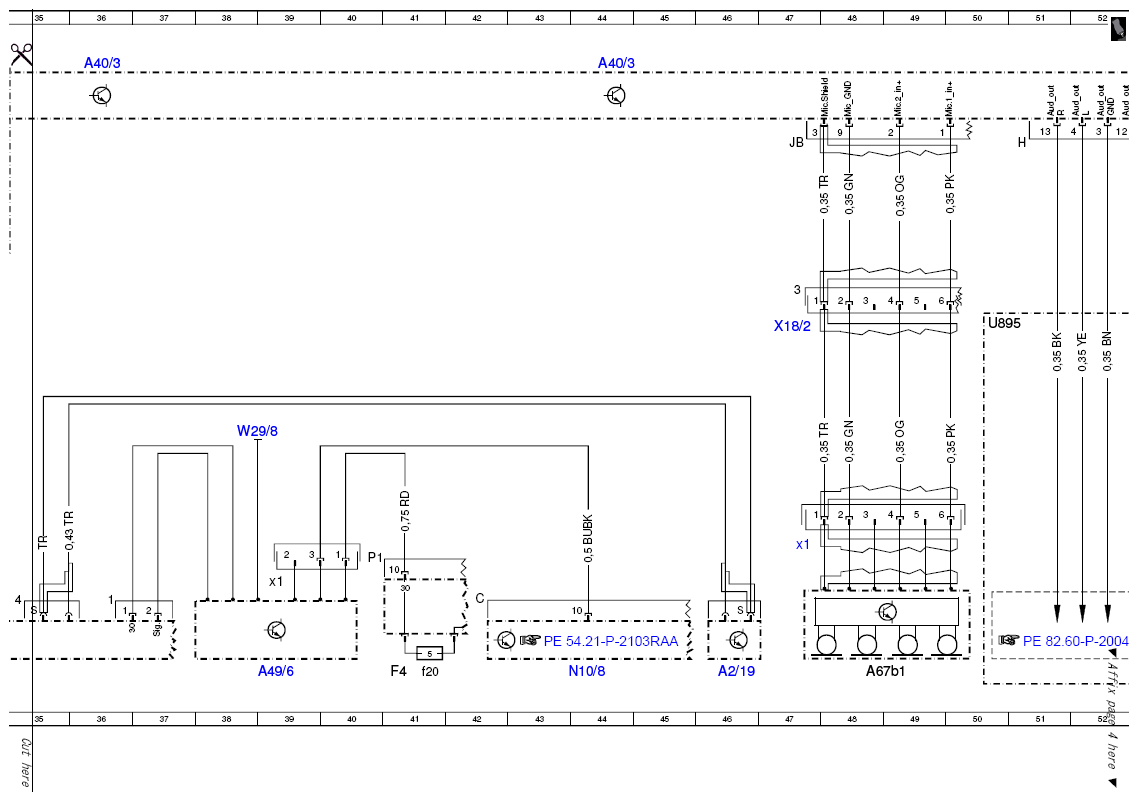

| A49/6 |
Radio antenna interference filter |
39L |
| A49/6x1 |
Radio antenna interference suppression filter electrical connector |
39J |
| A67b1 |
Hands-free system microphone group |
48L |
| A67b1x1 |
Hands-free system microphone group connector |
47J |
| CAN B |
Interior CAN |
7K |

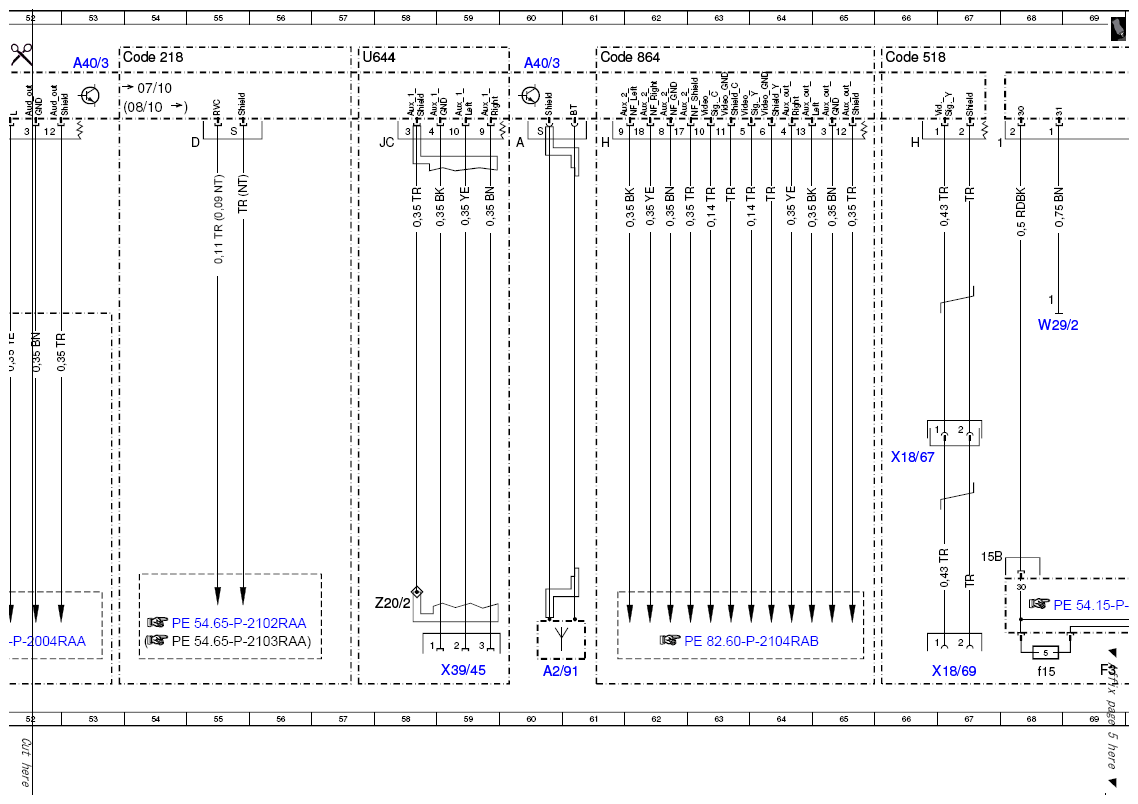

| Code 218 |
Backup camera |
53A |
| Code 518 |
Media Interface |
66A |
| Code 864 |
Rear entertainment system |
61A |
| F3 |
Cockpit fuse box |
69L |
| F3f15 |
Fuse 15 |
68L |
| F4 |
Load compartment fuse and relay box |
41L |
| F4 |
Load compartment fuse and relay box |
2L |
| F4f20 |
Fuse 20 |
41L |
| F4f25 |
Fuse 25 |
2L |

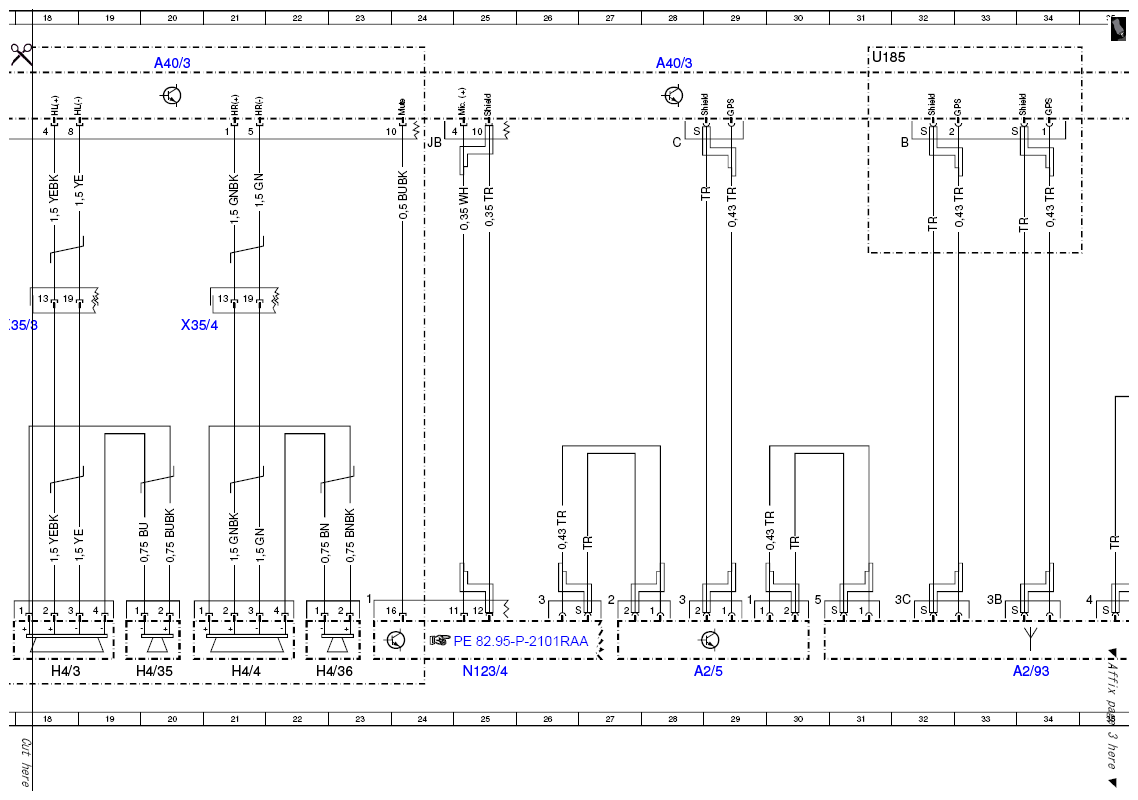

| H4/3 |
Left rear door speaker |
18L |
| H4/33 |
Left front door tweeter |
14L |
| H4/34 |
Right front door tweeter |
17L |
| H4/35 |
Left rear door tweeter |
20L |
| H4/36 |
Right rear door tweeter |
22L |
| H4/4 |
Right rear door speaker |
21L |
| H4/5 |
Left front door speaker |
12L |
| H4/6 |
Right front door speaker |
15L |

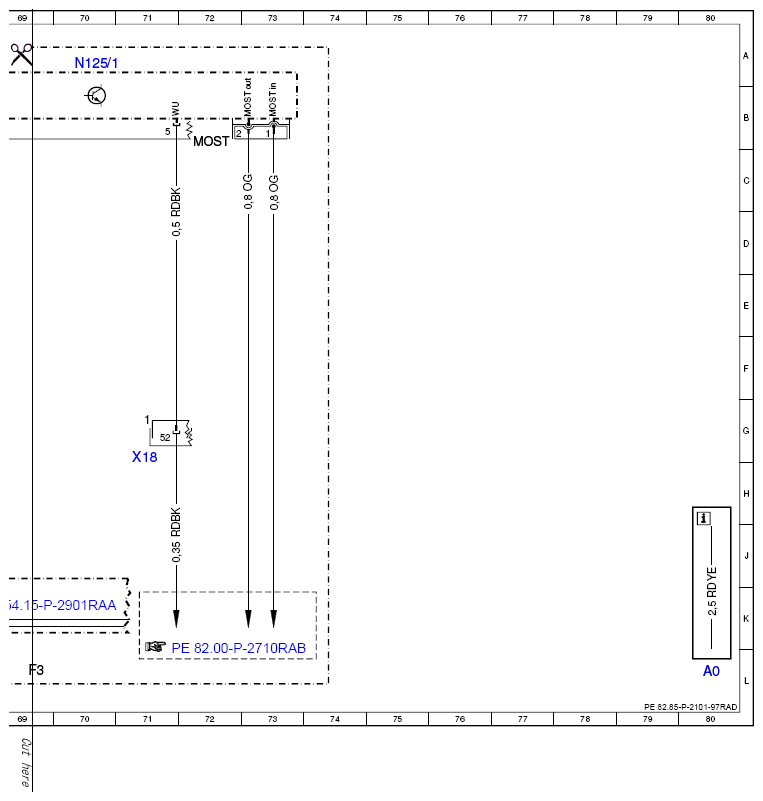

| MOST |
Media Oriented System Transport |
10B |
| MOST |
Media Oriented System Transport |
72B |
| N10/8 |
Rear SAM control unit |
44L |
| N123/4 |
Emergency call system control unit |
25L |
| N125/1 |
Media interface control unit |
70A |
| U185 |
Not valid for high definition tuner |
31A |
| U500 |
Not valid for Sound System |
11A |
| U644 |
Valid for walkman connection |
57A |
| U895 |
Valid for rear audio |
50E |
| W17/1 |
Ground (left rear seat) |
4G |
| W29/2 |
Ground (right A-pillar) |
68E |
| W29/8 |
Ground (left D-pillar) |
38G |
| X18 |
Interior/cockpit connector |
71H |
| X18/2 |
Interior/roof connector |
47E |
| X18/67 |
Media interface connector 1 |
66H |
| X18/69 |
Media interface connector 2 |
67L |
| X30/7 |
Voltage distributor (CAN) connector |
7L |
| X35/1 |
Left front door separation point |
12E |
| X35/2 |
Right front door separation point |
15E |
| X35/3 |
Left rear door separation point |
18E |
| X35/4 |
Right rear door separation point |
20E |
| X39/45 |
Walkman separation point |
59L |
| Z20/2 |
Cable end insulation not stripped, placed inside insulated tubing |
58K |
| Z204/6 |
Circuit 31 left rear seat voltage distributor connector (1) |
5L |
