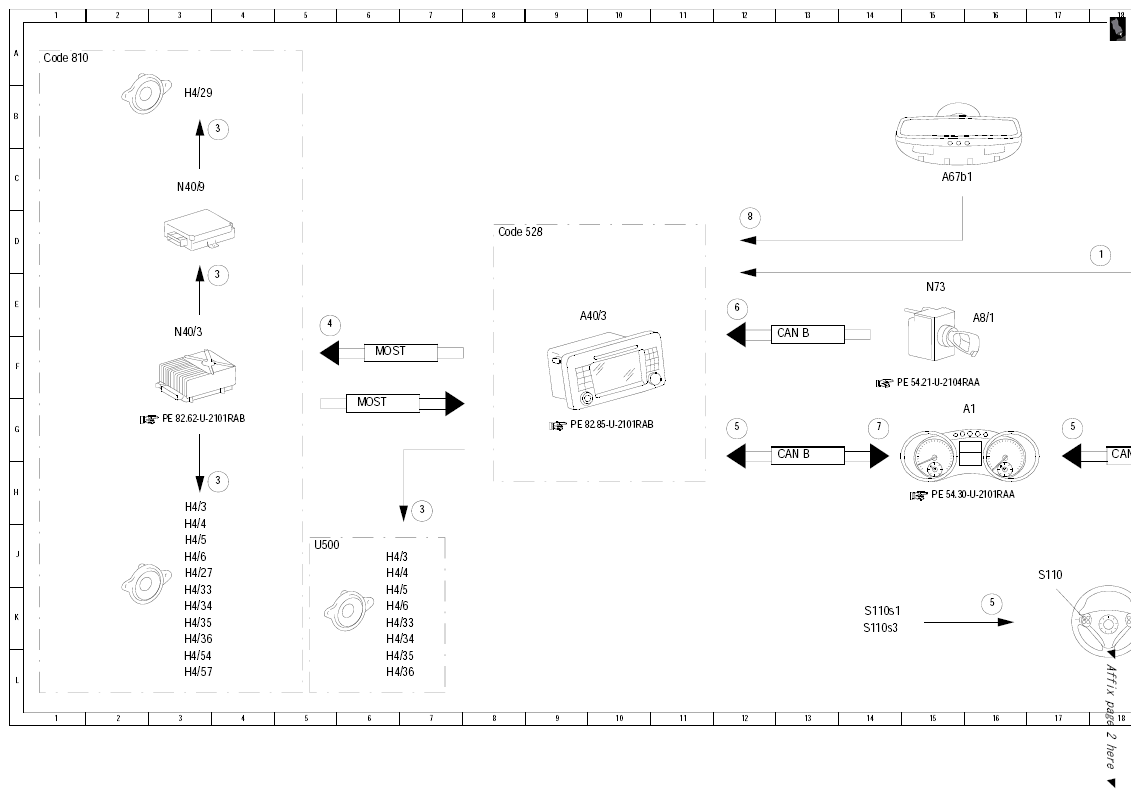

| 1 |
Telephone, signal |
18 D |
| 2 |
Bluetooth, signal |
20 D |
| 3 |
Voice output, signal |
4 H |
| 3 |
Voice output, signal |
4 E |
| 3 |
Voice output, signal |
4 B |
| 3 |
Voice output, signal |
7 H |
| 4 |
Sound system amplifier, actuation |
5 E |
| 5 |
Multifunction steering wheel button group, signal |
12 G |
| 5 |
Multifunction steering wheel button group, signal |
16 K |
| 5 |
Multifunction steering wheel button group, signal |
17 G |
| 5 |
Multifunction steering wheel button group, signal |
20 J |
| 7 |
Instrument cluster, message |
14 G |
| 8 |
Voice input, signal |
12 D |
| A1 |
Instrument cluster |
15 G |
| A2/91 |
Bluetooth antenna |
19 E |
| A40/3 |
COMAND operating, display and control unit |
9 E |
| A67b1 |
Hands-free system microphone group |
15 C |
| A8/1 |
Transmitter key |
16 E |
| CAN B |
Interior CAN |
13 H |
| CAN B |
Interior CAN |
13 F |
| CAN C |
Engine compartment CAN |
18 H |
| Code 528 |
HIGH Class USA |
8 D |
| Code 810 |
Sound system |
1 A |
| H4/27 |
Center cockpit speaker (centerfill) |
3 J |
| H4/29 |
Subwoofer |
3 B |
| H4/3 |
Left rear door speaker |
3 H |
| H4/3 |
Left rear door speaker |
6 J |
| H4/33 |
Left front door tweeter |
3 K |
| H4/33 |
Left front door tweeter |
6 K |
| H4/34 |
Right front door tweeter |
3 K |
| H4/34 |
Right front door tweeter |
6 L |
| H4/35 |
Left rear door tweeter |
3 K |
| H4/35 |
Left rear door tweeter |
6 L |
| H4/36 |
Right rear door tweeter |
3 L |
| H4/36 |
Right rear door tweeter |
6 L |
| H4/4 |
Right rear door speaker |
3 J |
| H4/4 |
Right rear door speaker |
6 J |
| H4/5 |
Left front door speaker |
3 J |
| H4/5 |
Left front door speaker |
6 K |
| H4/54 |
Left rear surround speaker |
3 L |
| H4/57 |
Right rear surround speaker |
3 L |
| H4/6 |
Right front door speaker |
3 J |
| H4/6 |
Right front door speaker |
6 K |
| LIN E1 |
Steering LIN |
19 K |
| MOST |
Media Oriented System Transport |
6 G |
| MOST |
Media Oriented System Transport |
6 F |
| N40/3 |
Amplifier for sound system |
3 F |
| N40/9 |
Subwoofer amplifier |
3 C |
| N73 |
EIS [EZS] control unit |
15 E |
| N80 |
Steering column module |
20 G |
| S110 |
Left multifunction steering wheel button group |
17 J |
| S110s1 |
Scroll forward/back button |
14 K |
| S110s3 |
System selection button |
14 K |
| S111 |
Right multifunction steering wheel button group |
18 J |
| U500 |
Not valid for Sound System |
5 J |
